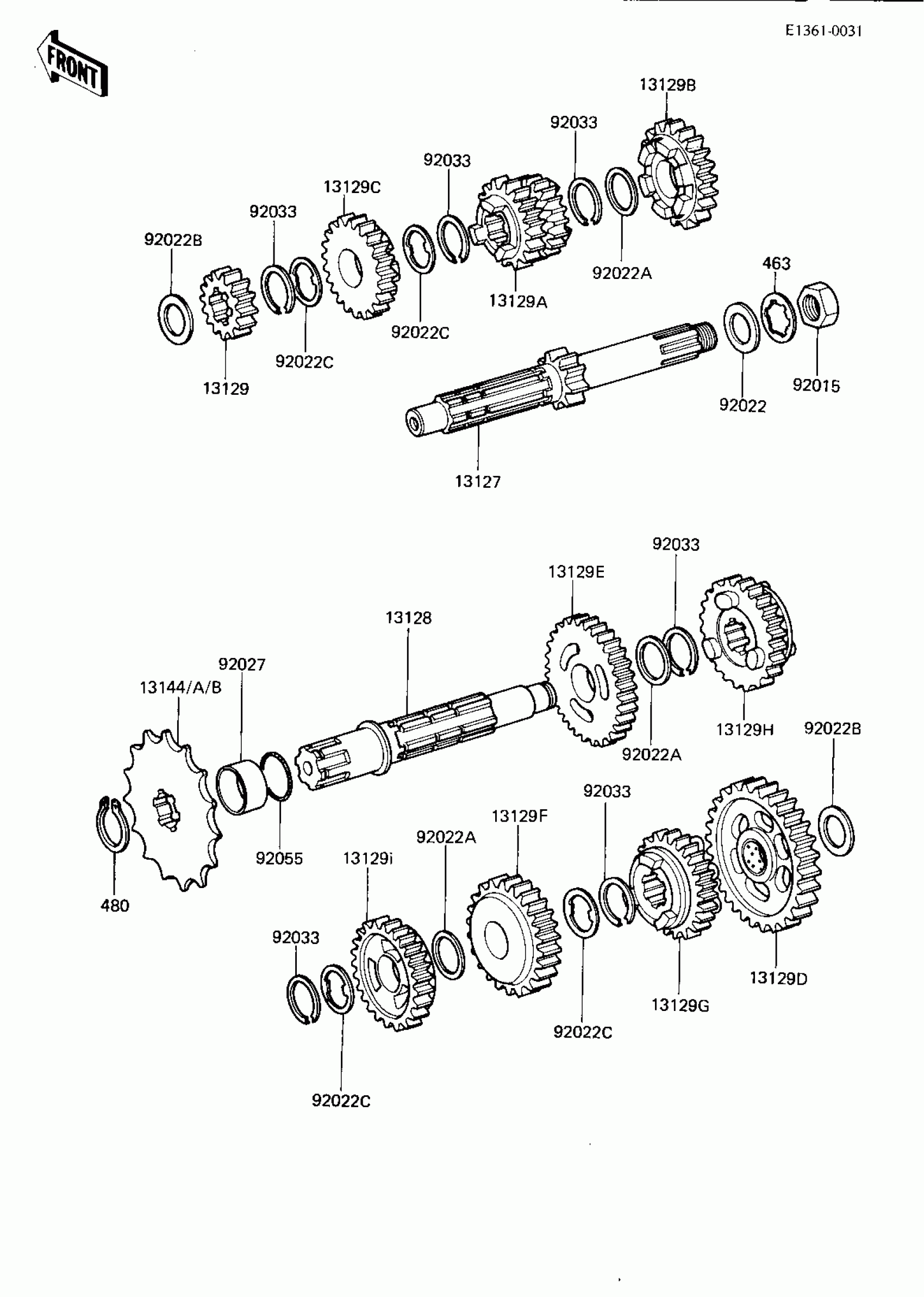

Kawasaki KDX175 TRANSMISSION ('81-'82 A2/A3) Diagram

#

Description
Price

13127

SHAFT,DRIVE

13127-1026

Unavailable

13128

SHAFT,OUTPUT

13128-1026

Unavailable

13129

2ND GEAR,DRIVE SHAFT

13129-1181

Unavailable

13129A

3RD&4TH GEAR,DRIVE S

13129-1182

Unavailable

13129B

5TH GEAR,DRIVE SHAFT

13129-1183

Unavailable

13129C

TOP GEAR,DRIVE SHAFT

13129-1184

Unavailable

13129D

LOW GEAR,OUTPUT SHAF

13129-1185

Unavailable

13129E

2ND GEAR,OUTPUT SHAF

13129-1186

Unavailable

13129F

3RD GEAR,OUTPUT SHAF

13129-1187

Unavailable

13129G

5TH GEAR,OUTPUT SHAF

13129-1189

Unavailable

13129H

TOP GEAR,OUTPUT SHAF

13129-1190

Unavailable

13129I

GEAR-TRANSMISSION SP

13129-1324

Unavailable

13144

SPROCKET-OUTPUT,11T

13144-1036

Unavailable

13144A

SPROCKET-OUTPUT,12T

13144-1049

Unavailable

13144B

SPROCKET-OUTPUT,13T

13144-1050

Unavailable

92015

NUT 16MM

92016-036

$3.90

92022

WASHER,16.8X32X1.6

92022-1277

Unavailable

92022A

WASHER,22.3X27X0.5

92022-198

$5.52

92022B

WASHER,PLAIN

92022-268

Unavailable

92022C

WASHER,TOOTHED,22.5X27X0.5

92024-039

$6.27

92027

COLLAR,ENGINE SPROCK

92027-1244

Unavailable

92033

RING-SNAP,20X25.5X1.2

92033-025

$4.96

92055

RING-O,17.5X1.5

92055-022

$6.22

463

WASHER,TOOTHED,16M/M

463H1600

$4.13

480

CIRCLIP-TYPE-C,20MM

480J2000

$2.71
