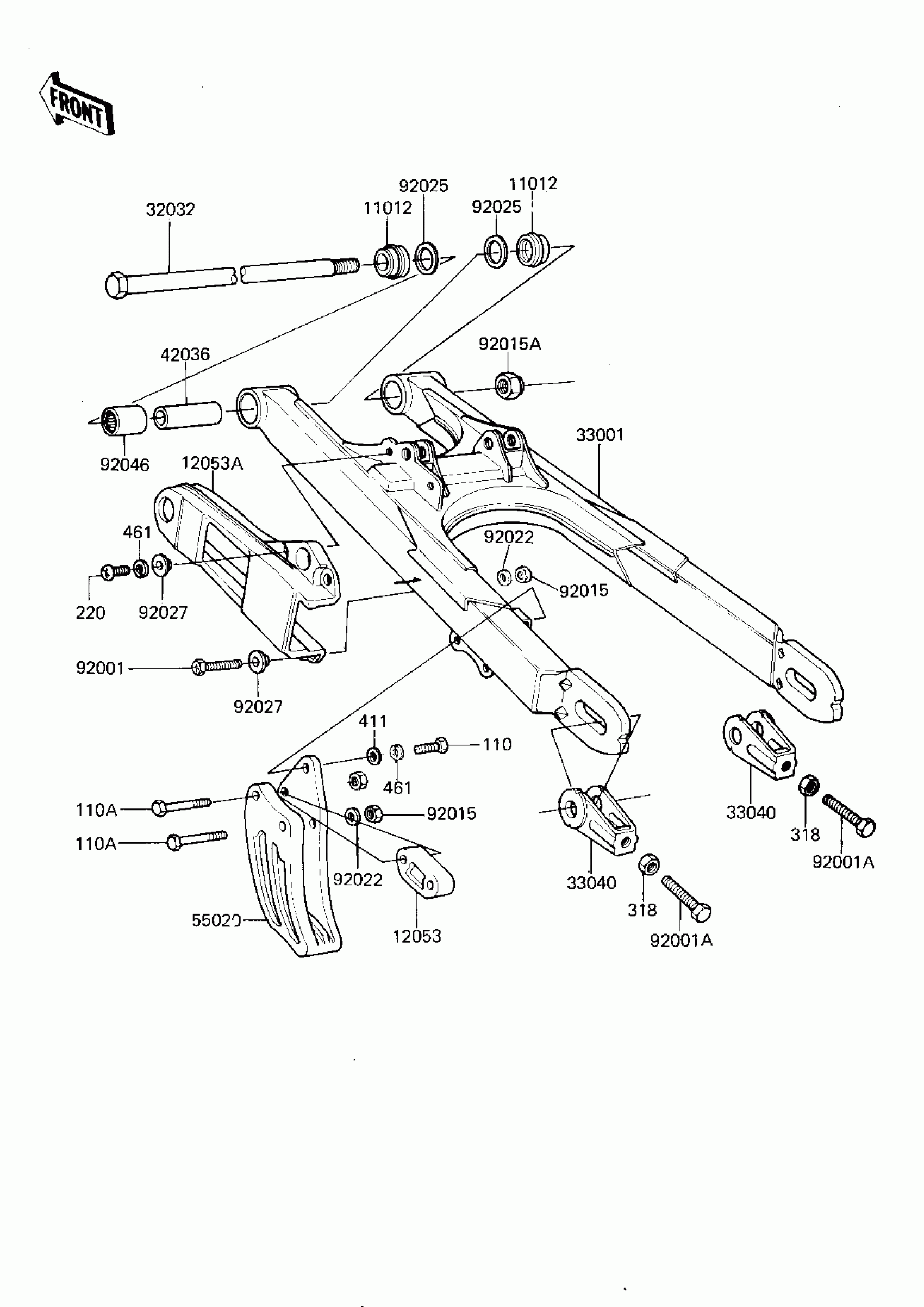

Kawasaki KDX175 SWING ARM ('81-'82 A2/A3) Diagram

Description

Price

11012

CAP,SWING ARM

11012-1099

$29.79

12053

GUIDE,CHAIN,REAR

12053-1039

Unavailable

12053A

GUIDE,CHAIN,FRONT

12053-1043

Unavailable

33001

ARM-COMP-SWING

33001-1069

$257.94

33032

SHAFT-SWING ARM

33032-1020

$119.20

33040

ADJUSTER-CHAIN

33040-043

$28.47

42036

SLEEVE,SWING ARM

42036-1031

Unavailable

55020

GUARD,CHAIN

55020-1038

Unavailable

92001

BOLT,6X20

92001-1091

$3.92

92001A

BOLT,8X50

92001-1399

$9.48

92015

NUT,LOCK,6MM

92019-008

$4.26

92015A

NUT-LOCK,14MM

92019-011

Unavailable

92022

WASHER,6.5X20X1.6

92022-125

$1.40

92025

SHIM,SWING ARM

92025-1116

Unavailable

92027

COLLAR,L=5.1

92027-1260

$6.22

92046

BRG,NEEDLE,HMK2030

92046-1031

Unavailable

110

BOLT-UPSET

112G0625

$3.62

110A

BOLT-UPSET

112G0660

Unavailable

220

SCREW-PAN-CROS,6X14

220B0614

$1.48

318

NUT-HEX-SMALL,8MM

318B0800

$0.59

411

WASHER PLAIN 6MM

411B0600

$2.84

461

WASHER SPRING 6MM

461F0600

$0.69
