Description

Price

1

CAP,SWING ARM

11012-1099

$29.79

2

GUIDE,CHAIN,FRONT

12053-1043

Unavailable

3

SCREW-PAN-CROS,6X14

220B0614

$1.48

4

WASHER SPRING 6MM

461F0600

$0.69

5

ARM-COMP-SWING

33001-1069

$257.94

6

SLEEVE,SWING ARM

42036-1031

Unavailable

7

COLLAR,L=5.1

92027-1260

$6.22

8

SHIM,SWING ARM

92025-1116

Unavailable

9

BRG,NEEDLE,HMK2030

92046-1031

Unavailable

10

SHAFT-SWING ARM

33032-1020

$119.20

11

NUT-LOCK,14MM

92019-011

Unavailable

12

NUT 8MM

312B0800

$0.58

13

ADJUSTER-CHAIN

33040-043

$28.47

14

BOLT,8X46

92001-1179

$18.83

15

BOLT 6X22

112B0622

$3.48

16

BOLT-UPSET

112G0660

Unavailable

17

GUIDE,CHAIN,REAR

12053-1039

Unavailable

18

GUARD,CHAIN

55020-1038

Unavailable

19

NUT,LOCK,6MM

92019-008

$4.26

20

WASHER,6.5X20X1.6

92022-125

$1.40

21

MARK

56018-1157

Unavailable

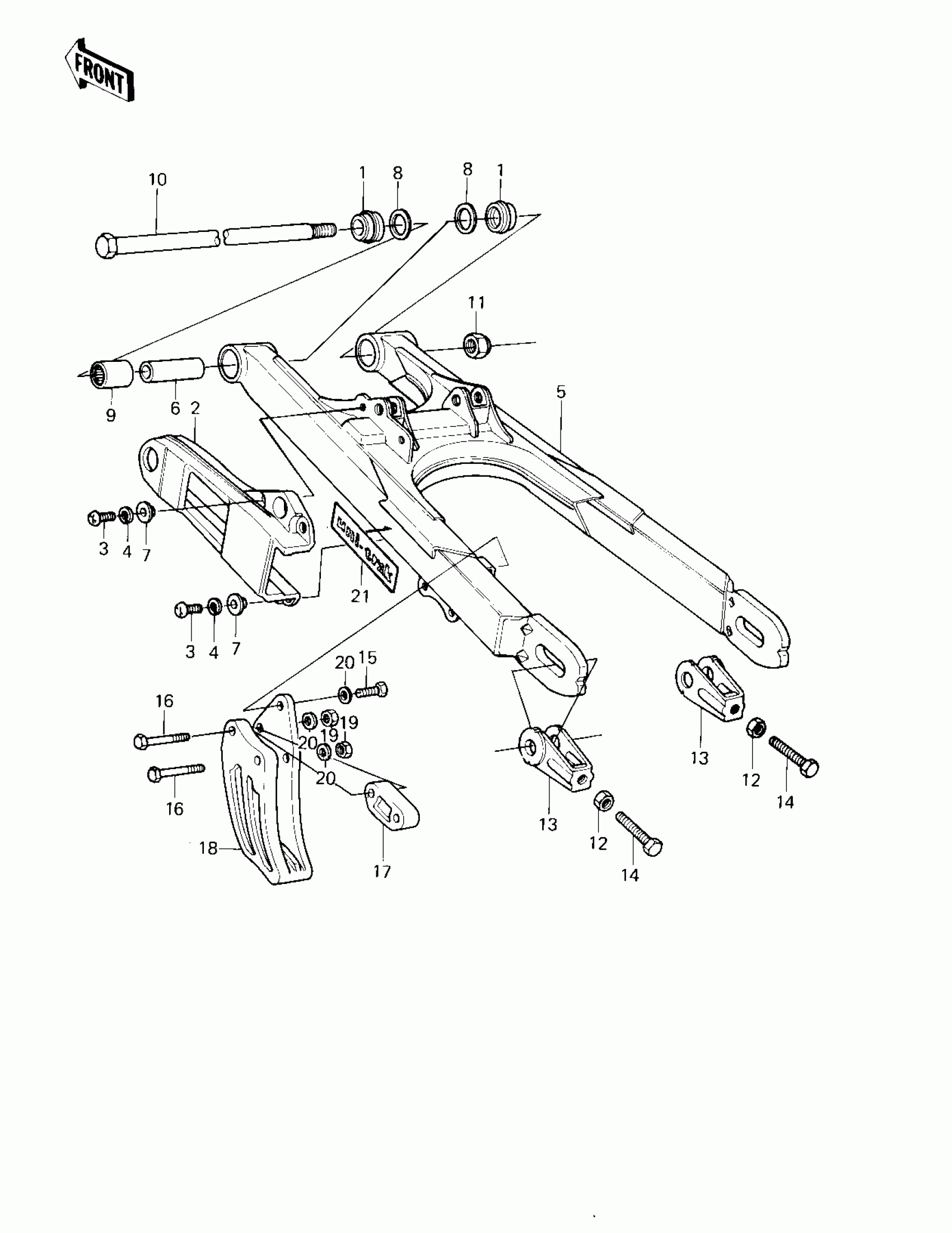

Kawasaki KDX175 SWING ARM ('80 A1) Diagram

CAP,SWING ARM

GUIDE,CHAIN,FRONT

SCREW-PAN-CROS,6X14

WASHER SPRING 6MM

ARM-COMP-SWING

SLEEVE,SWING ARM

COLLAR,L=5.1

SHIM,SWING ARM

BRG,NEEDLE,HMK2030

SHAFT-SWING ARM

NUT-LOCK,14MM

NUT 8MM

ADJUSTER-CHAIN

BOLT,8X46

BOLT 6X22

BOLT-UPSET

GUIDE,CHAIN,REAR

GUARD,CHAIN

NUT,LOCK,6MM

WASHER,6.5X20X1.6

MARK
