Description

Price

1

CAP,SUSPENSION ARM

11012-1117

Unavailable

2

BOLT,HEX HEAD,12X55

113P1255A

$6.40

3

NUT-HEX-FINE

315B1200

$0.93

4

ARM,SUSPENSION

39007-1003

$123.08

5

ROD-ASSY,UNITRK

46102-5001

$99.20

6

BOOT,BALL JOINT

49006-1045

Unavailable

7

PIN-COTTER,2.5X25

550D2525

$1.26

8

JOINT,BALL,SUSPENSIO

59266-1001

$168.76

9

JOINT,BALL,SUSPENSIO

59266-1002

Unavailable

10

BOLT,HEX HEAD,14X54

92001-1295

Unavailable

11

BOLT,HEX HEAD,14X60

92001-1335

Unavailable

12

BOLT,HEX HEAD,12X40

92001-1306

Unavailable

13

BOLT,HEX HEAD,14X50

92001-1317

Unavailable

14

NUT-LOCK,14MM

92019-011

Unavailable

15

NUT-LOCK,12MM

92019-009

$7.29

16

BUSHING,SUSPENSION A

92028-1087

Unavailable

17

SHOCK ABSBR RR

45014-1052

$316.82

18

BOOT,BALL JOINT

49006-1046

Unavailable

19

WASHER-PLAIN-SMALL,14MM

410B1400

$2.01

20

SPRING, RR SHOCK STD

92081-1348

$212.44

20

SPRING,REAR SHOCK

92081-1235

Unavailable

20

SPRING,REAR SHOCK

92081-1236

Unavailable

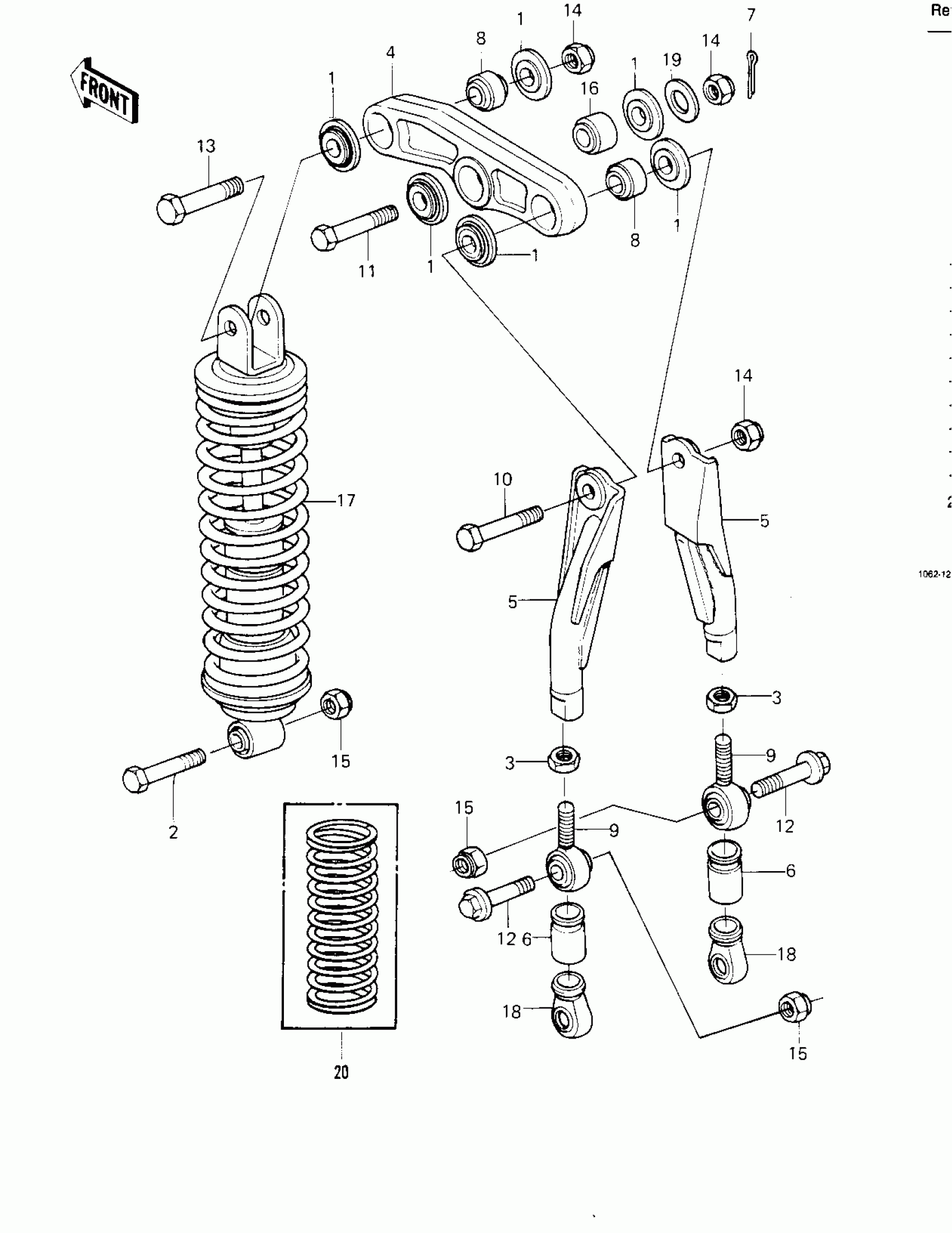

Kawasaki KDX175 REAR SUSPENSION ('80 A1) Diagram

CAP,SUSPENSION ARM

BOLT,HEX HEAD,12X55

NUT-HEX-FINE

ARM,SUSPENSION

ROD-ASSY,UNITRK

BOOT,BALL JOINT

PIN-COTTER,2.5X25

JOINT,BALL,SUSPENSIO

JOINT,BALL,SUSPENSIO

BOLT,HEX HEAD,14X54

BOLT,HEX HEAD,14X60

BOLT,HEX HEAD,12X40

BOLT,HEX HEAD,14X50

NUT-LOCK,14MM

NUT-LOCK,12MM

BUSHING,SUSPENSION A

SHOCK ABSBR RR

BOOT,BALL JOINT

WASHER-PLAIN-SMALL,14MM

SPRING, RR SHOCK STD

SPRING,REAR SHOCK

SPRING,REAR SHOCK
