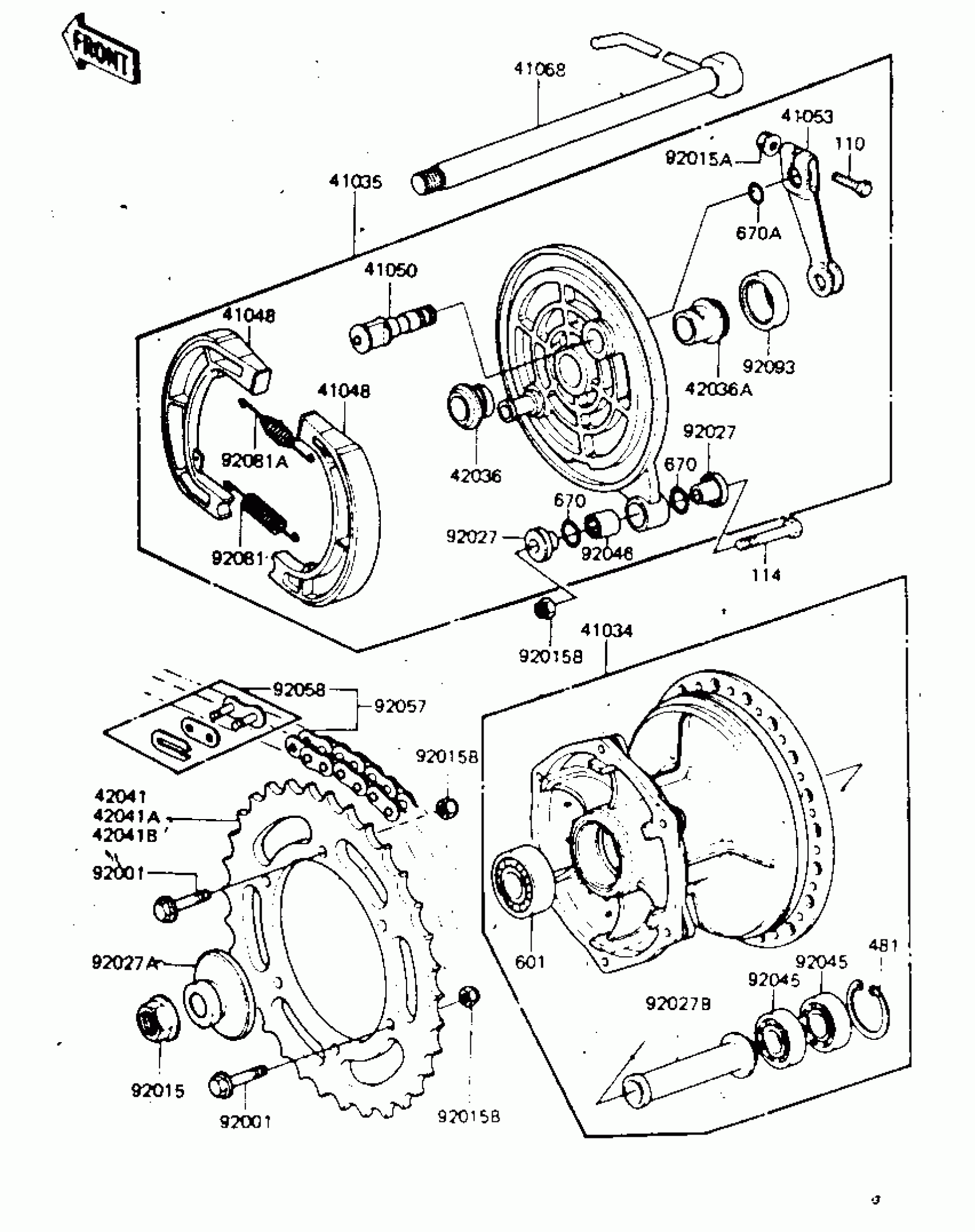

Kawasaki KDX175 REAR HUB/BRAKE/CHAIN ('81-'82 A2/A3) Diagram

#

Description
Price

41034

DRUM-ASSY,RR BRK

41034-1017

$449.32

41035

PANEL-ASY,RR BRK

41035-1071

$359.81

41048

SHOE-BRAKE

41048-1016

$38.07

41050

CAM SHAFT,RR BRAKE

41050-1017

Unavailable

41053

LEVER-BRAKE CAM

41053-1019

Unavailable

41068

AXLE,REAR

41068-1043

$54.56

42036

SLEEVE,REAR BRAKE

42036-1009

Unavailable

42036A

SLEEVE,REAR PANEL,R.

42036-1035

$79.01

42041

REAR SPROCKET,47T

42041-1038

$119.67

42041A

REAR SPROCKET,50T

42041-1043

$93.75

42041B

REAR SPROCKET,52T

42041-1044

$218.62

92001

BOLT,HEX HEAD,8X32

92001-1040

Unavailable

92015

NUT,LOCK,16M/M

92015-1013

Unavailable

92015A

NUT,FLANGED,6MM

92015-1078

Unavailable

92015B

NUT,8MM

92015-1134

$8.15

92027

COLLAR,L=11.5

92027-1040

Unavailable

92027A

COLLAR,REAR AXLE

92027-1206

Unavailable

92027B

COLLAR,REAR BRAKE

92027-1207

$45.82

92045

BEARING-BALL,#6003UC3

601B6003U

$22.40

92046

BEARING-NEEDLE,HK1216LL

92046-1009

$18.45

92057

CHAIN,520X118TR

92057-1051

$141.43

92058

JOINT-CHAIN

92058-1051

Unavailable

92081

SPRING,BRAKE SHOE

92081-1766

$8.03

92081A

SPRING,BRAKE SHOE

92081-1550

$9.49

92093

OIL SEAL

92093-1004

Unavailable

110

BOLT-UPSET

112G0630

$1.36

114

BOLT-SMALL-UPSET

115G0835

$4.54

481

CIRCLIP-TYPE-C,35MM

481J3500

$1.96

601

BEARING-BALL,#6004UUC3

601B6004UU

$28.82

670

O RING,11MM

670B2011

$1.28

670A

O RING,12MM

670B2012

$3.23
