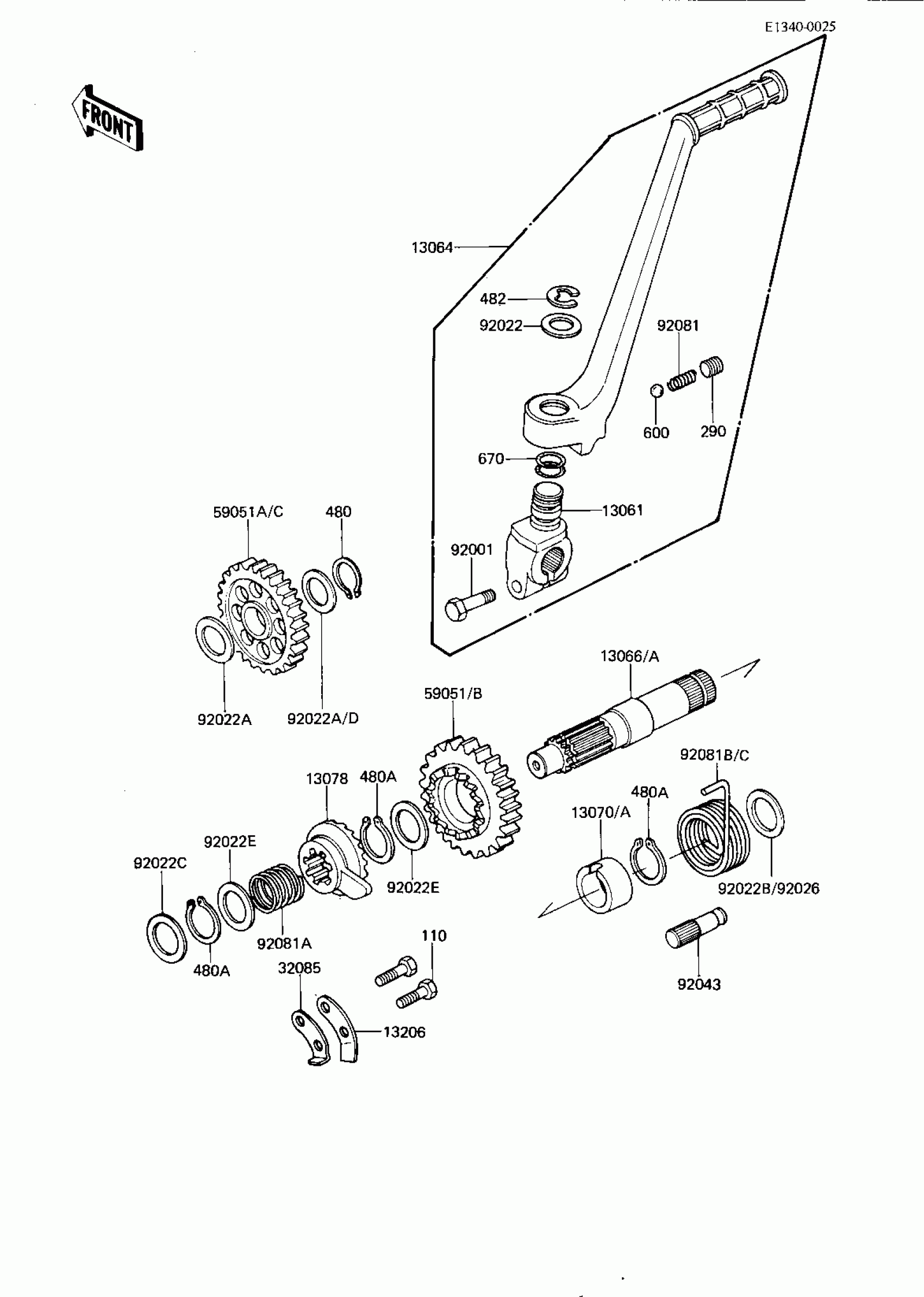

Kawasaki KDX175 KICKSTARTER MECHANISM ('81-'82 A2/A3) Diagram

#

Description
Price

13061

BOSS,KICK PEDAL

13061-5001

Unavailable

13064

LEVER-ASSY-KICK PEDA

13064-5005

Unavailable

13066

SHAFT,KICKSTARTER

13066-1014

Unavailable

13070A

GUIDE,KICK SPRING

13070-1063

$21.09

13078

RATCHET

13078-1052

$66.54

13206

GUIDE-KICK

13206-1059

Unavailable

32085

STOPPER,KICKSTARTER

32085-1016

$9.58

59051B

GEAR-SPUR,KICK,26T

59051-1040

$146.00

59051C

GEAR-SPUR,KICK,30T

59051-1041

$97.19

92001

BOLT,8X28

92001-1042

$6.69

92022

WASHER,15.2X20X1

92022-1019

$5.23

92022C

WASHER,12.3X20X0.5

92022-269

$1.25

92022D

WASHER,THRUST,15MM

92022-279

$10.56

92022E

WASHER,16.8X22X0.5

92022-315

$6.22

92026

SPACER,17.2X23X0.5

92026-1037

$4.31

92043

PIN

92043-102

Unavailable

92081

SPRING,KICK PEDAL

92081-020

$4.26

92081A

SPRING,RATCHET

92081-122

$8.79

92081B

SPRING,KICK

92081-1450

$27.56

110

BOLT-UPSET

112G0618

$1.01

290

SCREW-SET-SOCKET,8X8

290G0808

Unavailable

480

CIRCLIP-TYPE-C,15MM

480J1500

$2.31

480A

CIRCLIP-TYPE-C,16MM

480J1600

$4.31

482

CIR CLIP

482K0100

$0.70

600

BALL-STEEL,1/4

600A0800

$0.62

670

O RING,12MM

670B2012

$3.23
