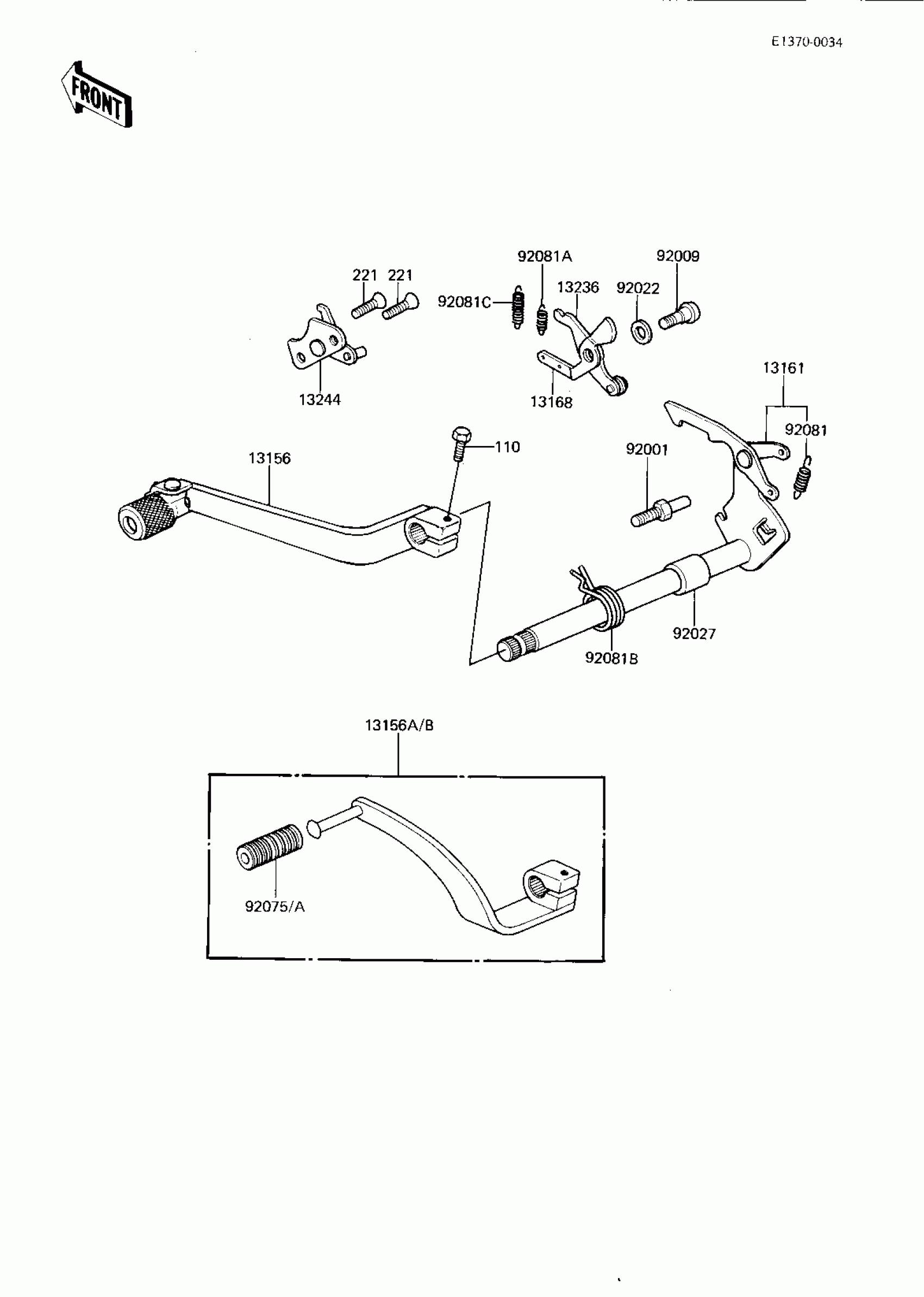

Kawasaki KDX175 GEAR CHANGE MECHANISM ('81-'82 A2/A3) Diagram

Description

Price

13156A

LEVER-CHANGE

13156-1088

Unavailable

13161

LEVER-COMP-CHANGE

13161-1031

Unavailable

13168

LEVER A,GEAR CHANGE

13168-1059

Unavailable

13236

LEVER B,GEAR CHANGE

13236-1023

Unavailable

13244

STOPPER ASSY,CNG DRU

13244-1003

Unavailable

92001

BOLT,RETURN SPRING

92001-1401

$4.69

92009

SCREW,6MM

92011-023

Unavailable

92022

WASHER,PLAIN

92022-1053

$3.55

92027

COLLAR,13X18.3X21.5

92027-1440

$5.52

92075

DAMPER,CHANGE PEDAL

92160-1108

$8.10

92081

SPRING,CHANGE LEVER

92081-076

$5.46

92081A

SPRING,GEAR CHANG LV

92081-1061

Unavailable

92081B

SPRING,TENSION

92081-1129

$9.43

92081C

SPRING

92081-119

Unavailable

110

BOLT-UPSET

112G0625

$3.62

221

SCREW-CSK-CROS,6X14

221B0614

$3.46
