Description

Price

1

DRUM ASSY,GEAR CHANG

13239-1031

Unavailable

2

PLTE,SHIFT DRUM PIN

13142-017

Unavailable

3

PLATE,GEAR CHANGE DR

13169-1225

Unavailable

4

SCREW-PAN-CROS,6X14

220B0614

$1.48

5

PIN,CHANGE DRUM

92043-1060

$3.52

6

SHIFT FORK

13140-1034

Unavailable

7

SHIFT FORK

13140-1035

Unavailable

8

SHIFT FORK

13140-1037

Unavailable

9

ROD-SHIFT,10X90

49047-1009

$16.18

10

STOPPER ASSY,CNG DRU

13244-1003

Unavailable

11

SCREW-CSK-CROS,6X14

221B0614

$3.46

12

BOLT-UPSET

112G0622

$3.48

13

LEVER-CHANGE

13156-1088

Unavailable

14

LEVER-COMP-CHANGE

13161-1031

Unavailable

15

SPRING,CHANGE LEVER

92081-076

$5.46

16

BOLT,RETURN SPRING

92001-1401

$4.69

17

COLLAR,13X18.3X21.5

92027-1440

$5.52

18

SPRING,TENSION

92081-1129

$9.43

19

LEVER A,GEAR CHANGE

13168-1059

Unavailable

20

LEVER B,GEAR CHANGE

13236-1023

Unavailable

21

SCREW,6MM

92011-023

Unavailable

22

WASHER,PLAIN

92022-1053

$3.55

23

SPRING,GEAR CHANG LV

92081-1061

Unavailable

24

SPRING

92081-119

Unavailable

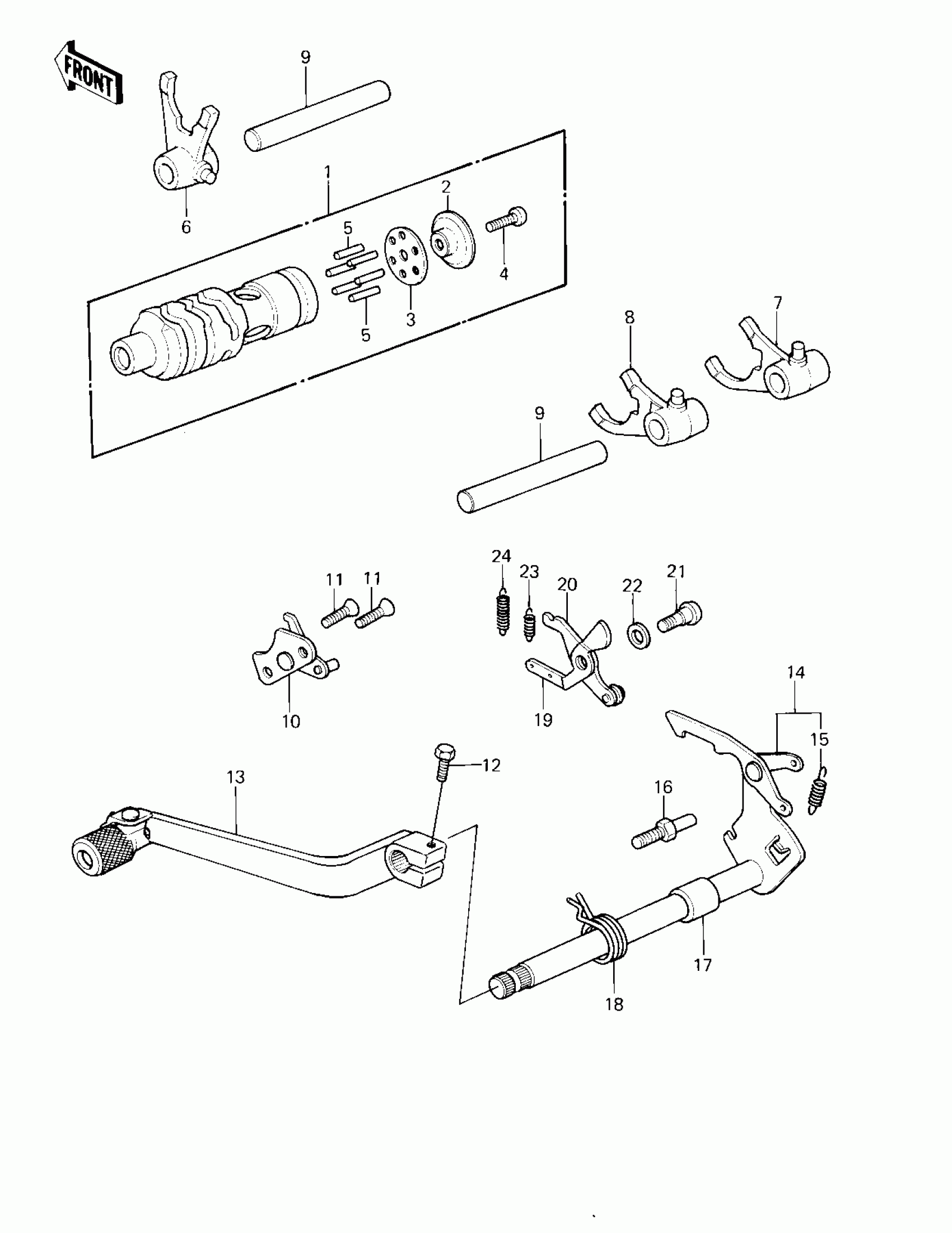

Kawasaki KDX175 GEAR CHANGE MECHANISM ('80 A1) Diagram

DRUM ASSY,GEAR CHANG

PLTE,SHIFT DRUM PIN

PLATE,GEAR CHANGE DR

SCREW-PAN-CROS,6X14

PIN,CHANGE DRUM

SHIFT FORK

SHIFT FORK

SHIFT FORK

ROD-SHIFT,10X90

STOPPER ASSY,CNG DRU

SCREW-CSK-CROS,6X14

BOLT-UPSET

LEVER-CHANGE

LEVER-COMP-CHANGE

SPRING,CHANGE LEVER

BOLT,RETURN SPRING

COLLAR,13X18.3X21.5

SPRING,TENSION

LEVER A,GEAR CHANGE

LEVER B,GEAR CHANGE

SCREW,6MM

WASHER,PLAIN

SPRING,GEAR CHANG LV

SPRING
