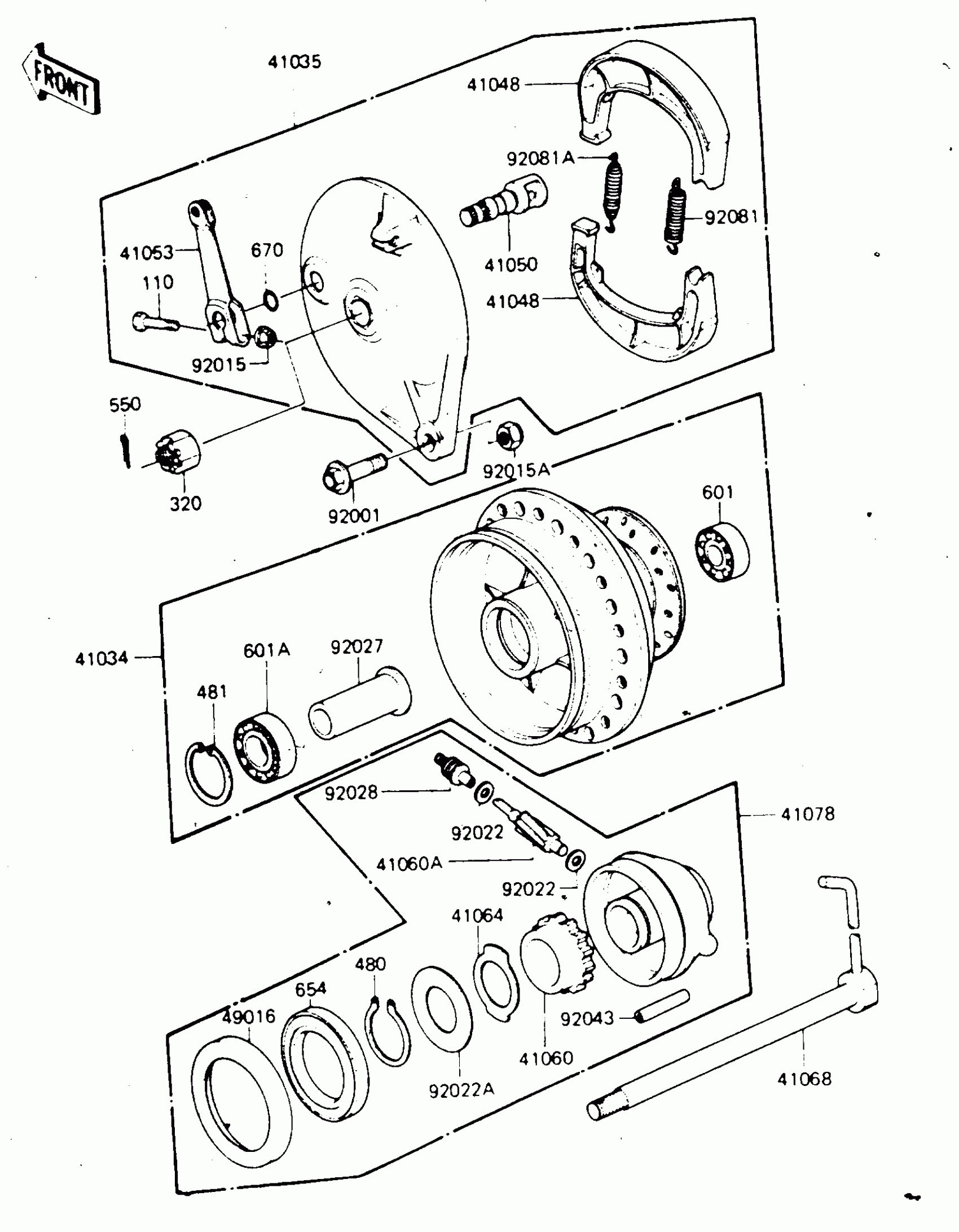

Kawasaki KDX175 FRONT HUB/BRAKE ('81-'82 A2/A3) Diagram
#
Description
Price
41034
DRUM-ASSY,FR BRK
41034-1016
$405.04
41035
PANEL-ASY,FR BRK
41035-1070
$287.90
41048
SHOE-BRAKE
41048-1015
Unavailable
41050
CAM SHAFT,FR BRAKE
41050-1016
$23.56
41053
LEVER,FR BRAKE CAM
41053-1018
$58.15
41060
GEAR,SPEEDOMETER
41059-024
$36.73
41060A
GEAR-METER SCREW,8T
41060-015
Unavailable
41064
RECEIVER,SPEED GEAR
41064-011
$6.09
41068
AXLE,FRONT
41068-1042
$57.40
41078
CASE ASSY,SPEED GEAR
41078-009
$110.26
49016
DUST COVER
41042-013
Unavailable
92001
BOLT,10X45
92001-1182
$10.86
92015
NUT,FLANGED,6MM
92015-1078
Unavailable
92015A
NUT,LOCK,10MM
92019-021
$6.11
92022
WASHER,5.1X9X0.4
41063-001
$4.69
92022A
WASHER,19.5X26X0.8
41065-004
Unavailable
92027
COLLAR,FRONT BEARING
92027-1073
Unavailable
92028
BUSHING,SPEEDOMETER CABLE
41062-005
$19.48
92043
PIN,SPRING
41082-001
$3.92
92081
SPRING,BRAKE SHOE
92081-1766
$8.03
92081A
SPRING,BRAKE SHOE
92081-1550
$9.49
110
BOLT-UPSET
112G0630
$1.36
320
NUT-CASTLE
320G1200
$3.47
480
CIRCLIP-TYPE-C,19MM
480J1900
$1.28
481
CIRCLIP-TYPE-C,37MM
481J3700
$3.04
550
PIN,COTTER,3.2X28
550D3228
$2.79
601
BEARING-BALL,#6201LUC3/2A
601B6201U
$19.40
601A
BEARING-BALL,#6301U
601B6301U
$29.43
654
OIL SEAL
654A405208
$11.50
670
O RING,12MM
670B2012
$3.23
