Description

Price

1

PISTON-ENGINE

13001-1048

Unavailable

2

PIN-PISTON

13002-1004

$7.03

3

RING-SET-PISTON

13008-5034

Unavailable

4

CIRCLIP PISTON PIN

92036-004

$0.65

5

CRANKSHAFT ASSY

13031-1032

Unavailable

6

NEEDLE BEARING,BIG E

13034-1002

Unavailable

7

PIN,CRANK

13035-1001

Unavailable

8

CRANKSHAFT,L.H

13037-1062

Unavailable

9

CRANKSHAFT,R.H

13037-1063

Unavailable

10

SPACER,22.5X37X1.0

92026-011

$9.89

11

CONNECTING ROD ASSY

13044-5017

Unavailable

12

BRG,NEEDLE,KBK162019

13033-1004

Unavailable

13

NUT,12MM

92015-006

$5.59

14

WASHER,LOCK

92022-1063

Unavailable

15

KEY,WOODRUFF

92038-001

$4.96

16

KEY,WOODRUFF

92038-003

$5.37

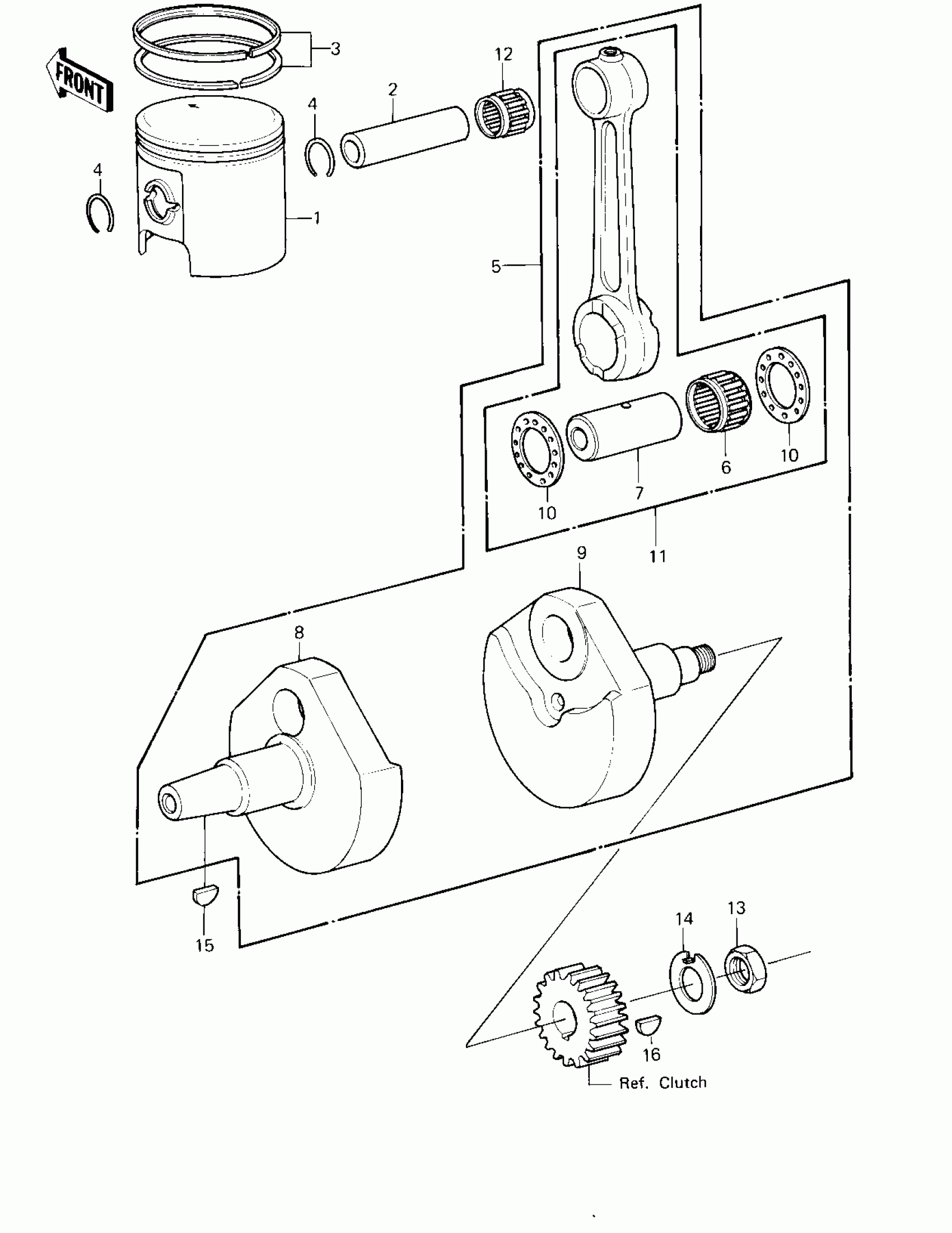

Kawasaki KDX175 CRANKSHAFT/PISTON ('80 A1) Diagram

PISTON-ENGINE

PIN-PISTON

RING-SET-PISTON

CIRCLIP PISTON PIN

CRANKSHAFT ASSY

NEEDLE BEARING,BIG E

PIN,CRANK

CRANKSHAFT,L.H

CRANKSHAFT,R.H

SPACER,22.5X37X1.0

CONNECTING ROD ASSY

BRG,NEEDLE,KBK162019

NUT,12MM

WASHER,LOCK

KEY,WOODRUFF

KEY,WOODRUFF
