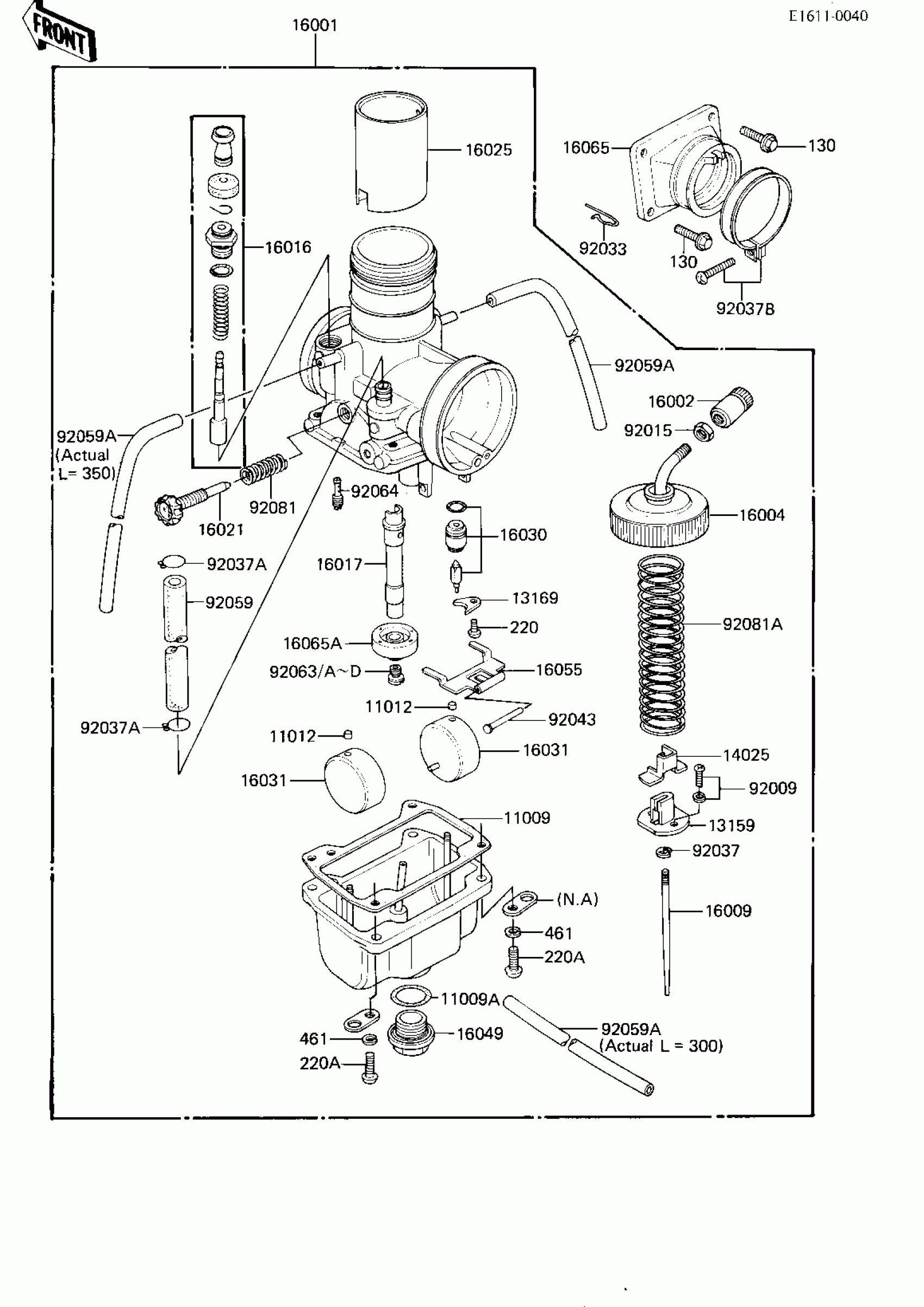

Kawasaki KDX175 CARBURETOR (KDX175-A3) Diagram
#
11009
GASKET,FLOAT CHAMBER
11009-1275
Unavailable
11009A
GASKET,MAIN JET COVER
16038-009
Unavailable
11012
CAP,FLOAT
11012-1047
Unavailable
13159
CONNECTOR,THROTTLE
13159-1010
Unavailable
13169
PLATE, LOCK
13169-1190
Unavailable
14025
COVER,THROTTLE VALVE
14025-1113
Unavailable
16001
CARBURETOR
16001-1478
$264.95
16002
ADJUSTER-CABLE
16002-1006
Unavailable
16004
CAP-CHAMBER,MIXING
16004-1013
Unavailable
16009
NEEDLE-JET,5F53
16009-1136
Unavailable
16016
PLUNGER,STARTER
16016-1026
Unavailable
16017
JET-NEEDLE,R-2
16017-1128
$66.91
16021
SCREW,THROTTLE STOP
16021-1034
Unavailable
16025
VALVE-THROTTLE,CA3.0
16025-1063
$91.78
16030
VALVE-FLOAT,3.3
16030-1020
Unavailable
16031
FLOAT
16031-029
$64.25
16049
COVER-MAIN JET
16049-006
Unavailable
16055
ARM-FLOAT
16055-009
Unavailable
16065
HOLDER-CARBURETOR
16065-1049
Unavailable
16065A
HOLDER-CARBURETOR
16065-1052
Unavailable
92009
SCREW,3X8
92009-1132
Unavailable
92015
NUT,CABLE ADJUST LOCK
16003-004
$7.34
92033
RING-SNAP
92036-018
$3.89
92037
CLAMP,E-TYPE
16008-010
$9.21
92037A
CLAMP,CARB CONECT HOS
92037-056
$6.60
92037B
CLAMP,CARBURETOR HOLD
92037-1484
Unavailable
92043
PIN,FLOAT
16032-008
$6.57
92059
HOSE,FUEL,6.5OX11.5O
92059-1026
Unavailable
92059A
TUBE,3.5X6.5X410
92059-1142
Unavailable
92063
MAIN JET,#160R
92063-1018
Unavailable
92063A
MAIN JET,#162.5R
92063-1019
Unavailable
92063B
MAIN JET,#155R
92063-1025
Unavailable
92063C
MAIN JET,#157.5R
92063-1026
Unavailable
92063D
JET-MAIN NO 152.5R
92063-121
$10.41
92064
JET-PILOT,#20
92064-021
$17.00
92081
SPRING,THRTL STP SCRW
92081-1200
$9.28
92081A
SPRING,THROTTLE VALVE
92081-1432
Unavailable
130
BOLT-FLANGED,6X20
130G0620
$1.69
220
SCREW PAN HEAD 4X6
220B0406
$1.67
220A
UNAVAILABLE IN PRICE BOOK
214B0516A
Unavailable
461
WASHER SPRING 5MM
461F0500
$0.69
