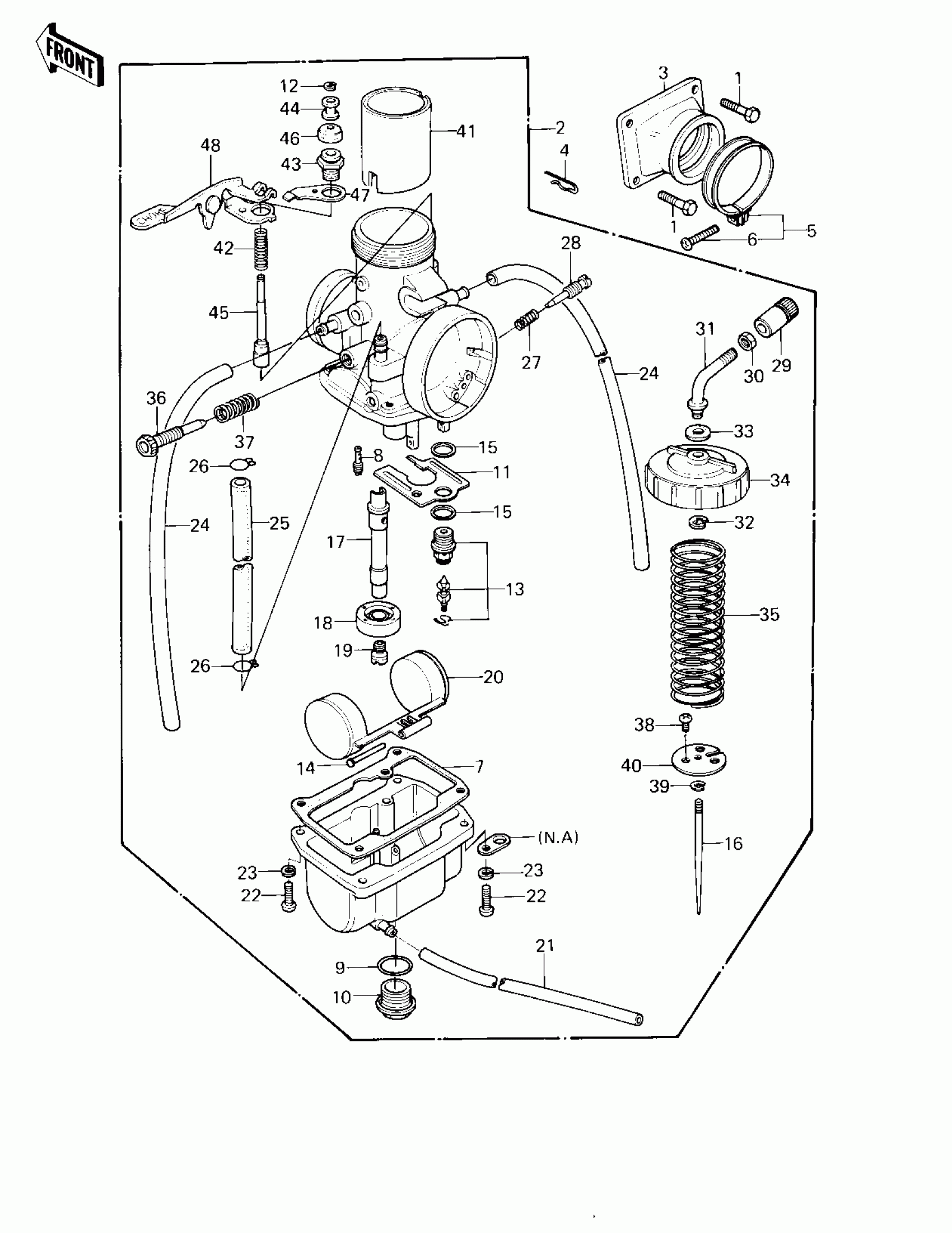

Kawasaki KDX175 CARBURETOR ('80 A1) Diagram
#
1
BOLT-UPSET
112G0625
$3.62
2
CARBURETOR ASSY
16001-1250
Unavailable
3
HOLDER,CARBURETOR
16065-1007
Unavailable
4
RING-SNAP
92036-018
$3.89
5
CLAMP-INLET PIPE
92037-061
Unavailable
6
SCREW,PAN HEAD
92011-037
Unavailable
7
GASKET,FLOAT CHAMBER
11009-1079
Unavailable
8
JET-PILOT NO 40
92064-024
$22.86
9
GASKET,MAIN JET COVER
16038-009
Unavailable
10
COVER-MAIN JET
16049-006
Unavailable
11
PLATE,FLOAT CHAMBER
11009-1080
Unavailable
12
CIRCLIP
16076-003
$8.92
13
FLOAT VALVE ASSY
16030-022
Unavailable
14
PIN,FLOAT
16032-008
$6.57
15
GASKET,FLOAT VALVE
11009-1076
Unavailable
16
JET NEEDLE,6DH7
16009-1063
Unavailable
17
NEEDLE JET,Q-4
16017-1060
$34.25
18
HOLDER,NEEDLE JET
16065-1017
$37.32
19
MAIN JET,#A137.5
92063-1087
Unavailable
19
JET-MAIN NO 132.5R
92063-103
Unavailable
19
MAIN JET NO 135R
92063-104
Unavailable
19
MAIN JET,#140A
92063-116
Unavailable
19
JET-MAIN NO 142.5R
92063-117
Unavailable
20
FLOAT ASSY
16031-025
Unavailable
21
HOSE,OVERFLOW
92059-1025
$21.68
22
SCREW PAN HEAD 5X16
220B0516A
$2.06
23
WASHER SPRING 5MM
461F0500
$0.69
24
TUBE,3.5X6.5X290,BRTH
92059-1017
Unavailable
25
HOSE,6.5X11.5X240
92059-1084
$21.68
26
CLAMP,CARB CONECT HOS
92037-056
$6.60
27
SPRING,PILOT AIR SCREW
16022-007
$8.13
28
SCREW
16014-006
$17.15
29
ADJUSTER-CABLE
16002-1006
Unavailable
30
NUT,CABLE ADJUST LOCK
16003-004
$7.34
31
GUIDE,CABLE
13070-1010
Unavailable
32
CLAMP,CABLE GUIDE
16008-011
Unavailable
33
GASKET,CABLE GUIDE
11009-1191
Unavailable
34
TOP,MIXING CHAMBER
16004-1003
$33.88
35
SPRING-THROTTLE VALV
16006-016
Unavailable
36
SCREW,THROTTLE ADJUS
16021-1028
$11.48
37
SPRING,THRTL STP SCRW
92081-1200
$9.28
38
SCREW,4X5
92009-1037
$3.56
39
CLAMP,E-TYPE
16008-010
$9.21
40
SEAT,THROTTLE VALVE
16007-1007
Unavailable
41
VALVE,THROTTLE,CA2.0
16025-1047
$77.81
42
SPRING,STARTER PLUG
16013-008
Unavailable
43
CAP,PLUNGER
16012-016
Unavailable
44
COLLAR
16073-014
$10.47
45
PLUNGER ASSY,STARTER
16016-1014
Unavailable
46
CAP,STARTER PLUNGER
16039-015
$6.88
47
SPRING,STATER LEVER
16013-009
$6.00
48
LEVER,STARTER
13168-1066
Unavailable
