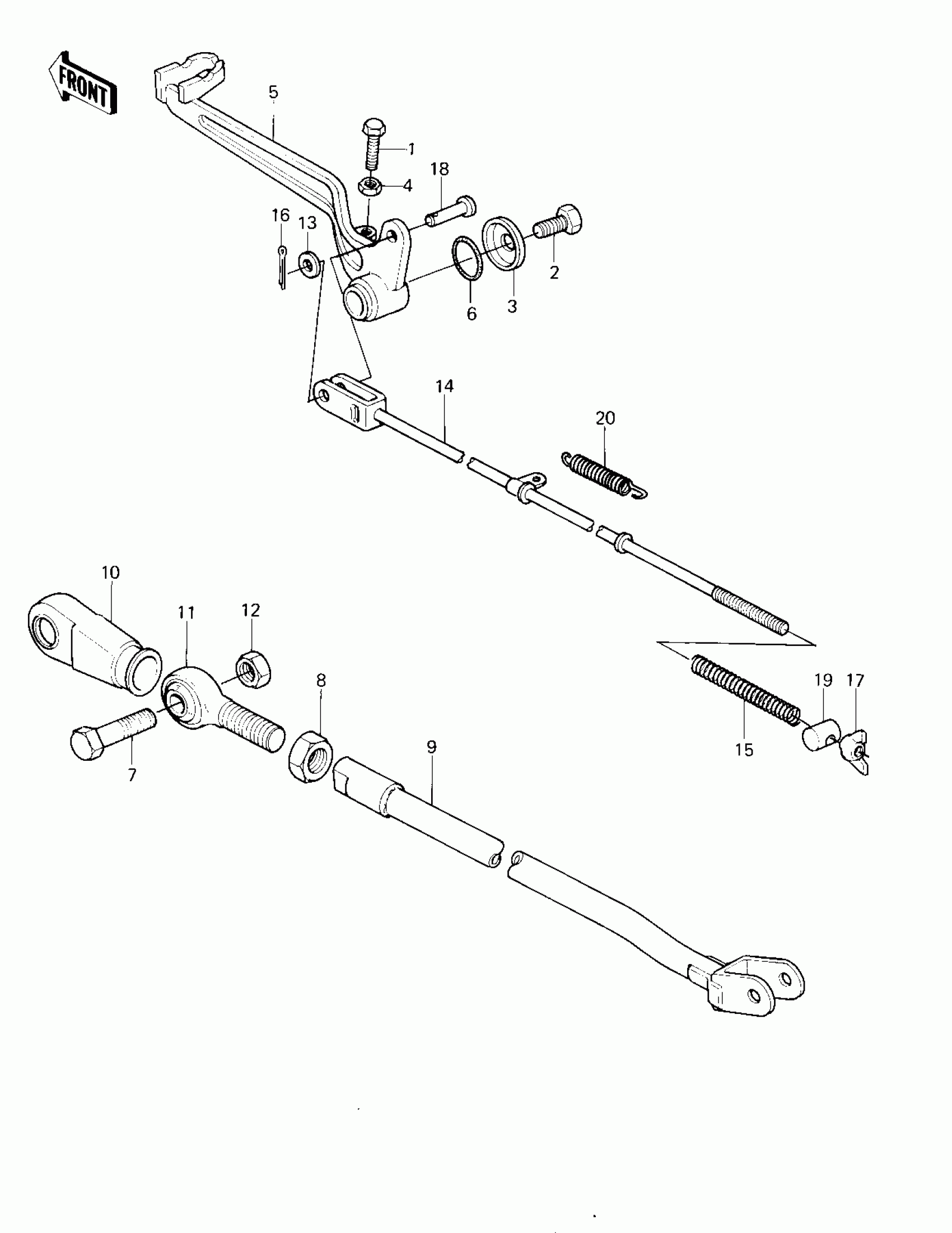

Kawasaki KDX175 BRAKE PEDAL/TORQUE LINK ('80 A1) Diagram

#

Description
Price

1

BOLT-UPSET

112G0625

$3.62

2

BOLT SMALL

114G0812

Unavailable

3

CAP,BRAKE PEDAL FITT

11012-1116

Unavailable

4

NUT 6MM

311B0600

$0.93

5

PEDAL,BRAKE

43001-1043

$71.18

6

O RING,18MM

670B2018

$1.42

7

BOLT,HEX HEAD,12X35

113P1235A

$4.90

8

NUT-HEX-FINE

315B1200

$0.93

9

TORQUE LINK,RR BRAKE

43007-1018

$61.22

10

BOOT,BALL JOINT

49006-1035

Unavailable

11

JOINT,BALL,TORQUE RN

59266-1003

$61.25

12

NUT-LOCK,12MM

92019-009

$7.29

13

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

14

ROD,BRAKE

43011-1019

Unavailable

15

SPRING,BRAKE ROD

43012-001

$4.65

16

PIN COTTER 2.0X15

550D2015

$1.04

17

NUT,WING,6MM

92015-4004

$7.29

18

PIN,6X17

92043-064

$4.69

19

PIN,BRAKE

92043-1024

$10.86

20

SPRING RETURN

92081-1059

Unavailable
