Description

Price

11009

GASKET,EXHAUST PIPE H

11009-1866

$8.25

14024

COVER,MUFFLER

18064-018

Unavailable

16073

INSULATOR

18065-007

$5.59

16073A

INSULATOR-HEAT

18065-009

$4.62

18001

MUFFLER

18001-5116

$258.48

18001A

MUFFLER

18001-5116

$258.48

18069

HOLDER,EX PIPE,BLACK

18069-035-21

Unavailable

49099

BAFFLE TUBE

49099-1027

Unavailable

92022

WASHER-PLAIN

92022-183

$3.92

92027

INSERT-EXHAUST HOLDER

18070-005

Unavailable

92037

CLAMP,CARBURETOR HLDR

92037-178

Unavailable

92093

CONNECTOR,BAFFLETUBE

92093-1042

Unavailable

112

BOLT,6X10

112G0610

$0.58

180

BOLT-UPSET-WS

180Y0635

Unavailable

185

BOLT-UPSET-WSP-SMALL,8X16

185C0816

$4.62

220

SCREW PAN HEAD 6X12

220B0612

Unavailable

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

463

WASHER LOCK 6MM

463H0600

Unavailable

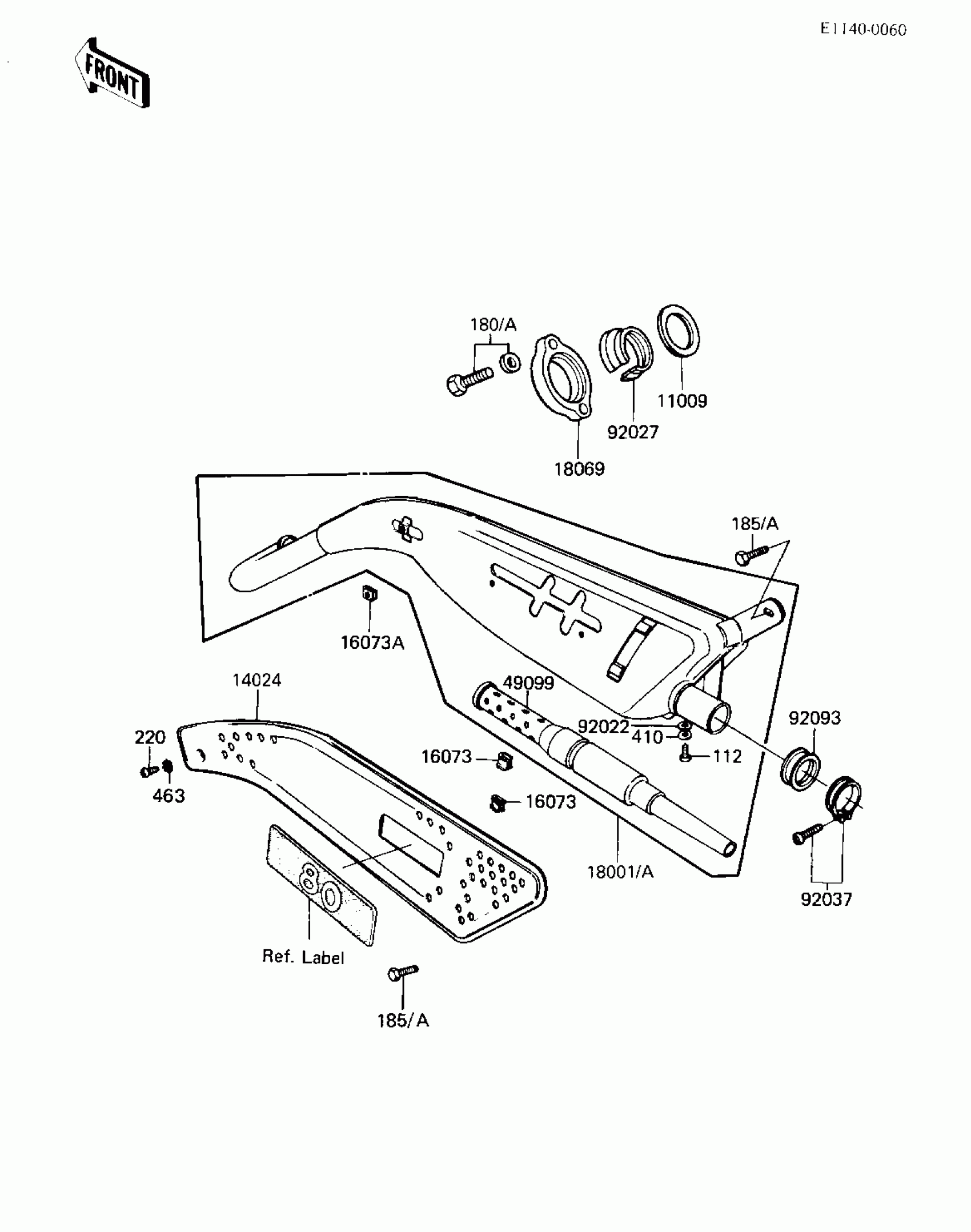

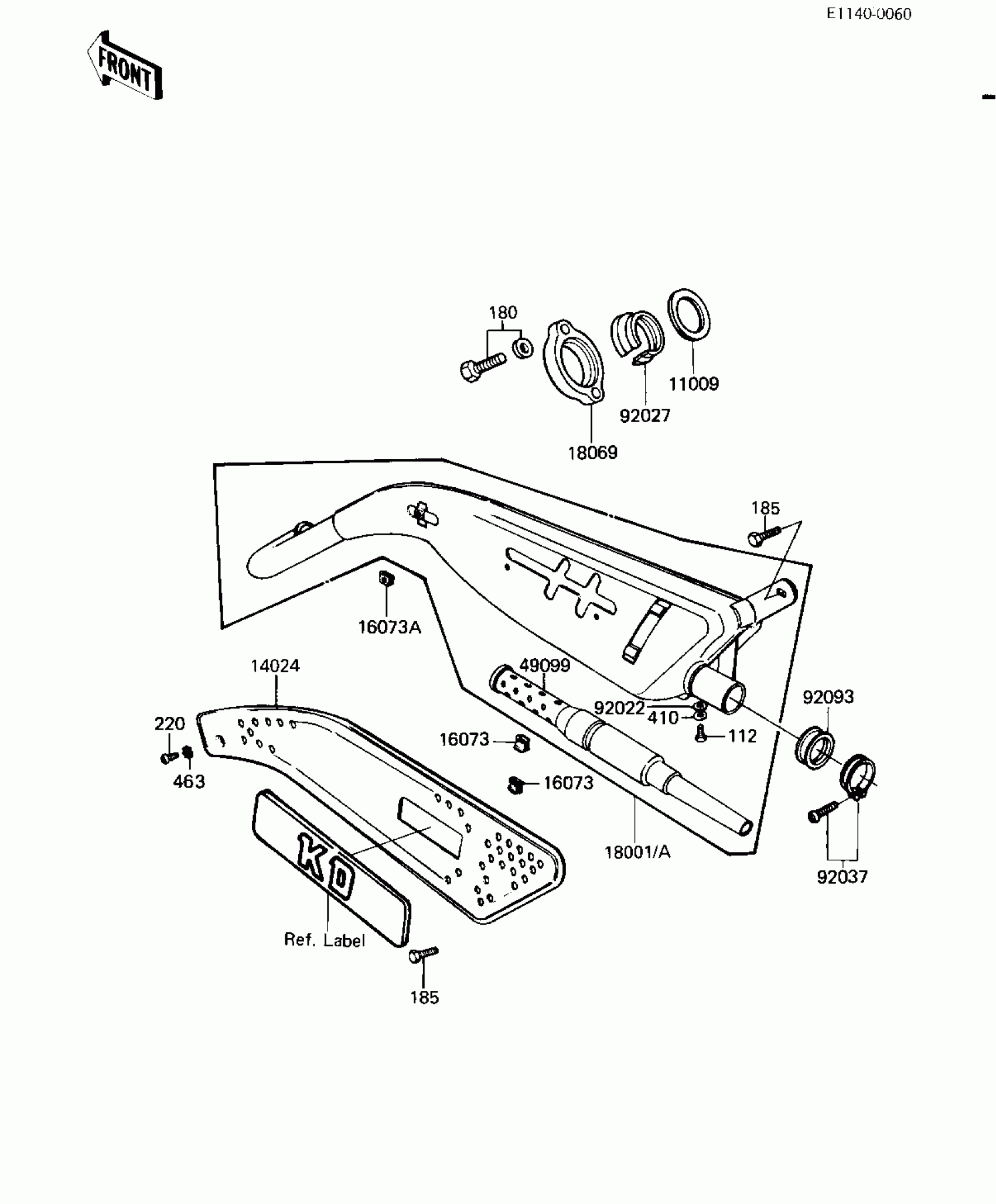

Kawasaki KD80 MUFFLER Diagram

GASKET,EXHAUST PIPE H

COVER,MUFFLER

INSULATOR

INSULATOR-HEAT

MUFFLER

MUFFLER

HOLDER,EX PIPE,BLACK

BAFFLE TUBE

WASHER-PLAIN

INSERT-EXHAUST HOLDER

CLAMP,CARBURETOR HLDR

CONNECTOR,BAFFLETUBE

BOLT,6X10

BOLT-UPSET-WS

BOLT-UPSET-WSP-SMALL,8X16

SCREW PAN HEAD 6X12

WASHER-PLAIN-SMALL,6MM

WASHER LOCK 6MM
