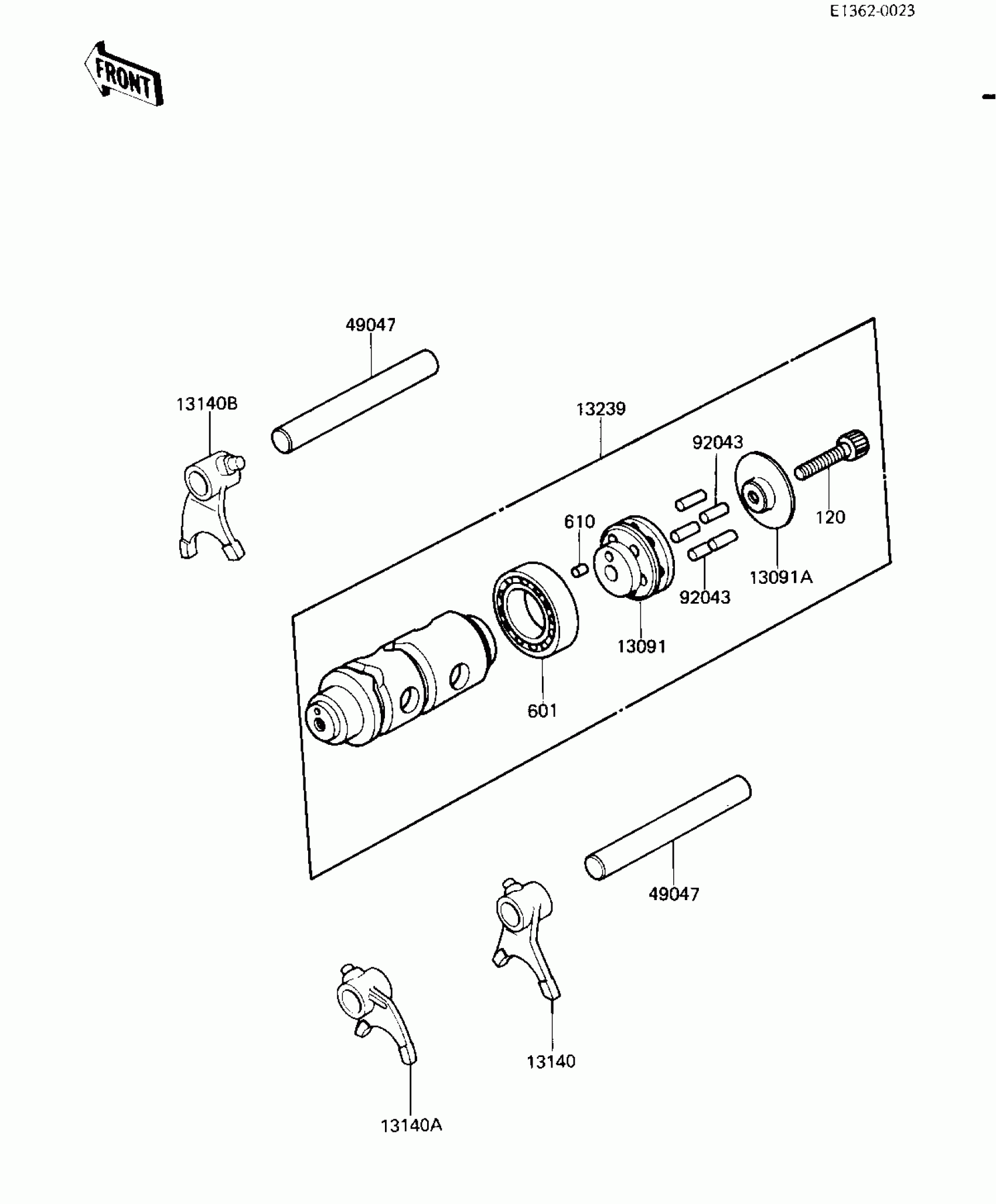

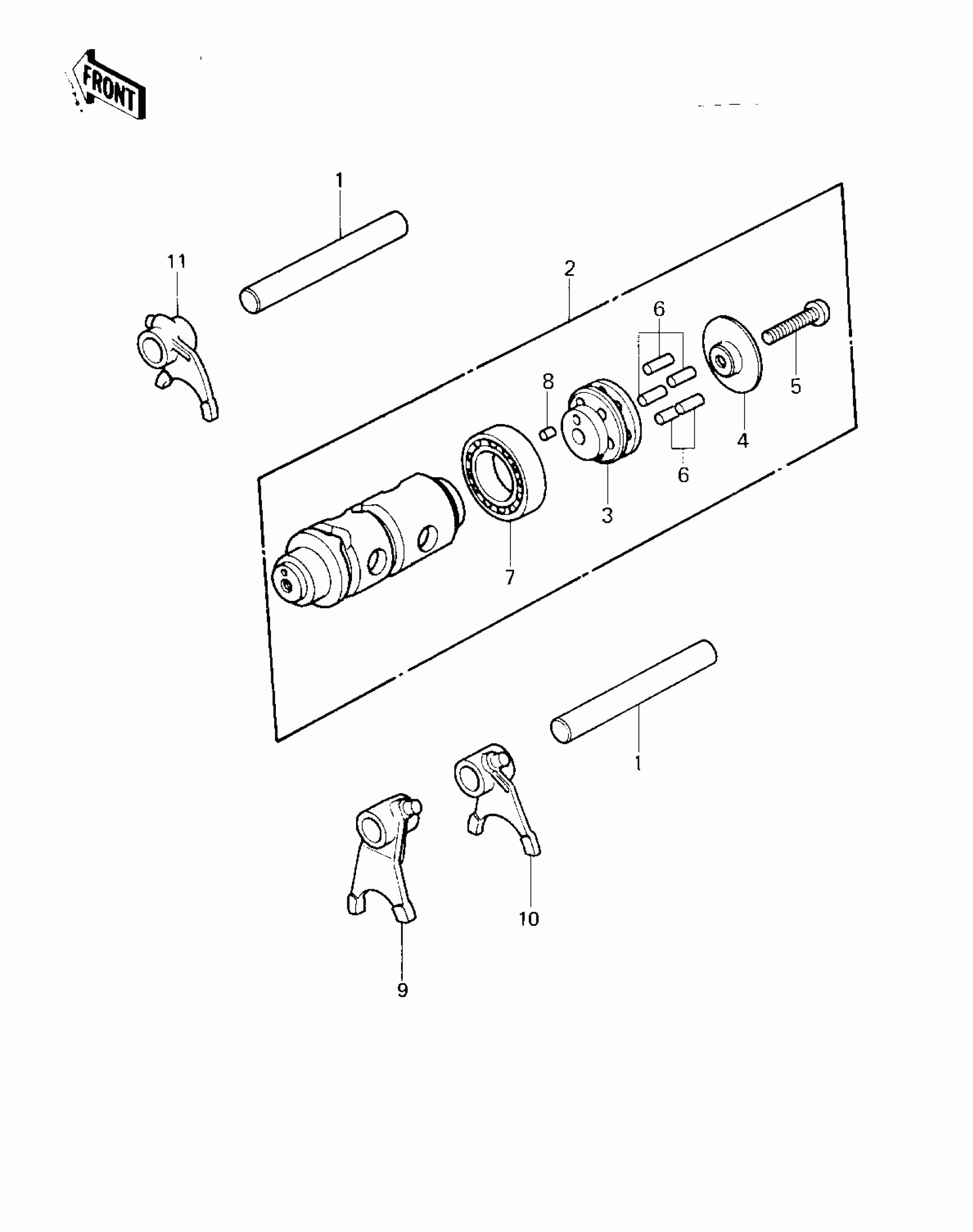

Kawasaki KD80 GEAR CHANGE DRUM & FORKS Diagram

#

Description

Price

1

ROD-SHIFT,10X80

13209-014

Unavailable

2

DRUM-ASSY-CHANGE

13239-5001

Unavailable

2

DRUM-ASSY-CHANGE

13239-1034

Unavailable

3

HOLDER,GEAR CHANG DRM

13091-1059

Unavailable

3

HOLDER,CHANGE DRUM

13091-1077

Unavailable

4

PLATE CHANGE DRUM PIN

13142-008

Unavailable

4

HOLDER,CHANGE DRUM PIN

13142-014

Unavailable

5

SCREW PAN HEAD 6X30

220B0630

Unavailable

5

BOLT-SOCKET,6X30

120P0630

Unavailable

6

PIN,DOWEL,4X14.8

92042-042

Unavailable

7

BEARING-BALL,#6905

92045-036

Unavailable

7

BEARING-BALL,#6004C3

601B6004

Unavailable

8

ROLLER,4X6

610A0406

Unavailable

9

FORK-SHIFT,LOW&2ND

13140-1026

Unavailable

10

FORK-SHIFT,3RD

13140-1027

Unavailable

11

FORK-SHIFT,4TH&TOP

13140-1028

Unavailable
