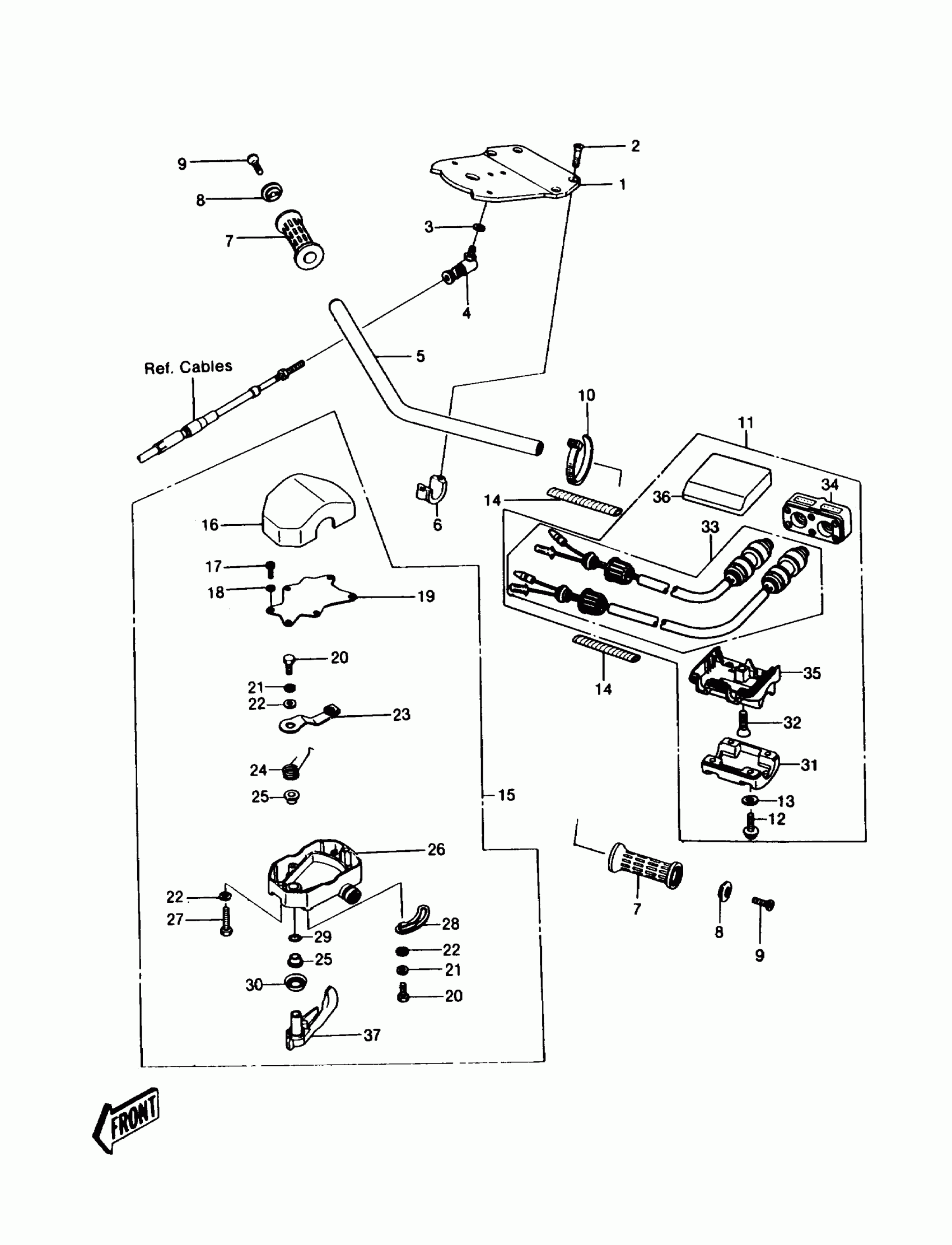

Kawasaki JS550 HANDLEBAR (JS550-A5) Diagram
#
Description
Price
10
BAND,L=149
92072-031
$5.00
11
SWITCH-ASSY
27004-3002
$249.12
12
SCREW-PAN-CROS,5X20
220R0520
$4.72
13
W-PLAIN-S,5MM
410S0500
$1.59
14
TUBE,SPIRAL
92059-3010
$5.54
15
LEVER-ASSY-THROTTLE
39074-3701
$226.26
16
HOUSING-CONTROL,UPP
39063-3701
$29.82
17
BOLT,SOCKET,3X10
92002-3730
$5.46
18
WASHER-SPRING,3MM
461S0300
$0.58
19
COVER,THROTTLE LEVER
14024-3701
Unavailable
20
BOLT,5X10
110R0510
$2.48
21
WASHER-SPRING,5MM
461S0500
$0.49
22
W-PLAIN-S,5MM
410S0500
$1.59
23
ARM,THROTTLE LEVER
21083-3701
$15.65
24
SPRING,THROTTLE LEVER RETURN
92081-3702
$6.52
25
COLLAR,THROTTLE LEVER
92027-3704
Unavailable
26
HOUSING-CONTROL,LWR
39063-3702
Unavailable
27
BOLT,5X25
110R0525
$3.29
28
STOPPER
32085-3706
$6.90
29
O RING,8MM
670B1508
$1.29
30
PACKING,THROTTLE LEVER
43049-3701
$7.69
31
HOLDER,SWITCH
13091-3726
$27.50
32
SCREW-CSK-CROS,6X25
221R0625
$4.45
33
SWITCH,STOP&START
27010-3708
$211.74
34
CASE,FR,SWITCH
32099-3724
Unavailable
35
CASE,LWR,SWITCH
32099-3725
$46.93
36
CASE,UPP,SWITCH
32099-3726
$34.87
37
LEVER-THROTTLE
39075-3702
$41.14
1
PLATE,HANDLEBAR
13169-3004
Unavailable
2
SCREW,8X22
92009-3701
$7.49
3
WASHER-SPRING,6MM
461S0600
$1.07
4
JOINT-BALL
59266-3701
$66.16
5
HANDLE
46003-3703
$130.61
6
CLAMP,HANDLEBAR
92037-503
$16.01
7
GRIP,HANDLEBAR
46075-3709
Unavailable
8
STOPPER
32085-3705
$4.83
9
SCREW,6X16
92009-3703
$4.31
