Description

Price

10

SCREW,4X8

92011-550

$6.30

11

O RING,5MM

670B1505

$3.26

12

BRUSH,(+)

21039-3003

Unavailable

13

HOLDER-ASSY,BRUSH

14079-3002

$224.34

14

BRUSH,(-)

21039-3004

Unavailable

15

SPRING,BRUSH

92081-540

$12.75

16

ARMATURE

21080-3001

$522.47

17

WASHER,SET

92022-3044

$9.57

18

COVER,RR

14025-3027

Unavailable

19

COVER,FR

14025-3028

Unavailable

20

YOKE

49117-3002

$453.37

1

STARTER-ELECTRIC

21163-3003-YR

Unavailable

2

RING-O

92055-516

$8.86

3

RING-O

92055-517

Unavailable

4

GEAR-SPUR

59051-3005

$437.23

5

SPRING,RETURN

92081-541

Unavailable

6

COLLAR,STOPPER,PINION

92027-513

Unavailable

7

RING-SNAP

92036-517

Unavailable

8

SCREW,6X107

92011-549

Unavailable

9

O RING,6MM

670B1506

$1.28

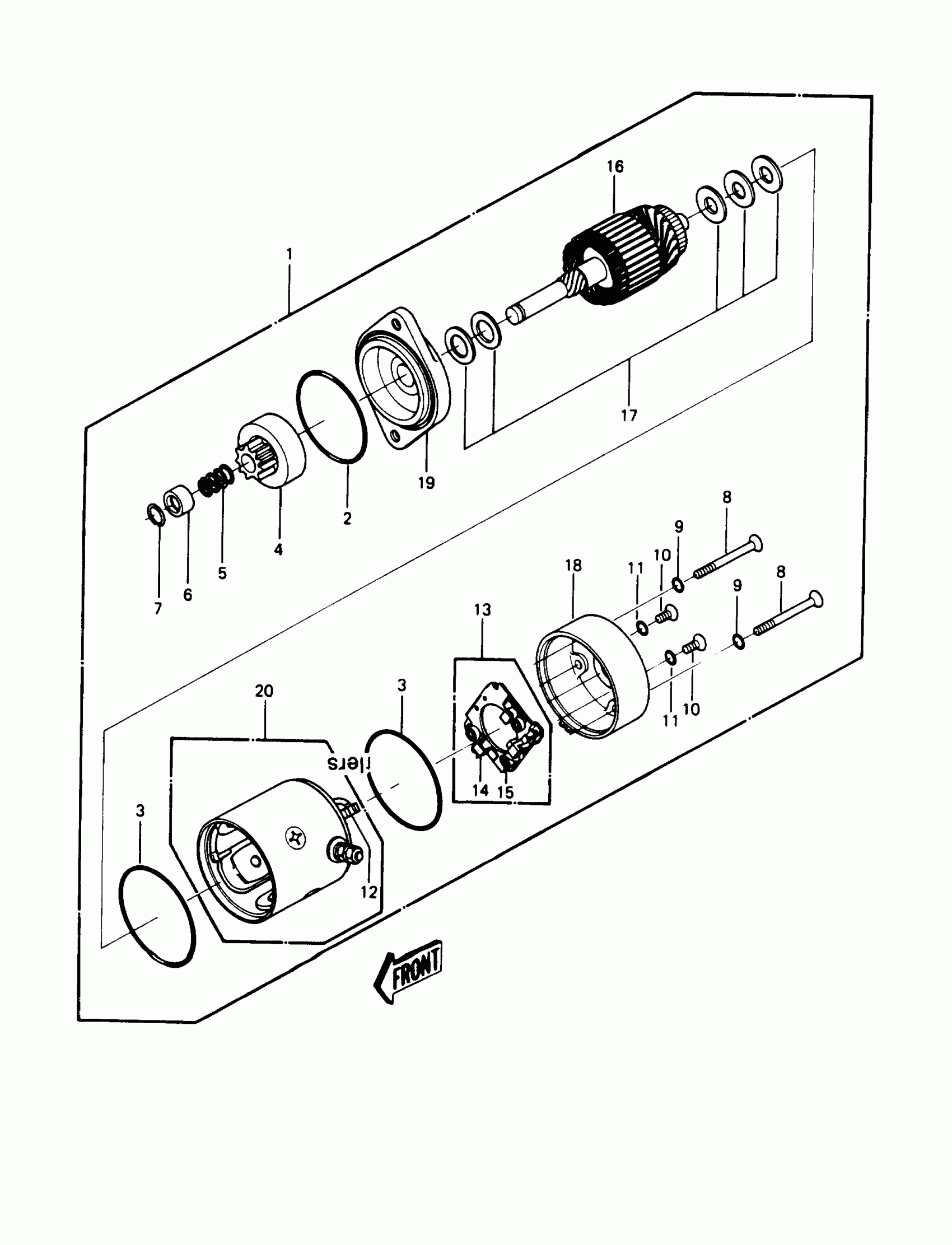

Kawasaki JS440 Starter Motor Diagram

SCREW,4X8

O RING,5MM

BRUSH,(+)

HOLDER-ASSY,BRUSH

BRUSH,(-)

SPRING,BRUSH

ARMATURE

WASHER,SET

COVER,RR

COVER,FR

YOKE

STARTER-ELECTRIC

RING-O

RING-O

GEAR-SPUR

SPRING,RETURN

COLLAR,STOPPER,PINION

RING-SNAP

SCREW,6X107

O RING,6MM
