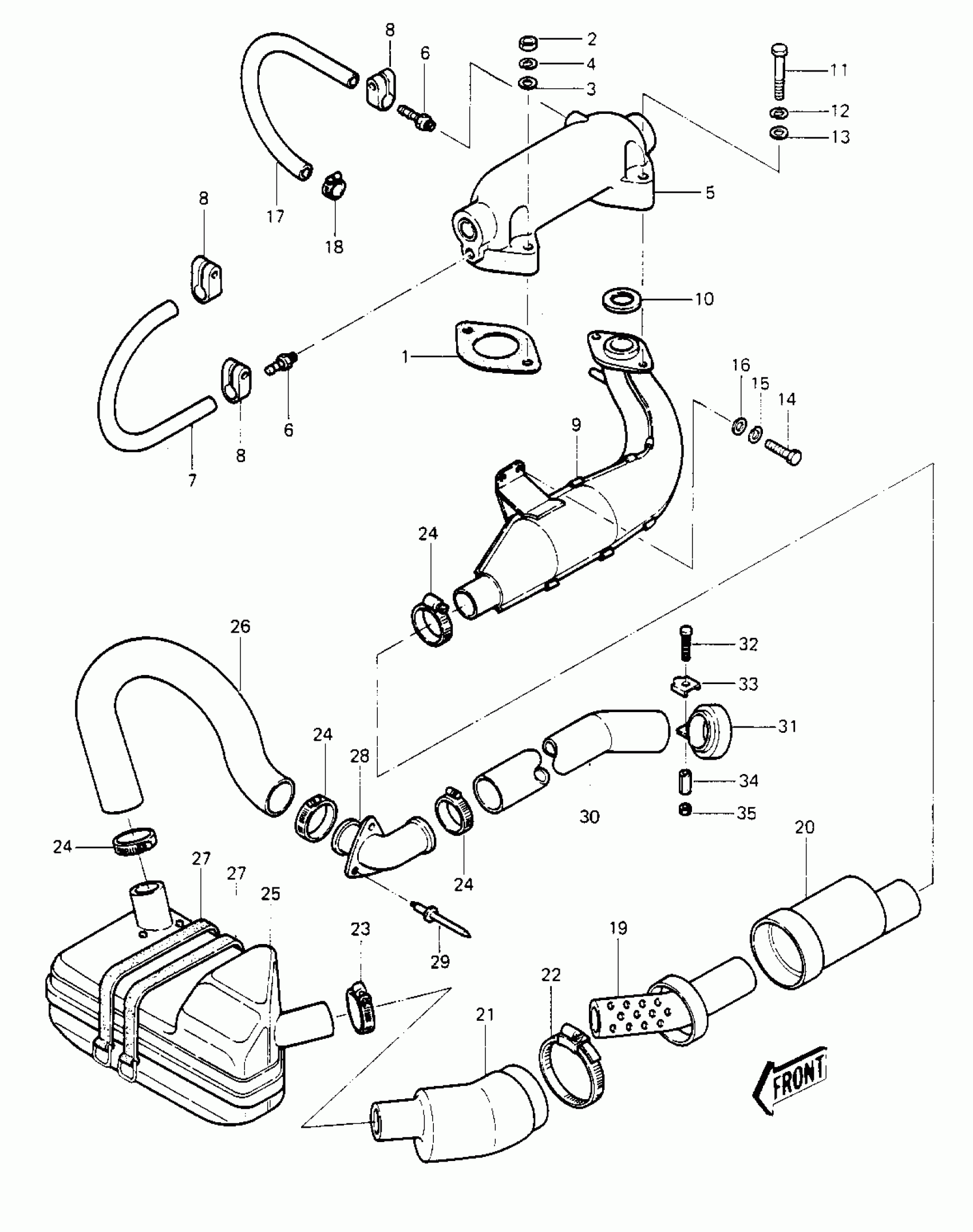

Kawasaki JS440 MUFFLER ('84-'86 JS440-A8/A9/A10) Diagram
#
Description
Price
1
GASKET,EXHAUST
11060-3710
Unavailable
2
NUT-HEX,8MM
311M0800
$0.62
3
WASHER-PLAIN-SMALL,8MM
410S0800
$2.58
4
WASHER SPRING 8MM
461S0800
$0.65
5
PIPE-EXHAUST
18049-3006-YR
$222.30
6
FITTING,HOSE
92005-3001
$10.88
7
TUBE,9X190
92059-3021
Unavailable
8
CLAMP
92037-504
$13.67
9
MUFFLER
18001-520
$499.69
10
GASKET,EXHAUST
11009-3784
Unavailable
11
BOLT,8X45
110R0845
$6.40
12
WASHER SPRING 8MM
461S0800
$0.65
13
WASHER-PLAIN-SMALL,8MM
410S0800
$2.58
14
BOLT,8X20
110R0820
$4.67
15
WASHER SPRING 8MM
461S0800
$0.65
16
WASHER-PLAIN-SMALL,8MM
410S0800
$2.58
17
HOSE
92059-523
$10.51
18
CLAMP
92037-504
$13.67
19
PIPE-EXHAUST
59151-528
$116.78
20
TUBE
92059-542
$130.82
21
TUBE
92059-543
Unavailable
22
CLAMP
92037-541
$10.24
23
CLAMP
92037-506
$5.22
24
CLAMP
92037-509
$5.58
25
MUFFLER-COMP,WATER BOX
49070-3714
Unavailable
26
TUBE,EXHAUST
92059-528
Unavailable
27
BAND
92072-511
Unavailable
28
PIPE-TAIL,TAIL,EXHAUST
59156-506
$145.44
29
RIVET
92039-3701
$1.67
30
TUBE,EXHAUST,TAIL
92059-549
Unavailable
31
CLAMP
92037-545
Unavailable
32
SCREW,6X45
92009-3747
Unavailable
33
WASHER
92095-513
Unavailable
34
NUT,6MM
92015-532
Unavailable
35
NUT-HEX,6MM
311R0600
$0.70
