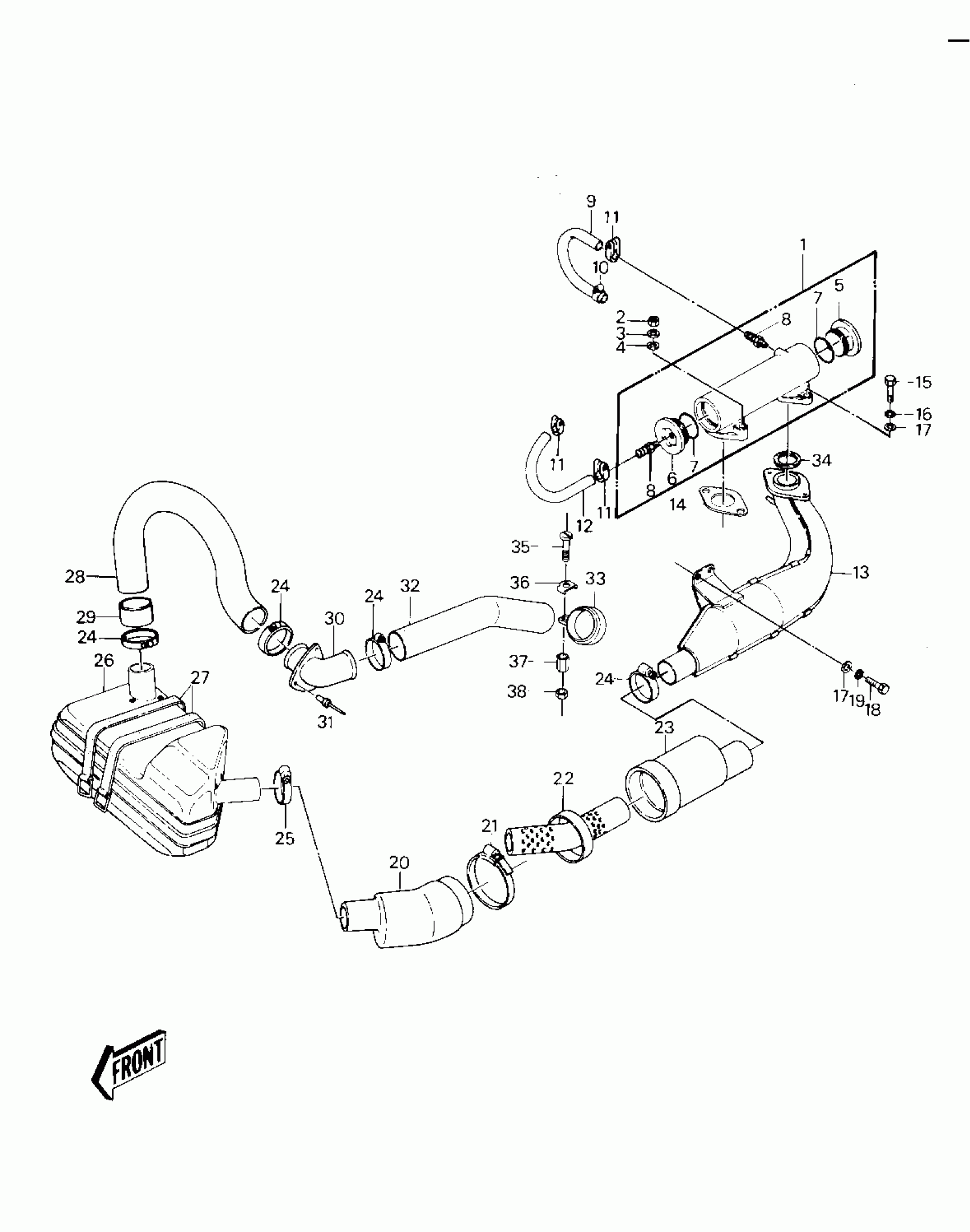

Kawasaki JS440 MUFFLER ('77-'78 A1/A1A/A2) Diagram
#
1
PIPE-EXHAUST
18049-3006-YR
Unavailable
2
NUT-HEX,8MM
311M0800
Unavailable
2
NUT-HEX,8MM
311M0800
Unavailable
3
WASHER SPRING 8MM
461S0800
Unavailable
4
WASHER-PLAIN-SMALL,8MM
410S0800
Unavailable
5
PLUG,EXHAUST(1)
92066-501-9G
Unavailable
6
PLUG,EXHAUST(2)
92066-502-9G
Unavailable
7
"0" RING
671B2545
Unavailable
8
FITTING,HOSE
92005-3001
Unavailable
8
FITTING,HOSE
92005-3001
Unavailable
9
HOSE
92059-523
Unavailable
10
CLAMP
92037-504
Unavailable
11
CLAMP
92037-504
Unavailable
11
CLAMP
92037-504
Unavailable
12
HOSE
92059-523
Unavailable
13
MUFFLER
18001-520
Unavailable
14
GASKET,EXHAUST
11060-3710
Unavailable
15
BOLT,8X45
110R0845
Unavailable
16
WASHER SPRING 8MM
461S0800
Unavailable
17
WASHER-PLAIN-SMALL,8MM
410S0800
Unavailable
18
BOLT,8X20
110R0820
Unavailable
19
WASHER SPRING 8MM
461S0800
Unavailable
20
TUBE
92059-543
Unavailable
21
CLAMP
92037-541
Unavailable
22
PIPE-EXHAUST
59151-528
Unavailable
23
TUBE
92059-542
Unavailable
24
CLAMP
92037-509
Unavailable
25
CLAMP
92037-506
Unavailable
26
MUFFLER-COMP,WATER BOX
49070-3714
Unavailable
27
BAND
92072-511
Unavailable
28
TUBE,EXHAUST
92059-528
Unavailable
29
TUBE
92059-550
Unavailable
30
PIPE-TAIL,TAIL,EXHAUST
59156-506
Unavailable
31
RIVET
59281-506
Unavailable
32
TUBE,EXHAUST,TAIL
92059-549
Unavailable
33
CLAMP
92037-545
Unavailable
34
GASKET,EXHAUST
11009-3784
Unavailable
35
SCREW,6X45
214R0645
Unavailable
35
SCREW,6X45
92009-3747
Unavailable
36
WASHER
92095-513
Unavailable
37
NUT,6MM
92015-532
Unavailable
38
NUT-HEX,6MM
311R0600
Unavailable
