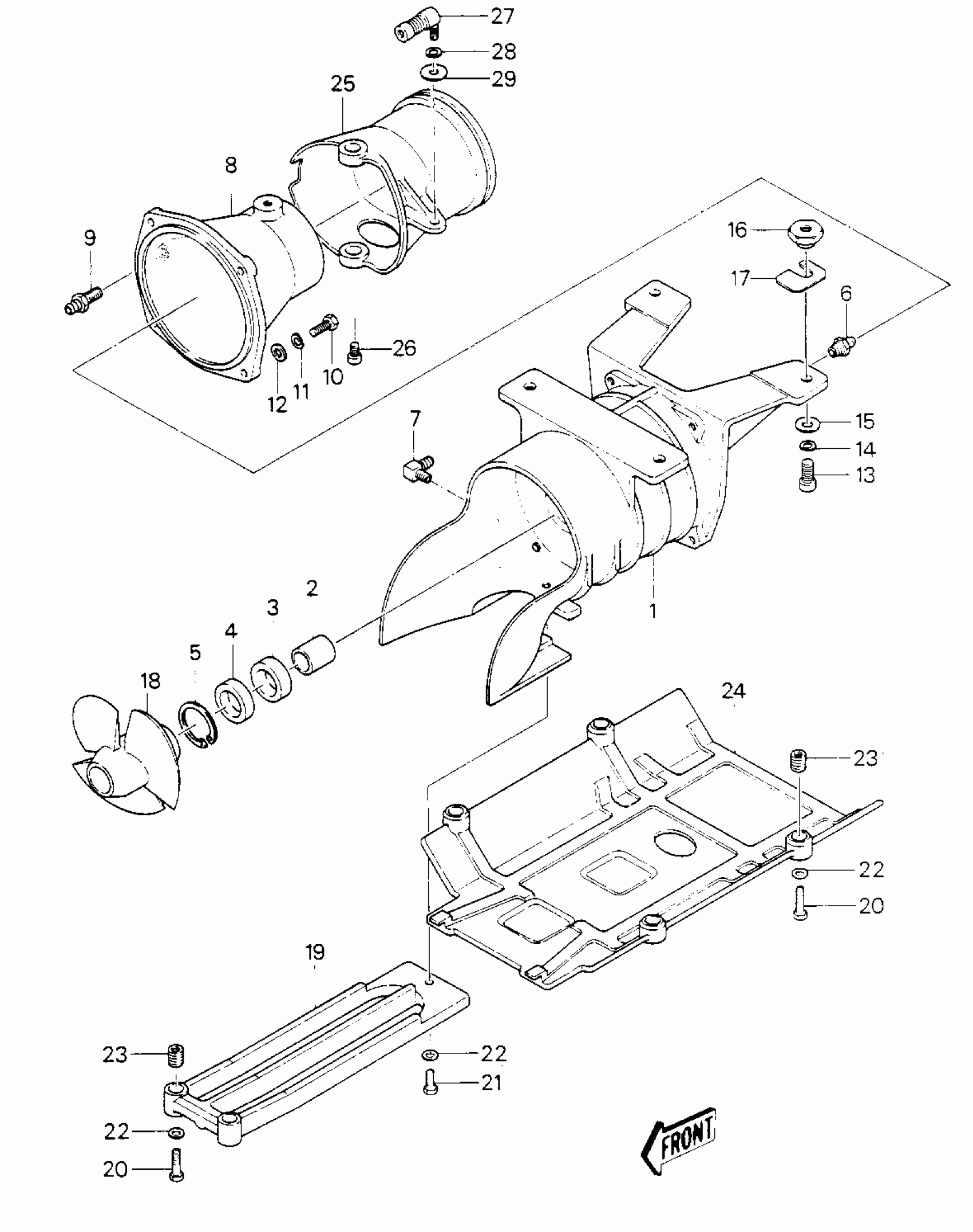

Kawasaki JS440 JET PUMP ('84-'86 JS440-A8/A9/A10) Diagram
#
Description
Price
1
CASE-PUMP
59336-3701
Unavailable
2
BUSHING
92028-503
Unavailable
3
SEAL-OIL,SCY20368
92050-502
$27.73
4
SEAL-OIL,SC20367
92050-503
$24.91
5
RING-SNAP
92036-502
Unavailable
6
FITTING,GREASE
92005-501
Unavailable
7
ELBOW
52014-3002
$34.82
8
NOZZLE-PUMP
59136-3001
$111.30
9
FITTING,HOSE
92005-3001
$10.88
10
BOLT,8X25
110R0825
$2.43
11
WASHER SPRING 8MM
461S0800
$0.65
12
WASHER
92022-562
$2.41
13
BOLT-SOCKET
120R1025
$9.17
14
WASHER-SPRING,10MM
461S1000
$1.03
15
WASHER-PLAIN,10MM
411S1000
$2.67
16
NUT,10MM
92015-3005
Unavailable
17
SHIM,T=0.3MM
92025-3701
Unavailable
17
SHIM,T=0.5MM
92025-3702
Unavailable
17
SHIM,T=1.0MM
92025-3703
Unavailable
17
SHIM,T=1.5MM
92025-3704
Unavailable
18
IMPELLER
59256-504
Unavailable
19
GRATE
59366-3001
Unavailable
20
BOLT,6X25
110R0625
$3.20
21
BOLT,6X14
110R0614
$3.40
22
WASHER-PLAIN,6MM
411S0600
$2.06
23
NUT,INSERT,6MM
92015-523
Unavailable
24
COVER-JET PUMP
59446-3002
$164.32
25
NOZZLE-STRG
59476-3702
Unavailable
26
BOLT,SOCKET,6X11
92001-3701
$14.67
27
JOINT-BALL
59266-3707
$66.16
28
WASHER-SPRING,6MM
461S0600
$1.07
29
WASHER
92022-567
$2.67
