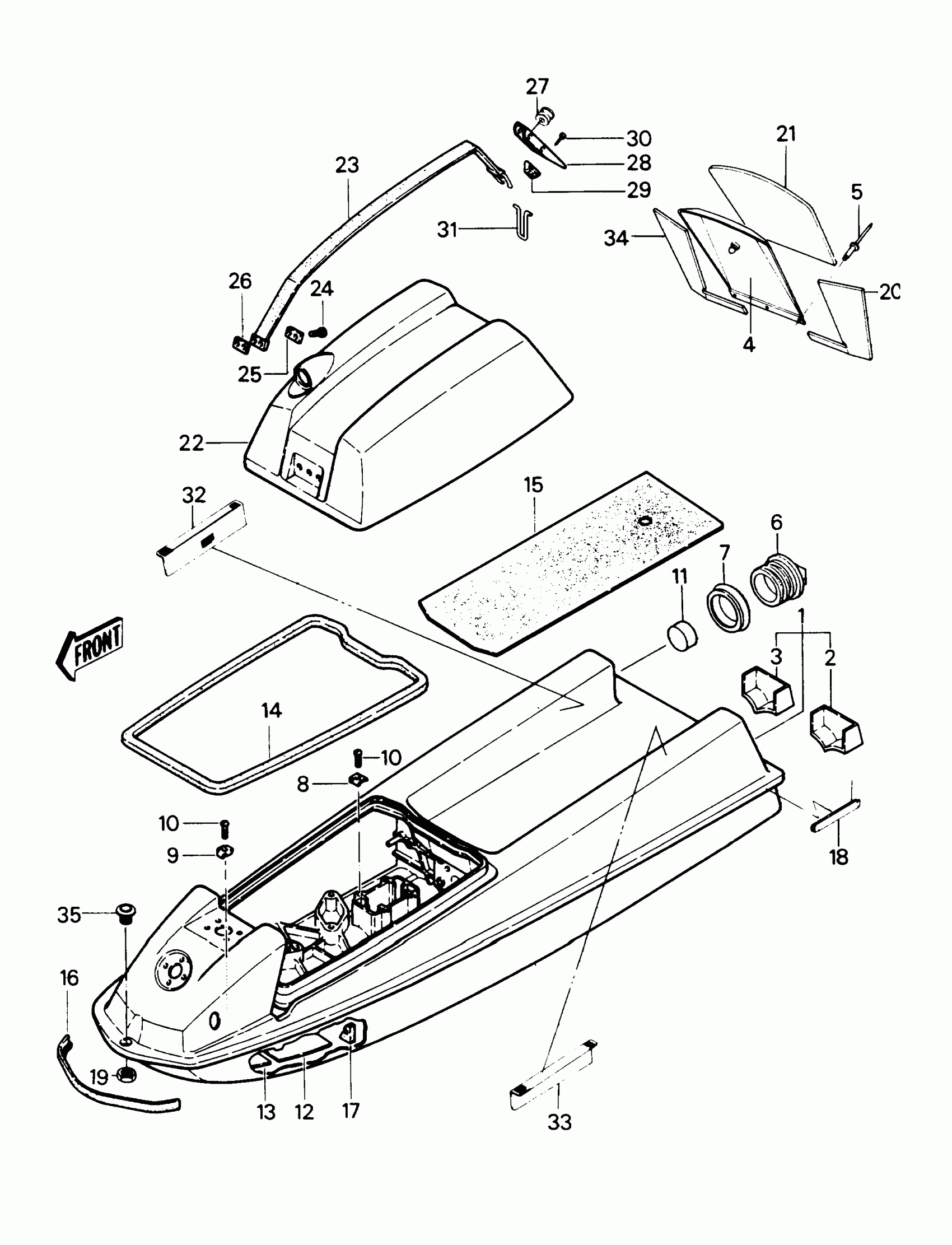

Kawasaki JS440 Hull/Engine Hood(JS440-A11/A12/A13) Diagram

#

Description
Price

10

SCREW,TAPPING

92011-561

Unavailable

11

DAMPER,69X16T

92075-3710

$7.65

12

DAMPER,FUEL TANK

92075-521

Unavailable

13

DAMPER,MUFFLER

92075-522

Unavailable

14

GASKET,ENGINE HOOD

92065-539

$74.38

15

MAT

59131-502

Unavailable

16

BUMPER

59201-3691

$14.97

17

DETENT

59346-504

$8.60

18

GRIP,HULL

46075-3701

Unavailable

19A

NUT

92015-3779

$9.98

20A

MAT,DASHBOARD,LH

53004-3727

Unavailable

21A

MAT,DASHBOARD COVER

53004-3725

Unavailable

22

HOOD-COMP-ENGINE,JET WHITE

59456-3001-8C

$477.02

23

BAND,HOOD

92072-501

Unavailable

24

BOLT,6X30

92001-3022

Unavailable

25

WASHER,BAND

92022-509

$4.73

26

BRACKET,PLATE

59086-501

$18.58

27

GROMMET

92071-056

$4.26

28

LEVER

13168-3701

Unavailable

29

DETENT

59346-503

Unavailable

30

SCREW

92011-562

$1.65

31

HINGE

53009-503

$14.87

32A

MAT,DECK FIN,RH

53004-3723

$106.10

33A

MAT,DECK FIN,LH

53004-3724

$106.10

34A

MAT,DASHBOARD,RH

53004-3726

$41.75

35A

BUSHING

92028-3734

$9.98

1A

HULL-COMP,J.WHITE

59426-3757-8C

$1,548.56

2

HULL,LH,EXTENSION,JET WHITE

59251-3006-8C

Unavailable

3

HULL,RH,EXTENSION,JET WHITE

59251-3005-8C

$20.65

4

COVER,DASHBOARD

14025-3706

$7.80

5

RIVET,4MM

92039-3703

$4.69

6A

CAP

11012-3721

$10.51

7

SEAL-OIL

92049-3709

Unavailable

8

HOOK

27012-501

Unavailable

9

HOOK

27012-502

Unavailable
