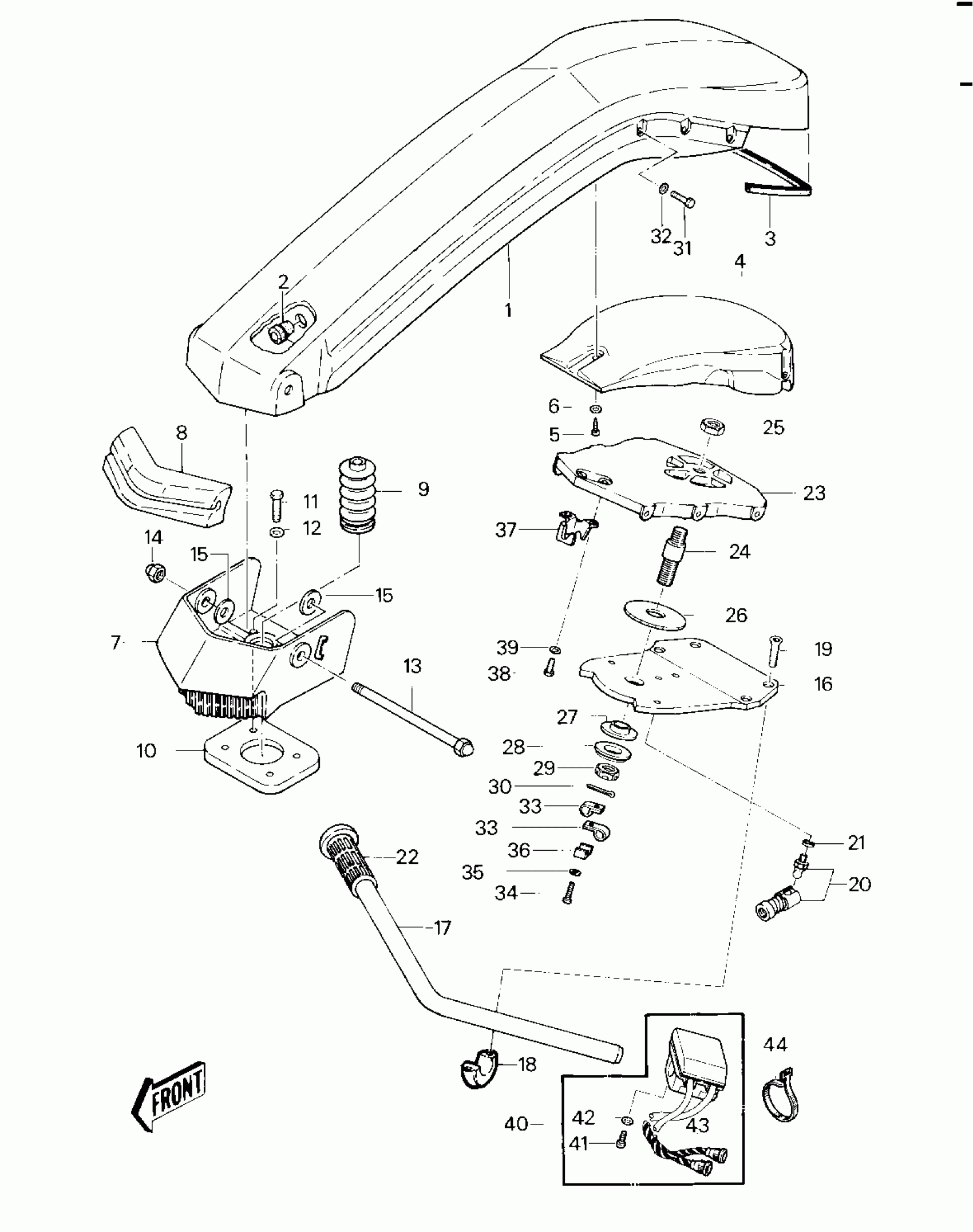

Kawasaki JS440 HANDLE POLE/SWITCHES ('82-'83 JS44 Diagram
#
1
POLE-HANDLE,JET WHITE
59166-3002-8C
Unavailable
2
GROMMET
92071-530
$6.55
3
GROMMET
92071-534
Unavailable
4
FLOAT
16031-506
Unavailable
5
SCREW
92011-562
$1.65
6
WASHER
92022-563
$1.13
7
BRACKET-HANDLE-POLE,S
39021-3701-F2
$166.11
8
DAMPER
92075-519
Unavailable
9
CAP.
59176-514
Unavailable
10
BRACKET,PLATE,HANDLE
59086-538
$34.31
11
BOLT,8X30
92150-3721
$6.88
12
WASHER-PLAIN,8MM
411S0800
$3.09
13
BOLT,14X183
92001-3018
Unavailable
14
NUT,14MM
92015-507
Unavailable
15
WASHER,15X36X4.5
92022-3024
Unavailable
16
PLATE,HANDLEBAR
13169-3004
Unavailable
17
HANDLEBAR
32032-3017
$59.67
18
CLAMP,HANDLEBAR
92037-503
$16.01
19
SCREW-COUNTERSUNK,8X22
92009-3004
$7.49
20
JOINT-BALL
59266-3707
$66.16
21
WASHER-SPRING,6MM
461S0600
$1.07
22
GRIP,HANDLE,RH
46075-3704
Unavailable
23
BRACKET,SUPPORT
11046-3847
Unavailable
24
STUD
92004-3006
$48.01
25
NUT,16M/M
92015-536
$15.04
26
BUSHING
92028-512
Unavailable
27
BUSHING
92028-513
Unavailable
28
WASHER
92022-571
$36.16
29
NUT,CASTLE,18MM
92015-3006
$37.87
30
PIN-COTTER,4X40
550S4040
$6.35
31
BOLT,6X16
110R0616
$3.13
32
WASHER-PLAIN,6MM
411S0600
$2.06
33
CLAMP,LEAD WIRE
92037-3007
$7.31
34
SCREW-PAN-CROS
220R0516
$5.00
35
WASHER-SPRING,5MM
461S0500
$0.49
36
WASHER,CLAMP
92022-3014
$4.76
37
HOLDER-CABLE
14044-3001
Unavailable
38
BOLT 6X12
110R0612
$1.75
39
WASHER-SPRING,6MM
461S0600
$1.07
40
SWITCH-ASSY
27004-3002
$249.12
41
SCREW,PAN HEAD,5X20
220R0520A
$2.87
42
W-PLAIN-S,5MM
410S0500
$1.59
43
TUBE,SPIRAL
92059-3010
$5.54
44
BAND,L=149
92072-031
$5.00
