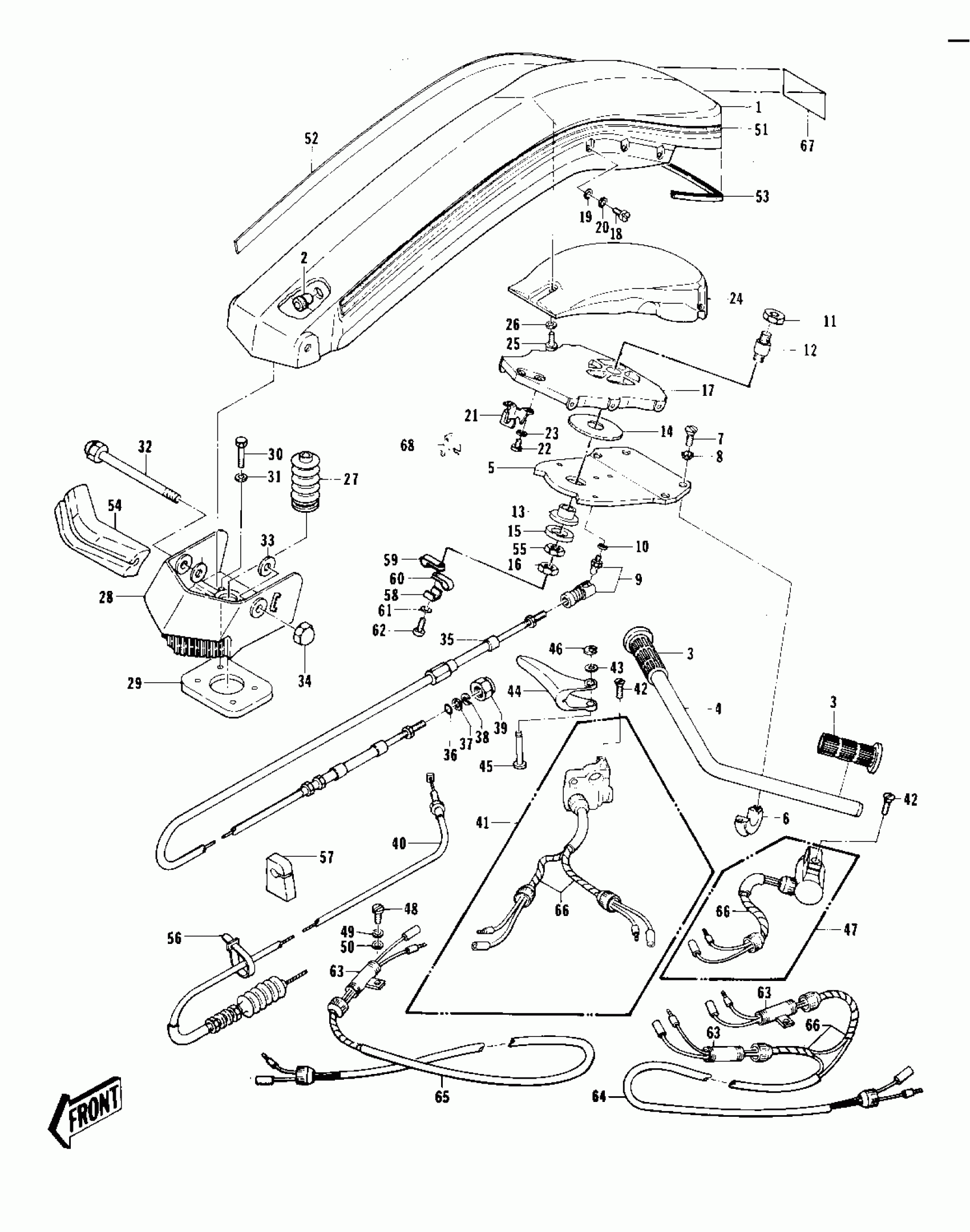

Kawasaki JS440 HANDLE POLE/CABLES (JS440-A2) Diagram
#
1
POLE-HANDLE,JET WHITE
59166-3002-8C
Unavailable
2
GROMMET
92071-530
Unavailable
3
GRIP,HANDLE,RH
46075-3704
Unavailable
4
HANDLEBAR
32032-3017
Unavailable
5
PLATE,HANDLEBAR
13169-3004
Unavailable
6
CLAMP,HANDLEBAR
92037-503
Unavailable
7
SCREW,8X25
221R0825
Unavailable
8
WASHER
92095-511
Unavailable
9
JOINT-BALL
59266-3707
Unavailable
10
WASHER-SPRING,6MM
461S0600
Unavailable
11
NUT,16M/M
92015-536
Unavailable
12
STUD,PIVOT
92004-3003
Unavailable
13
BUSHING
92028-513
Unavailable
14
BUSHING
92028-512
Unavailable
15
WASHER
92022-571
Unavailable
16
NUT 18M/M
92015-506
Unavailable
17
BRACKET,SUPPORT
11046-3847
Unavailable
18
SCREW,6X18
220R0618
Unavailable
19
WASHER-PLAIN,6MM
411S0600
Unavailable
20
WASHER-SPRING,6MM
461S0600
Unavailable
21
HOLDER,CABLE
16065-509
Unavailable
22
SCREW-PAN-CROS,6X12
220R0612
Unavailable
23
WASHER-SPRING,6MM
461S0600
Unavailable
24
FLOAT
16031-506
Unavailable
25
SCREW
92011-562
Unavailable
26
WASHER
92022-563
Unavailable
27
CAP.
59176-514
Unavailable
28
BRACKET-HANDLE-POLE,S
39021-3701-F2
Unavailable
29
BRACKET,PLATE,HANDLE
59086-538
Unavailable
30
BOLT,8X30
92150-3721
Unavailable
31
WASHER-PLAIN,8MM
411S0800
Unavailable
32
BOLT,14X183
92001-3018
Unavailable
33
WASHER
92022-507
Unavailable
34
NUT,14MM
92015-507
Unavailable
35
CABLE,STEERING
59406-3001
Unavailable
36
O RING,11MM
670B2011
Unavailable
37
WASHER
92022-535
Unavailable
38
RING-SNAP
92036-501
Unavailable
39
NUT,20MM
92015-526
Unavailable
40
CABLE,THROTTLE
54012-3001
Unavailable
41
SWITCH,STOP
27010-3002
Unavailable
42
SCREW,OVL CNTSNK,6X22
222R0622
Unavailable
43
WASHER-PLAIN-SMALL,6MM
410S0600
Unavailable
44
LEVER,THROTTLE
59126-509
Unavailable
45
PIN,THROTTLE
92043-3003
Unavailable
46
RING,SNAP
92036-518
Unavailable
47
SWITCH,START
27010-3001
Unavailable
48
SCREW-PAN-CROS,6X20
220R0620
Unavailable
49
WASHER-SPRING,6MM
461S0600
Unavailable
50
WASHER-PLAIN,6MM
411S0600
Unavailable
51
DECAL-HANDLE POLE LH
56027-531
Unavailable
52
DECAL-HANDLE POLE RH
56027-530
Unavailable
53
GROMMET
92071-534
Unavailable
54
DAMPER
92075-519
Unavailable
55
NUT,18M/M
92015-537
Unavailable
56
BAND,L=123
92072-030
Unavailable
57
DETENT
59346-504
Unavailable
58
WASHER,CLAMP
92022-3014
Unavailable
59
CLAMP,LEAD WIRE
92037-3007
Unavailable
60
CLAMP,LEAD WIRE
92037-3008
Unavailable
61
WASHER-SPRING,5MM
461S0500
Unavailable
62
SCREW-PAN-CROS
220R0516
Unavailable
63
CASE,CONNECTOR
32099-3002
Unavailable
64
HARNESS,START
26001-3003
Unavailable
65
HARNESS,STOP
26001-3004
Unavailable
66
TUBE,SPIRAL
92059-3010
Unavailable
67
LABEL-SFTY-HNDL POLE
56022-507
Unavailable
68
HOLDER,THROTTLE CABLE
16065-517
Unavailable
