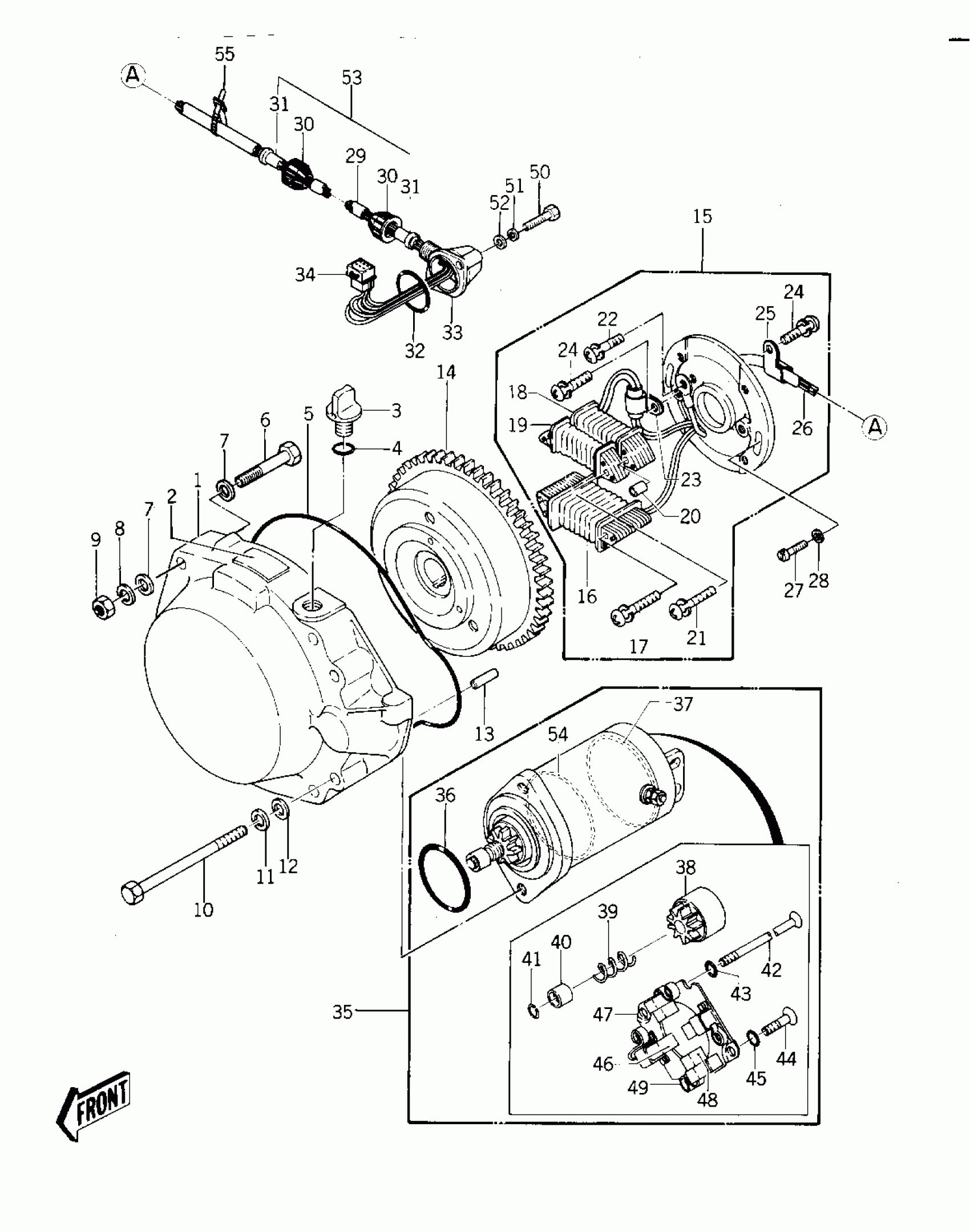

Kawasaki JS440 GENERATOR/STARTER MOTOR ('77-'78 A1/A1A/ Diagram
#
1
COVER-GENERATOR
14031-3705
Unavailable
2
LABEL,HORSE POWER
56019-561
Unavailable
3
BREATHER
14069-3709
Unavailable
4
RING-O
92055-515
Unavailable
5
RING-O
92055-521
Unavailable
6
BOLT 8X50
110R0850
Unavailable
7
WASHER-PLAIN-SMALL,8MM
410S0800
Unavailable
8
WASHER SPRING 8MM
461S0800
Unavailable
9
NUT 8MM
311R0800
Unavailable
10
BOLT,8X80
92001-3011
Unavailable
10
BOLT,8X80
92001-3011
Unavailable
11
WASHER SPRING 8MM
461S0800
Unavailable
12
WASHER-PLAIN-SMALL,8MM
410S0800
Unavailable
13
PIN-DOWEL
551R0612
Unavailable
14
FLYWHEEL ASSY
21050-3005
Unavailable
14
FLYWHEEL ASSY
21050-3005
Unavailable
15
STATOR ASSY
21003-524
Unavailable
16
COIL,CHARGE
59031-501
Unavailable
17
SCREW,5X34
92011-530
Unavailable
18
COIL,EXCITING
21049-506
Unavailable
19
COIL,PULSING
59026-504
Unavailable
20
COLLAR,COIL
92027-509
Unavailable
21
SCREW 5X40
92011-533
Unavailable
22
SCREW 4X6
92011-559
Unavailable
23
CLAMP
92037-520
Unavailable
24
SCREW,4X8
92011-560
Unavailable
25
CLAMP
92037-547
Unavailable
26
HARNESS,WIRING
26001-3006
Unavailable
27
SCREW 5X20
232B0520A
Unavailable
28
WASHER
92022-544
Unavailable
29
CAP-ASSY
14075-3001
Unavailable
29
TUBE,10X335
92059-3019
Unavailable
30
CAP-ASSY
14075-3001
Unavailable
30
CAP
11012-3012
Unavailable
31
CAP-ASSY
14075-3001
Unavailable
31
GROMMET
92071-3001
Unavailable
32
RING-O,35.2X1.9
92055-520
Unavailable
33
CAP.
59176-517-YR
Unavailable
34
CONNECTOR-CORD
59221-506
Unavailable
35
STARTER-ELECTRIC
21163-3710
Unavailable
35
STARTER-ELECTRIC
21163-3710
Unavailable
35
STARTER-ELECTRIC
21163-3710
Unavailable
36
O RING,65MM
671B2565
Unavailable
37
RING-O
92055-517
Unavailable
38
PINION ASSY
59051-505
Unavailable
38
GEAR-SPUR
59051-3005
Unavailable
38
GEAR-SPUR
59051-3005
Unavailable
39
SPRING,RETURN
92081-541
Unavailable
40
COLLAR,STOPPER,PINION
92027-513
Unavailable
41
RING-SNAP
92036-517
Unavailable
42
SCREW,6X107
92011-549
Unavailable
43
O RING,6MM
670B1506
Unavailable
44
SCREW,4X8
92011-550
Unavailable
45
'O'RING(1)
92055-519
Unavailable
45
O RING,5MM
670B1505
Unavailable
46
BRUSH,(+)
21039-3003
Unavailable
46
BRUSH,(+)
21039-3003
Unavailable
47
HOLDER-ASSY,BRUSH
14079-3002
Unavailable
47
HOLDER-ASSY,BRUSH
14079-3002
Unavailable
48
BRUSH,(-)
21039-3004
Unavailable
48
BRUSH,(-)
21039-3004
Unavailable
49
SPRING,BRUSH
92081-540
Unavailable
50
BOLT,6X36
110R0636
Unavailable
51
WASHER-SPRING,6MM
461S0600
Unavailable
52
WASHER-PLAIN-SMALL,6MM
410S0600
Unavailable
53
CAP-ASSY
14075-3001
Unavailable
54
RING-O
92055-517
Unavailable
55
BAND,L=123
92072-030
Unavailable
