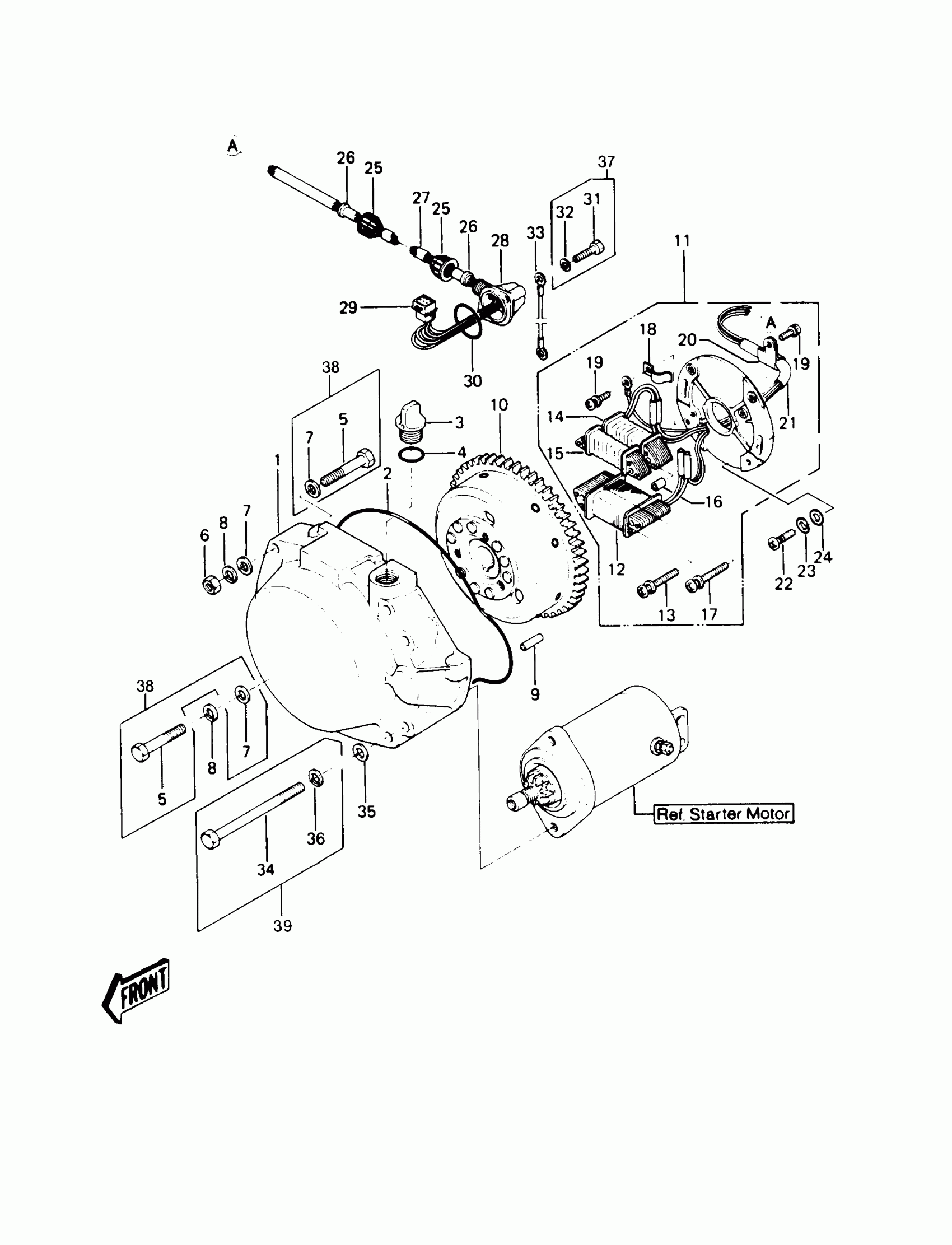

Kawasaki JS440 Generator(JS440-A11) Diagram
#
Description
Price
10
FLYWHEEL
21050-3021
$764.47
11
STATOR
21003-3012
Unavailable
12
COIL-CHARGING
59031-3002
Unavailable
13
SCREW,5X34
92011-530
Unavailable
14
COIL-EXCITING
21049-3007
Unavailable
15
COIL-PULSING
59026-3008
$126.07
16
COLLAR
92027-3014
$8.43
17
SCREW,5X38
92009-3008
Unavailable
18
CLAMP
92037-520
Unavailable
19
SCREW,4X8
92011-560
Unavailable
20
CLAMP
92037-547
Unavailable
21
HARNESS,WIRING
26001-3006
Unavailable
22
SCREW-PAN-CROS
220B0520
$0.68
23
WASHER SPRING 5MM
461F0500
$0.69
24
WASHER
92022-544
$2.67
25
CAP
11012-3012
$9.11
26
GROMMET
92071-3001
Unavailable
27
TUBE,10X345
92059-3032
$20.47
28
CAP.
59176-517-YR
Unavailable
29
CONNECTOR-CORD
59221-506
$11.17
30
RING-O,35.2X1.9
92055-520
$5.31
33
WIRE-LEAD,BLACK
26011-3006
Unavailable
35
WASHER-PLAIN-SMALL,8MM
410S0800
$2.58
37
BOLT,6X35
92002-3715
$6.61
38
BOLT-WP-SMALL
154R0845
$4.47
39
BOLT,8X70
92002-3719
$12.14
1A
COVER-GENERATOR
14031-3705
Unavailable
2
RING-O
92055-521
$28.99
3
BREATHER-BRAKE
43056-502
$48.15
4
RING-O
92055-515
$2.70
6A
NUT
317R0800
$1.96
7
WASHER-PLAIN-SMALL,8MM
410S0800
$2.58
8
WASHER SPRING 8MM
461S0800
$0.65
9
PIN-DOWEL
551R0612
$4.69
