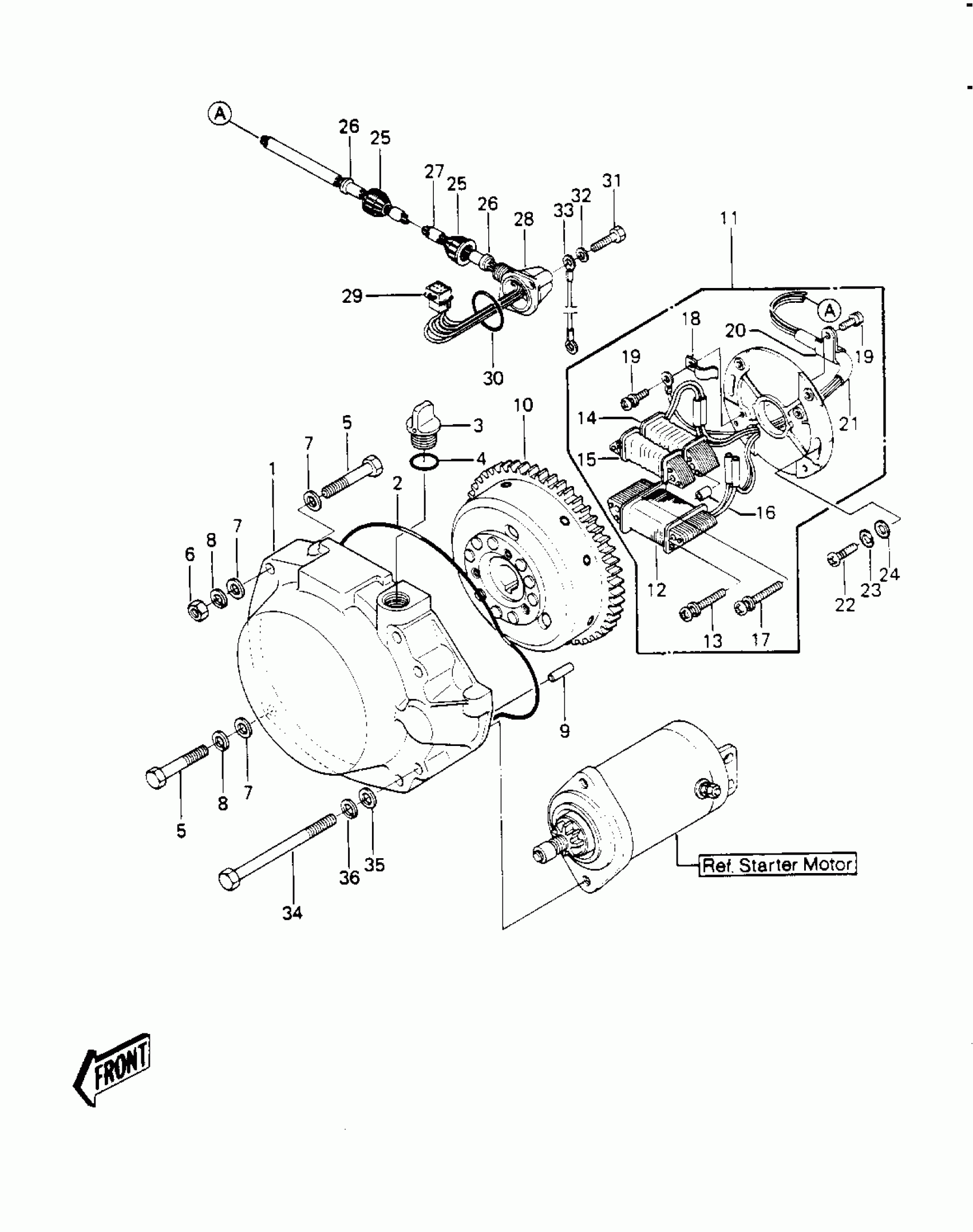

Kawasaki JS440 GENERATOR ('84-'86 JS440-A8/A9/A10) Diagram
#
Description
Price
1
COVER-GENERATOR
14031-3705
Unavailable
2
RING-O
92055-521
$28.99
3
BREATHER
14069-3709
$48.15
4
RING-O
92055-515
$2.70
5
BOLT 8X50
110R0850
$7.10
6
NUT 8MM
311R0800
$0.70
7
WASHER-PLAIN-SMALL,8MM
410S0800
$2.58
8
WASHER SPRING 8MM
461S0800
$0.65
9
PIN-DOWEL
551R0612
$4.69
10
FLYWHEEL
21050-3021
$764.47
11
STATOR
21003-3012
Unavailable
12
COIL-CHARGING
59031-3002
Unavailable
13
SCREW,5X34
92011-530
Unavailable
14
COIL-EXCITING
21049-3007
Unavailable
15
COIL-PULSING
59026-3008
$126.07
16
COLLAR
92027-3014
$8.43
17
SCREW,5X38
92009-3008
Unavailable
18
CLAMP
92037-520
Unavailable
19
SCREW,4X8
92011-560
Unavailable
20
CLAMP
92037-547
Unavailable
21
HARNESS,WIRING
26001-3006
Unavailable
22
SCREW-PAN-CROS
220B0520
$0.68
23
WASHER SPRING 5MM
461F0500
$0.69
24
WASHER
92022-544
$2.67
25
CAP
11012-3012
$9.11
26
GROMMET
92071-3001
Unavailable
27
TUBE,10X345
92059-3032
$20.47
28
CAP.
59176-517-YR
Unavailable
29
CONNECTOR-CORD
59221-506
$11.17
30
RING-O,35.2X1.9
92055-520
$5.31
31
BOLT 6X35
110R0635
Unavailable
32
WASHER-PLAIN-SMALL,6MM
410S0600
$0.78
33
WIRE-LEAD,BLACK
26011-3006
Unavailable
34
BOLT,8X80
92001-3011
Unavailable
35
WASHER-PLAIN-SMALL,8MM
410S0800
$2.58
36
WASHER SPRING 8MM
461S0800
$0.65
