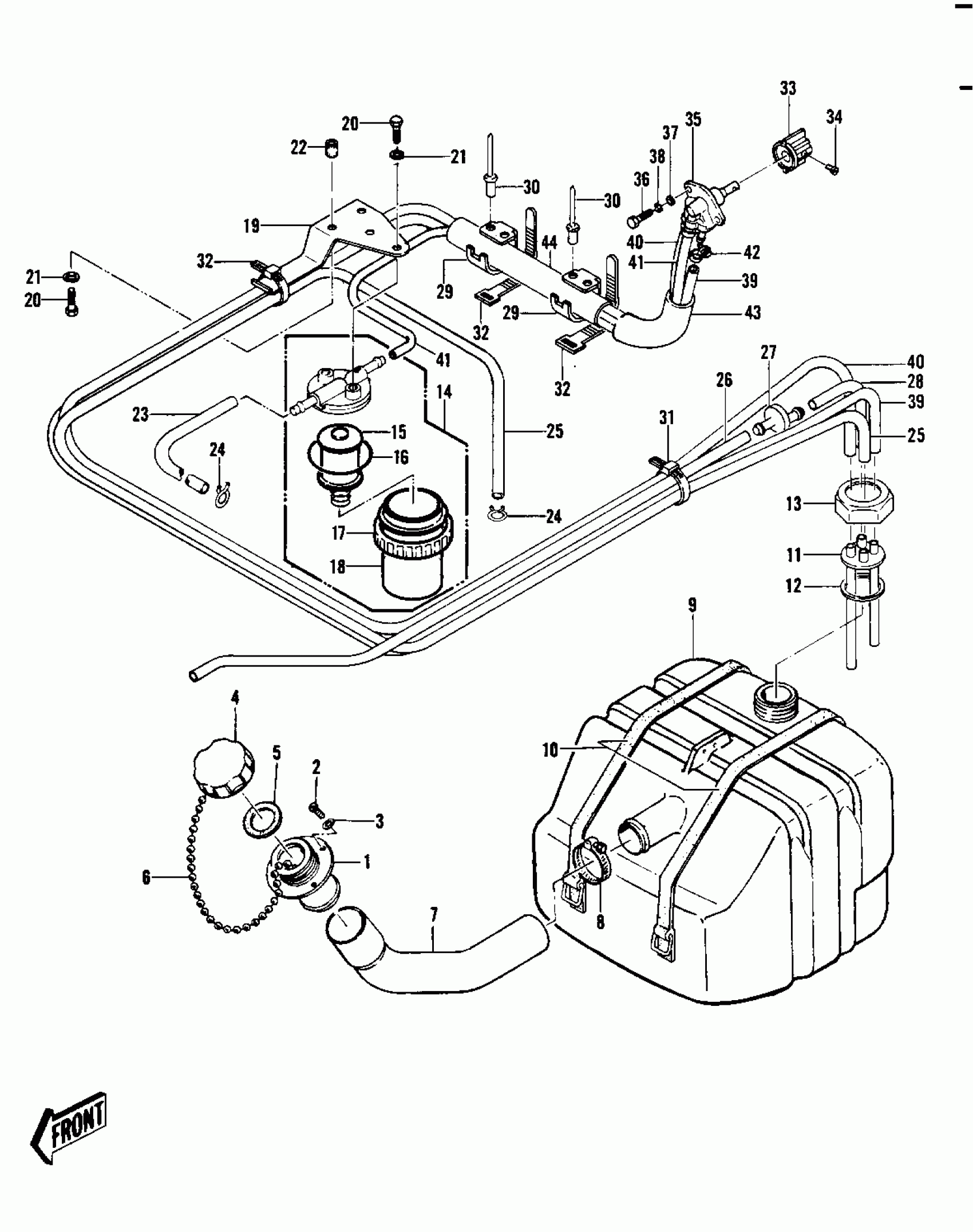

Kawasaki JS440 FUEL TANK ('82-'83 JS440-A6/A7) Diagram
#
1
FILLER,FUEL TANK
59231-3001
$17.77
2
SCREW
92011-562
$1.65
3
WASHER
92022-563
$1.13
4
CAP-TANK
51049-3001
$10.80
5
GASKET,TANK CAP
11009-3020
$13.51
6
CHAIN,COVER,L=100
92057-3704
$19.34
7
TUBE,FUEL INLET
92059-3020
Unavailable
8
CLAMP
92037-3009
$3.70
9
TANK-FUEL
51004-3702
Unavailable
10
BAND,FUEL TANK
92072-521
Unavailable
11
PIPE-COMP,FUEL
31064-3001
Unavailable
12
GASKET
92065-504
$15.31
13
RETAINER
23072-501
Unavailable
14
FILTER-FUEL
49019-3701
Unavailable
15
FILTER,FUEL ELEMENT
14043-3701
Unavailable
16
RING-O,FILTER CUP
92055-3006
$3.07
17
NUT,RING
92015-3013
Unavailable
18
CUP,FUEL FILTER
51036-3701
Unavailable
18
CUP,FUEL FILTER
51036-3701
Unavailable
19
BRACKET,FUEL FILTER
11047-3743
Unavailable
20
BOLT 6X12
110R0612
$1.75
21
WASHER-SPRING,6MM
461S0600
$1.07
22
NUT-INSERT,6MM $$
92015-533
$9.43
23
UNAVAILABLE IN PRICE BOOK
92059-301
Unavailable
24
CLAMP
92037-1173
$3.49
25
TUBE,6X10X760
92059-3012
$11.18
26
TUBE,FUEL,6X10X940
92059-3025
Unavailable
27
VALVE-RELIEF
49057-3001
$64.85
28
TUBE,5.8X12.2X55
92059-3026
Unavailable
29
CLAMP,TUBE
92037-3005
$5.04
30
RIVET-FUEL LINE CLAMP
59281-505
$2.21
31
BAND,L=123
92072-030
$5.00
32
BAND,L=149
92072-031
$5.00
33
KNOB,FUEL TAP
92077-503
Unavailable
34
SCREW-PAN-CROS,4X8
220R0408
$2.15
35
TAP-ASSY,FUEL
51023-3705
Unavailable
36
BOLT,5X12
110R0512A
Unavailable
37
WASHER-PLAIN,5MM
411S0500
$0.94
39
TUBE,6X1300
92059-552
Unavailable
40
TUBE,6X1300,RESERVE
92059-553
Unavailable
41
TUBE,6X10X960
92059-3007
Unavailable
42
CLAMP
92037-551
$3.49
43
TUBE,GUARD
92059-3008
Unavailable
44
TUBE,VINYL,22X350
92059-3018
$30.46
