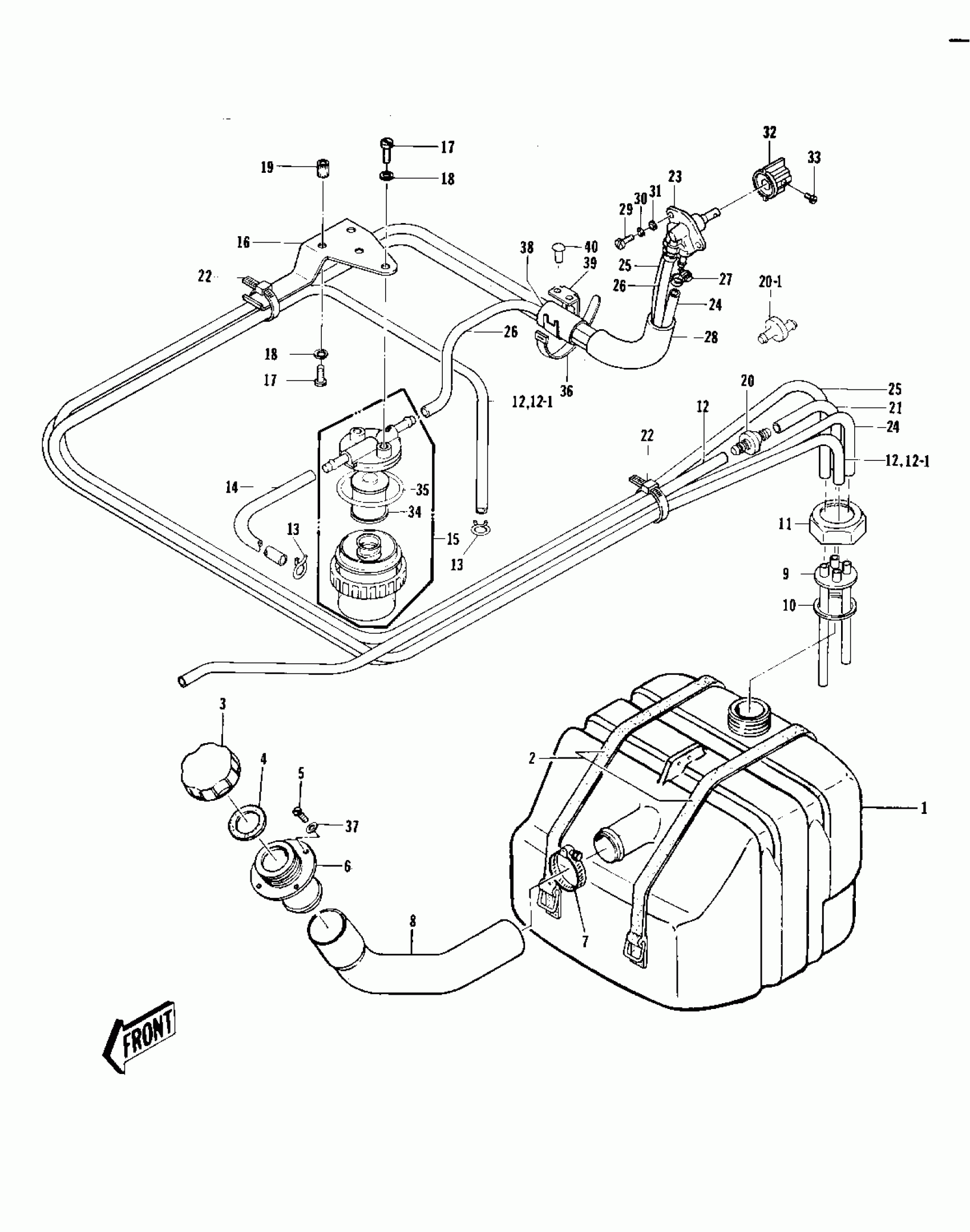

Kawasaki JS440 FUEL TANK ('77-'78 A1/A1A/A2) Diagram
#
1
TANK-FUEL
51004-3702
Unavailable
2
BAND,FUEL TANK
92072-521
Unavailable
3
CAP-TANK
51049-3001
Unavailable
4
GASKET
92065-504
Unavailable
5
SCREW
92011-562
Unavailable
6
FILLER,FUEL TANK
59231-3001
Unavailable
6
FILLER,FUEL TANK
59231-3001
Unavailable
7
CLAMP
92037-506
Unavailable
8
HOSE,FUEL INLET
92059-525
Unavailable
9
PIPE-COMP,FUEL
31064-3001
Unavailable
10
GASKET
92065-504
Unavailable
11
RETAINER
23072-501
Unavailable
12
TUBE,FUEL,6X10X940
92059-3025
Unavailable
12-1
TUBE,6X10X760
92059-3012
Unavailable
13
CLAMP
92037-1173
Unavailable
14
TUBE,6X380
92059-546
Unavailable
14
TUBE,6X10X200
92059-3011
Unavailable
15
FILTER,FUEL
59236-505
Unavailable
15
FILTER-FUEL
49019-3701
Unavailable
16
BRACKET,FUEL FILTER
11047-3743
Unavailable
17
SCREW-PAN-CROS,6X12
220R0612
Unavailable
17
SCREW-PAN-CROS,6X12
220R0612
Unavailable
18
WASHER-SPRING,6MM
461S0600
Unavailable
19
NUT-INSERT,6MM $$
92015-533
Unavailable
20
VALVE-RELIEF
49057-3001
Unavailable
20-1
VALVE-RELIEF
49057-3001
Unavailable
21
PIPE,FUEL (1)
92059-527
Unavailable
21
TUBE,5.8X12.2X55
92059-3026
Unavailable
22
BAND,L=123
92072-030
Unavailable
23
TAP-ASSY,FUEL
51023-3705
Unavailable
24
TUBE,6X1300
92059-552
Unavailable
24
TUBE,6X1300
92059-552
Unavailable
25
TUBE,6X1300,RESERVE
92059-553
Unavailable
25
TUBE,6X1300,RESERVE
92059-553
Unavailable
26
TUBE,6X750
92059-554
Unavailable
26
TUBE,6X10X960
92059-3007
Unavailable
27
CLAMP
92037-551
Unavailable
27
CLAMP
92037-551
Unavailable
28
TUBE,GUARD
92059-3008
Unavailable
28
TUBE,GUARD
92059-3008
Unavailable
29
BOLT,5X12
110R0512A
Unavailable
30
WASHER-SPRING,5MM
461S0500
Unavailable
31
WASHER-PLAIN,5MM
411S0500
Unavailable
32
KNOB,FUEL TAP
92077-503
Unavailable
33
SCREW 4X8
214R0408A
Unavailable
33
SCREW-PAN-CROS,4X8
220R0408
Unavailable
34
FILTER,FUEL ELEMENT
14043-5001
Unavailable
35
RING-O,FILTER CUP
92055-3006
Unavailable
36
BAND,L=149
92072-031
Unavailable
37
WASHER
92022-563
Unavailable
38
TUBE,VINYL,22X350
92059-3018
Unavailable
39
CLAMP,TUBE
92037-3005
Unavailable
40
RIVET-FUEL LINE CLAMP
59281-505
Unavailable
