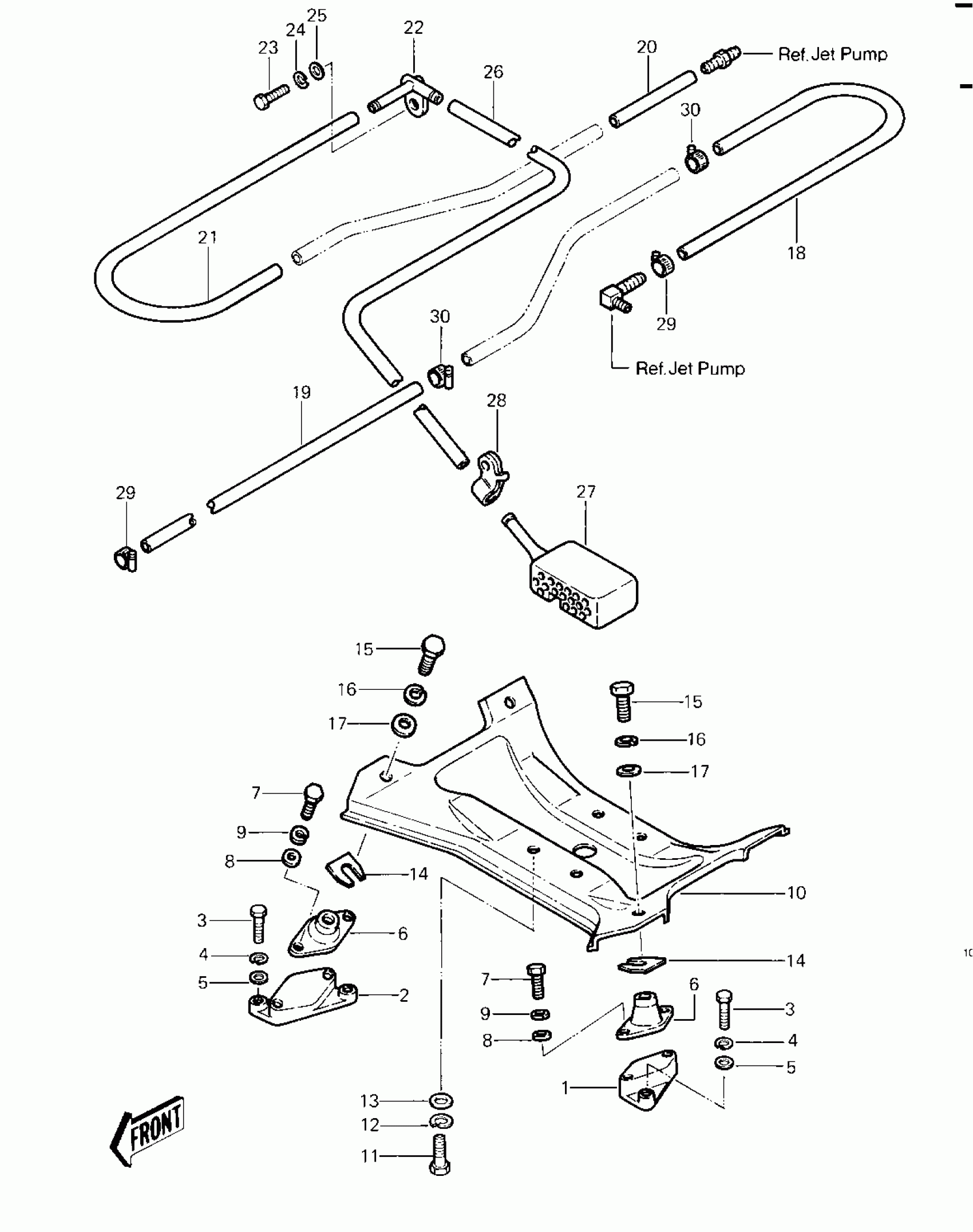

Kawasaki JS440 ENGINE MOUNT/COOLING & BILGE ('82-'83 J Diagram
#
Description
Price
1
BRACKET,ENGINE MOUNT
59016-532
Unavailable
2
BRACKET,ENGINE MOUNT
59016-533
Unavailable
3
BOLT,8X20
110R0820
$4.67
4
WASHER SPRING 8MM
461S0800
$0.65
5
WASHER-PLAIN,8MM
411S0800
$3.09
6
DAMPER,ENGINE MOUNT
92160-3756
Unavailable
7
BOLT,8X20
110R0820
$4.67
8
WASHER-PLAIN,8MM
411S0800
$3.09
9
WASHER SPRING 8MM
461S0800
$0.65
10
MOUNT-ENGINE
59181-509-9G
$129.88
11
BOLT,1/2"X31
92003-533
Unavailable
12
WASHER-SPRING,14MM
461S1400
$2.98
13
WASHER-PLAIN,14MM
411S1400
$5.10
14
SHIM,T=0.3MM
92025-3701
Unavailable
14
SHIM,T=0.5MM
92025-3702
Unavailable
14
SHIM,T=1.0MM
92025-3703
Unavailable
14
SHIM,T=1.5MM
92025-3704
Unavailable
15
BOLT,10X25
110R1025
$7.02
16
WASHER-SPRING,10MM
461S1000
$1.03
17
WASHER,32X10.5X4
92022-3023
$8.84
18
TUBE,9X360
92059-503
Unavailable
19
TUBE,9X280
92059-535
Unavailable
20
TUBE,9X90
92059-557
Unavailable
21
TUBE,9X280
92059-535
Unavailable
22
BREATHER,BILGE
14069-3001
Unavailable
23
BOLT,8X25
110R0825
$2.43
24
WASHER SPRING 8MM
461S0800
$0.65
25
WASHER,PLAIN
92022-3026
$3.60
26
TUBE,9X280
92059-535
Unavailable
27
FILTER,BILGE
59236-504
Unavailable
28
CLAMP
92037-537
$8.95
29
CLAMP
92037-504
$13.67
30
CLAMP
92037-504
$13.67
