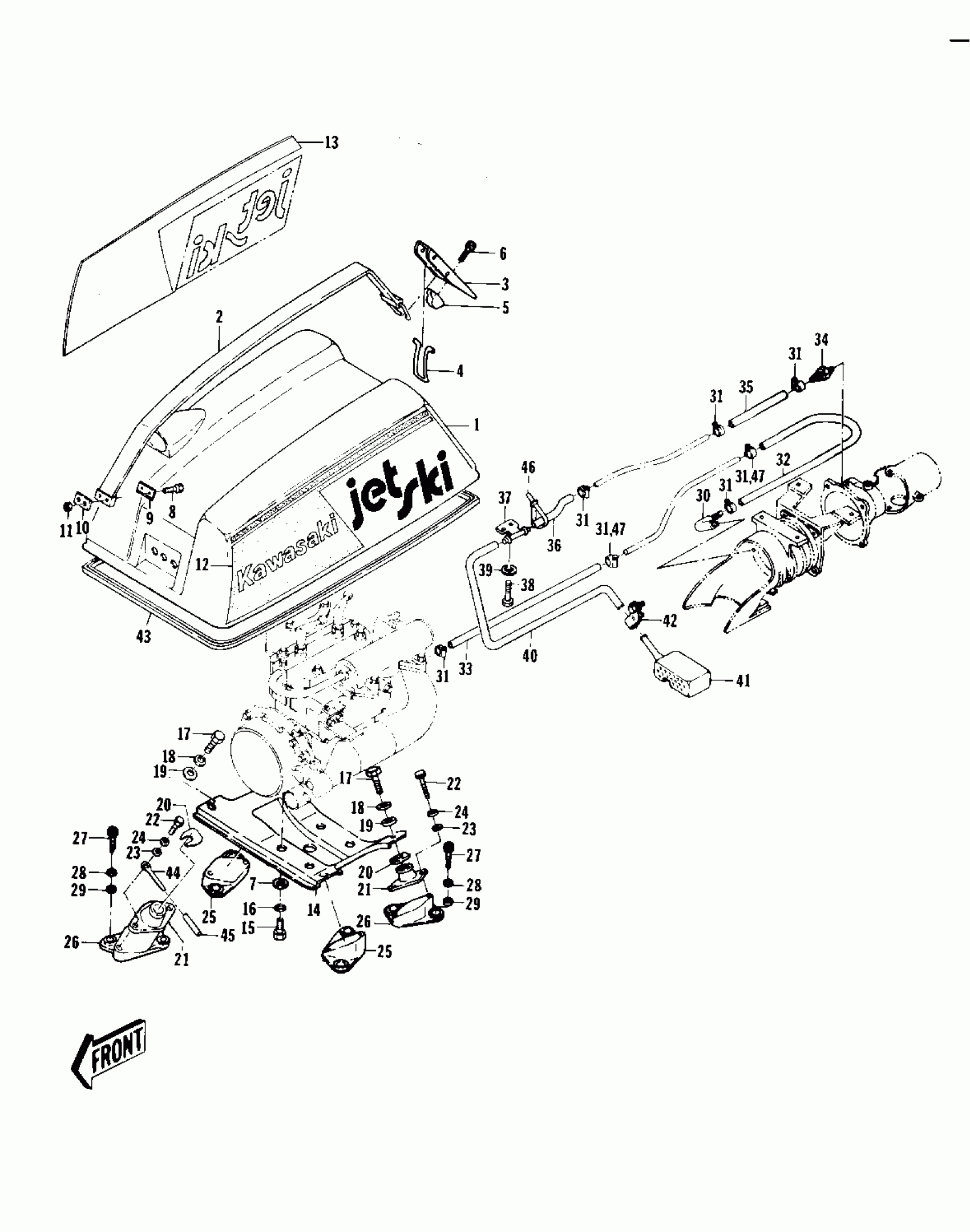

Kawasaki JS440 ENGINE HOOD/COOLING & BILGE ('77-'78 A1/ Diagram
#
1
HOOD-COMP-ENGINE,JET WHITE
59456-3719-8C
Unavailable
1
HOOD-COMP-ENGINE,JET WHITE
59456-3719-8C
Unavailable
2
BAND,HOOD
92072-3746
Unavailable
3
LEVER
13168-3701
Unavailable
4
HINGE
53009-503
Unavailable
5
DETENT
59346-503
Unavailable
6
SCREW
92011-562
Unavailable
7
WASHER-PLAIN,14MM
411S1400
Unavailable
8
BOLT,6X30
92001-3022
Unavailable
9
WASHER,BAND
92022-509
Unavailable
10
BRACKET,PLATE
59086-501
Unavailable
11
NUT-HEX,6MM
311R0600
Unavailable
11
NUT-HEX,6MM
311R0600
Unavailable
12
DECAL-ENG COVER,LH
56027-536
Unavailable
13
DECAL-ENG COVER,RH
56027-535
Unavailable
14
MOUNT-ENGINE
59181-509-9G
Unavailable
15
BOLT,1/2"X31
92003-533
Unavailable
16
WASHER-SPRING,14MM
461S1400
Unavailable
17
BOLT,10X25
110R1025
Unavailable
18
WASHER-SPRING,10MM
461S1000
Unavailable
19
WASHER,32X10.5X4
92022-3023
Unavailable
20
SHIM,T=0.3MM
92025-3701
Unavailable
20
SHIM,T=0.3MM
92025-3701
Unavailable
20
SHIM,T=0.5MM
92025-3702
Unavailable
9
SHIM,T=1.0MM
92025-3703
Unavailable
21
DAMPER,ENGINE MOUNT
92160-3756
Unavailable
22
BOLT,8X20
110R0820
Unavailable
23
WASHER-PLAIN,8MM
411S0800
Unavailable
24
WASHER SPRING 8MM
461S0800
Unavailable
25
BRACKET,ENGINE MOUNT
59016-532
Unavailable
26
BRACKET,ENGINE MOUNT
59016-533
Unavailable
27
BOLT,8X22
92003-528
Unavailable
28
WASHER SPRING 8MM
461S0800
Unavailable
29
WASHER-PLAIN,8MM
411S0800
Unavailable
30
ELBOW
52014-503
Unavailable
30
ELBOW
52014-3002
Unavailable
31
CLAMP
92037-504
Unavailable
31
CLAMP
92037-504
Unavailable
31
CLAMP
92037-504
Unavailable
32
TUBE,9X360
92059-503
Unavailable
33
HOSE,WATER (3)
92059-534
Unavailable
33
TUBE,9X280
92059-535
Unavailable
34
FITTING,HOSE
92005-3001
Unavailable
34
FITTING,HOSE
92005-3001
Unavailable
35
HOSE,BILGE (3)
92059-536
Unavailable
35
TUBE,9X90
92059-557
Unavailable
36
TUBE,9X360
92059-503
Unavailable
37
BREATHER-BILGE LINE
43056-501
Unavailable
38
SCREW
92011-562
Unavailable
39
WASHER
92022-563
Unavailable
40
HOSE,BILGE (1)
92059-506
Unavailable
41
FILTER,BILGE
59236-504
Unavailable
42
CLAMP
92037-537
Unavailable
43
GROMMET
92071-532
Unavailable
44
CLAMP,LEAD WIRE
92037-3006
Unavailable
45
TUBE,VINYL,5X73
92059-3017
Unavailable
46
BAND,L=149
92072-031
Unavailable
47
CLAMP
92037-504
Unavailable
