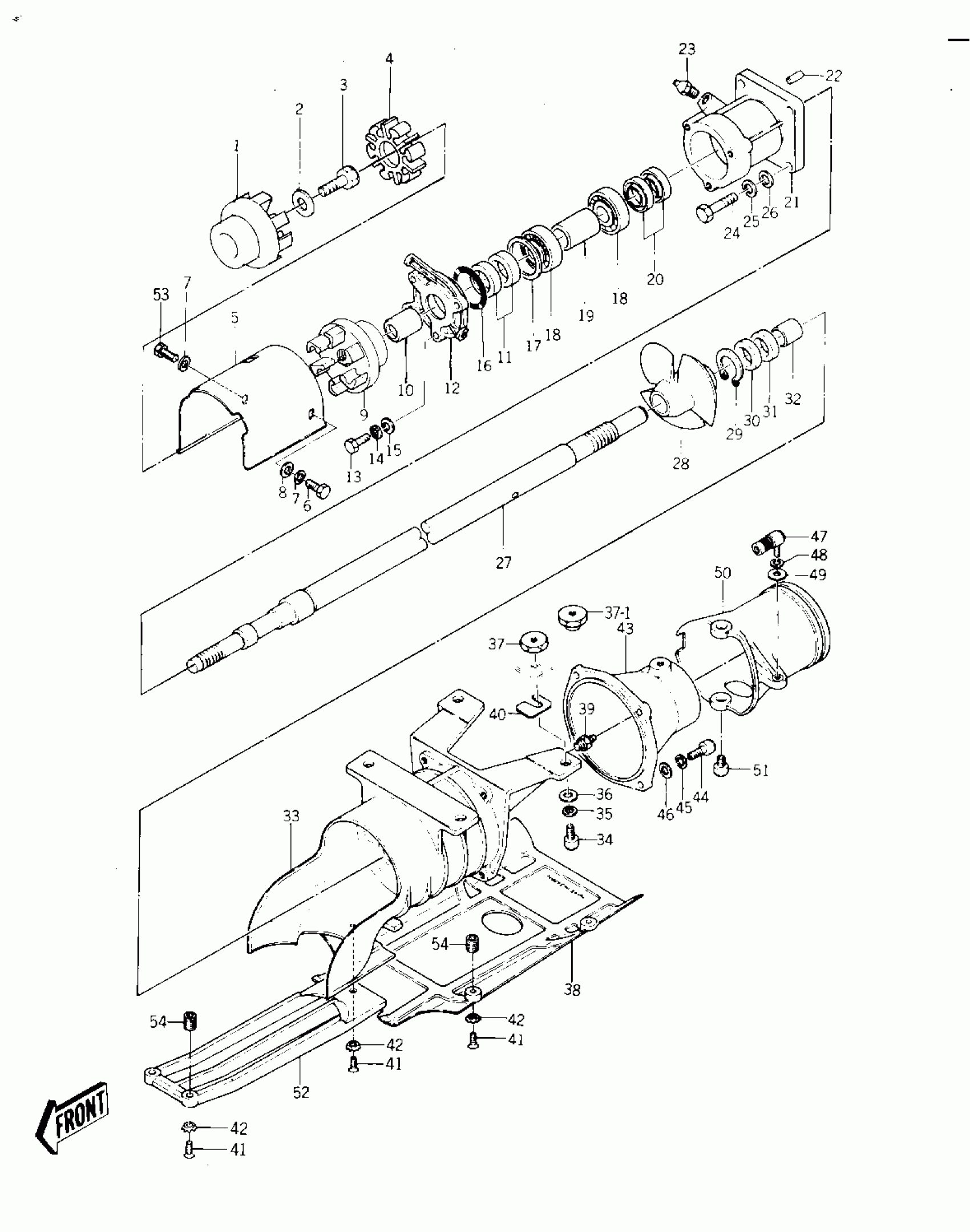

Kawasaki JS440 DRIVE SHAFT/JET PUMP ('77-'78 A1/A1A/A2) Diagram
#
1
UNAVAILABLE IN PRICE BOOK
42063-3001
Unavailable
2
WASHER,6.0T
92022-568
Unavailable
3
BOLT,1/2 INCHX27
92003-537
Unavailable
4
DAMPER,COUPLING
92075-520
Unavailable
5
COVER,COUPLING
59036-567
Unavailable
5
COVER,COUPLING
59036-567
Unavailable
6
BOLT 6X12
110R0612
Unavailable
7
WASHER-SPRING,6MM
461S0600
Unavailable
8
WASHER-PLAIN,6MM
411S0600
Unavailable
9
COUPLING
42034-3706
Unavailable
10
SLEEVE,BEARING
42036-501
Unavailable
11
SEAL-OIL,AC1799EX
92050-501
Unavailable
12
COVER,BEARING
14025-3008
Unavailable
13
BOLT,8X25
110R0825
Unavailable
14
WASHER SPRING 8MM
461S0800
Unavailable
15
WASHER-PLAIN,8MM
411S0800
Unavailable
16
RING-O
92055-501
Unavailable
17
SHIM,T=0.15
92025-502
Unavailable
17
SHIM,T=0.3
92025-503
Unavailable
18
BEARING-BALL,#6305C3
601B6305
Unavailable
19
COLLAR
92027-502
Unavailable
20
SEAL-OIL,AC1799EX
92050-501
Unavailable
21
HOUSING-BEARING
41046-502
Unavailable
22
PIN-DOWEL
551R0612
Unavailable
23
FITTING,GREASE
92005-501
Unavailable
24
BOLT,8X25
110R0825
Unavailable
25
WASHER SPRING 8MM
461S0800
Unavailable
26
WASHER-PLAIN,8MM
411S0800
Unavailable
27
SHAFT,DRIVE
59111-515
Unavailable
28
IMPELLER
59256-504
Unavailable
29
RING-SNAP
92036-502
Unavailable
30
SEAL-OIL,SC20367
92050-503
Unavailable
31
SEAL-OIL,SCY20368
92050-502
Unavailable
32
BUSHING
92028-503
Unavailable
33
CASE-PUMP
59336-3701
Unavailable
34
BOLT-SOCKET
120R1025
Unavailable
35
WASHER-SPRING,10MM
461S1000
Unavailable
36
WASHER-PLAIN,10MM
411S1000
Unavailable
37
NUT 10M/M
92015-527
Unavailable
37-1
NUT,10MM
92015-3005
Unavailable
38
COVER,PUMP
59036-558
Unavailable
39
FITTING,GREASE
92005-501
Unavailable
40
SHIM,T=0.3MM
92025-3701
Unavailable
40
SHIM,T=0.3MM
92025-3701
Unavailable
40
SHIM,T=0.5MM
92025-3702
Unavailable
40
SHIM,T=1.0MM
92025-3703
Unavailable
41
SCREW 6X16
92011-563
Unavailable
42
WASHER
92095-512
Unavailable
43
NOZZLE-PUMP
59136-3001
Unavailable
43
NOZZLE-PUMP
59136-3001
Unavailable
44
BOLT,8X22
92003-528
Unavailable
45
WASHER SPRING 8MM
461S0800
Unavailable
46
WASHER
92022-562
Unavailable
47
JOINT-BALL
59266-3707
Unavailable
48
WASHER-SPRING,6MM
461S0600
Unavailable
49
WASHER
92022-567
Unavailable
50
NOZZLE-STRG
59476-3702
Unavailable
51
BOLT 6X11
92003-532
Unavailable
52
GRATE
59366-3001
Unavailable
53
BOLT,6X16
110R0616
Unavailable
54
NUT,INSERT,6MM
92015-523
Unavailable
