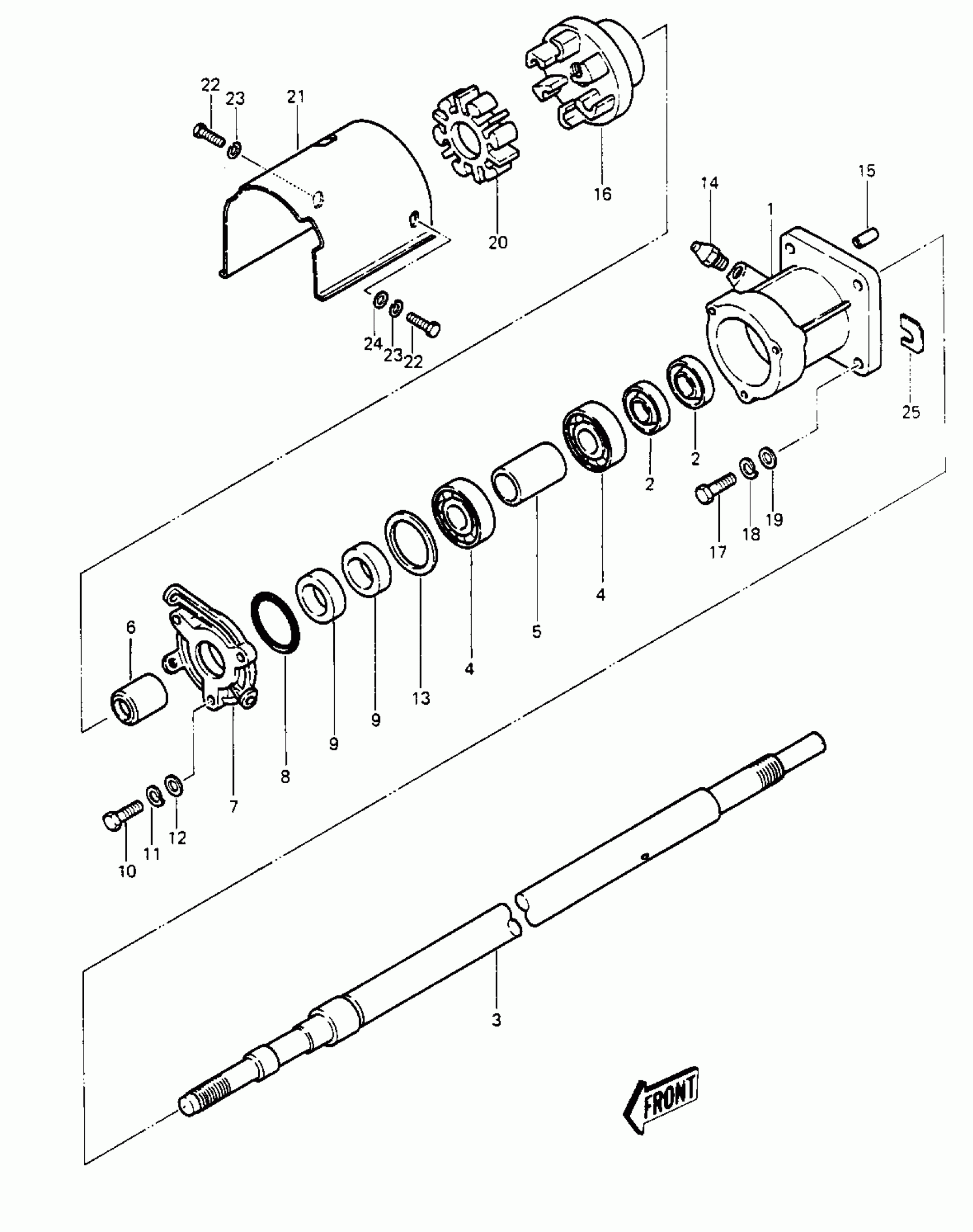

Kawasaki JS440 DRIVE SHAFT ('84-'86 JS440-A8/A9/A10) Diagram
#
Description
Price
1
HOUSING-BEARING
41046-502
$169.04
2
SEAL-OIL,AC1799EX
92050-501
Unavailable
3
SHAFT,DRIVE
59111-515
$596.58
4
BEARING-BALL,#6305C3
601B6305
$25.78
5
COLLAR
92027-502
$15.69
6
SLEEVE,BEARING
42036-501
Unavailable
7
COVER,BEARING
14025-3008
Unavailable
8
RING-O
92055-501
Unavailable
9
SEAL-OIL,AC1799EX
92050-501
Unavailable
10
BOLT,8X25
110R0825
$2.43
11
WASHER SPRING 8MM
461S0800
$0.65
12
WASHER-PLAIN,8MM
411S0800
$3.09
13
SHIM,T=0.15
92025-502
Unavailable
13
SHIM,T=0.3
92025-503
Unavailable
14
FITTING,GREASE
92005-501
Unavailable
15
PIN-DOWEL
551R0612
$4.69
16
COUPLING
42034-3706
Unavailable
17
BOLT,8X25
110R0825
$2.43
18
WASHER SPRING 8MM
461S0800
$0.65
19
WASHER-PLAIN,8MM
411S0800
$3.09
20
DAMPER,COUPLING
92075-520
$91.03
21
COVER,COUPLING
59036-567
Unavailable
22
BOLT,6X16
110R0616
$3.13
23
WASHER-SPRING,6MM
461S0600
$1.07
24
WASHER-PLAIN,6MM
411S0600
$2.06
25
SHIM,T=0.3MM
92025-3701
Unavailable
25
SHIM,T=0.5MM
92025-3702
Unavailable
25
SHIM,T=1.0MM
92025-3703
Unavailable
25
SHIM,T=1.5MM
92025-3704
Unavailable
