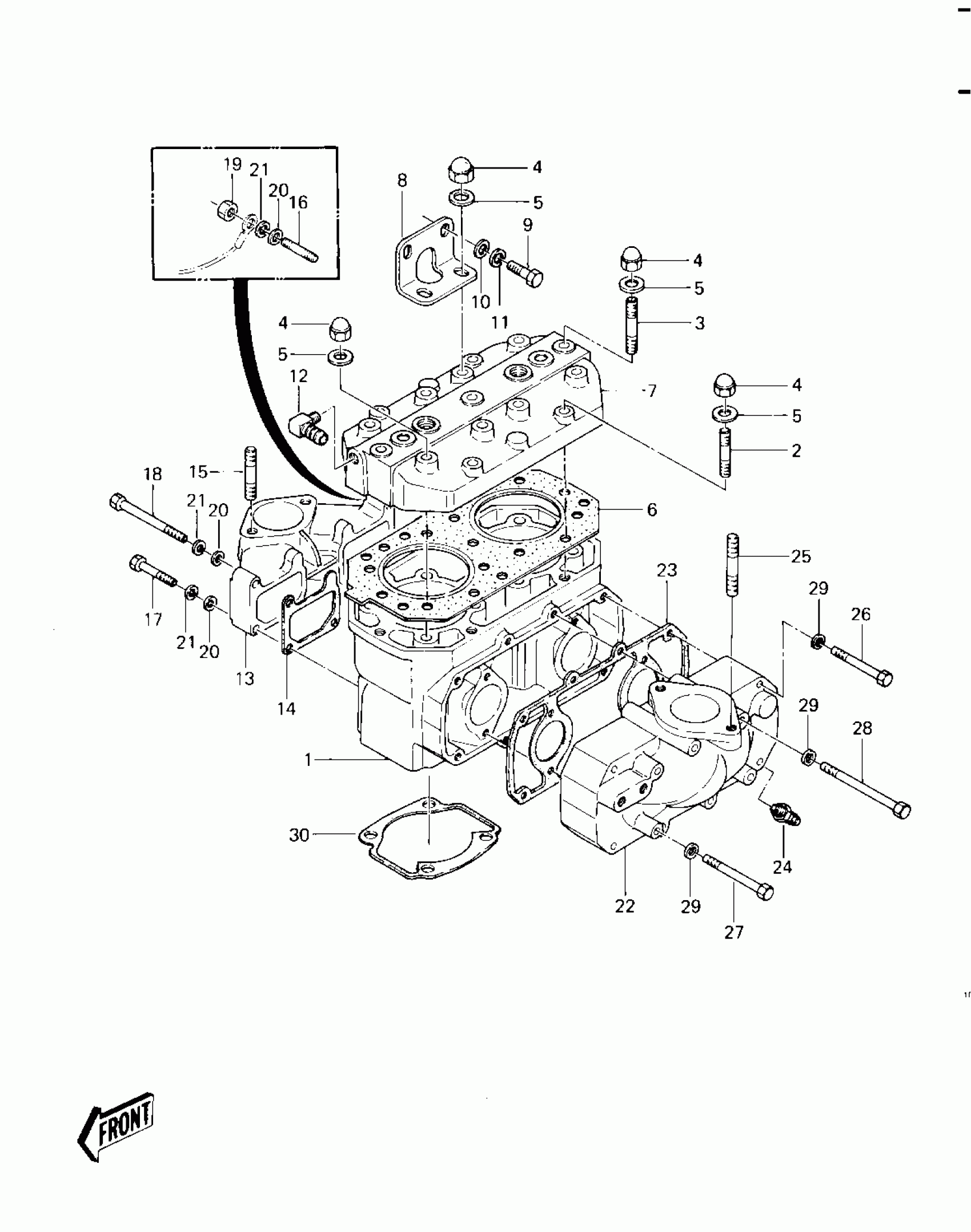

Kawasaki JS440 CYLINDER HEAD/CYLINDER ('82-'83 JS440-A6 Diagram
#
Description
Price
1
CYLINDER-ENGINE
11005-3704
Unavailable
2
STUD,8X42
92004-3016
Unavailable
3
STUD,8X50
92004-3017
Unavailable
4
NUT-CAP,8MM
92015-3003
$6.60
5
WASHER-PLAIN,8MM
411S0800
$3.09
6
GASKET-HEAD
11004-3707
Unavailable
7
HEAD-COMP-CYLINDER
11008-3002-YR
Unavailable
8
BRACKET
11034-3011
Unavailable
9
BOLT,6X14
110R0614
$3.40
10
WASHER-PLAIN,6MM
411S0600
$2.06
11
WASHER-SPRING,6MM
461S0600
$1.07
12
ELBOW
52014-3002
$34.82
13
MANIFOLD-INTAKE
59076-505-YR
Unavailable
14
GASKET,INTAKE
11009-3785
$5.11
15
BOLT-STUD,8X35
172R0835
$5.33
16
BOLT-STUD,6X35
171R0635
$5.69
17
BOLT 6X35
110R0635
Unavailable
18
BOLT,6X70
110R0670
$7.51
19
NUT-HEX,6MM
311R0600
$0.70
20
WASHER-PLAIN-SMALL,6MM
410S0600
$0.78
21
WASHER-SPRING,6MM
461S0600
$1.07
22
MANIFOLD-EXHAUST
59081-504-YR
$249.30
23
GASKET,EXHAUST MANIFOLD
11009-3779
$27.79
24
FITTING,HOSE
92005-3001
$10.88
25
BOLT-STUD,8X35
172R0835
$5.33
26
BOLT,6X50
110R0650
$4.67
27
BOLT,6X70
110R0670
$7.51
28
BOLT,6X85
110R0685
$1.41
29
WASHER-PLAIN-SMALL,6MM
410S0600
$0.78
30
UNAVAILABLE IN PRICE BOOK
11009505
Unavailable
