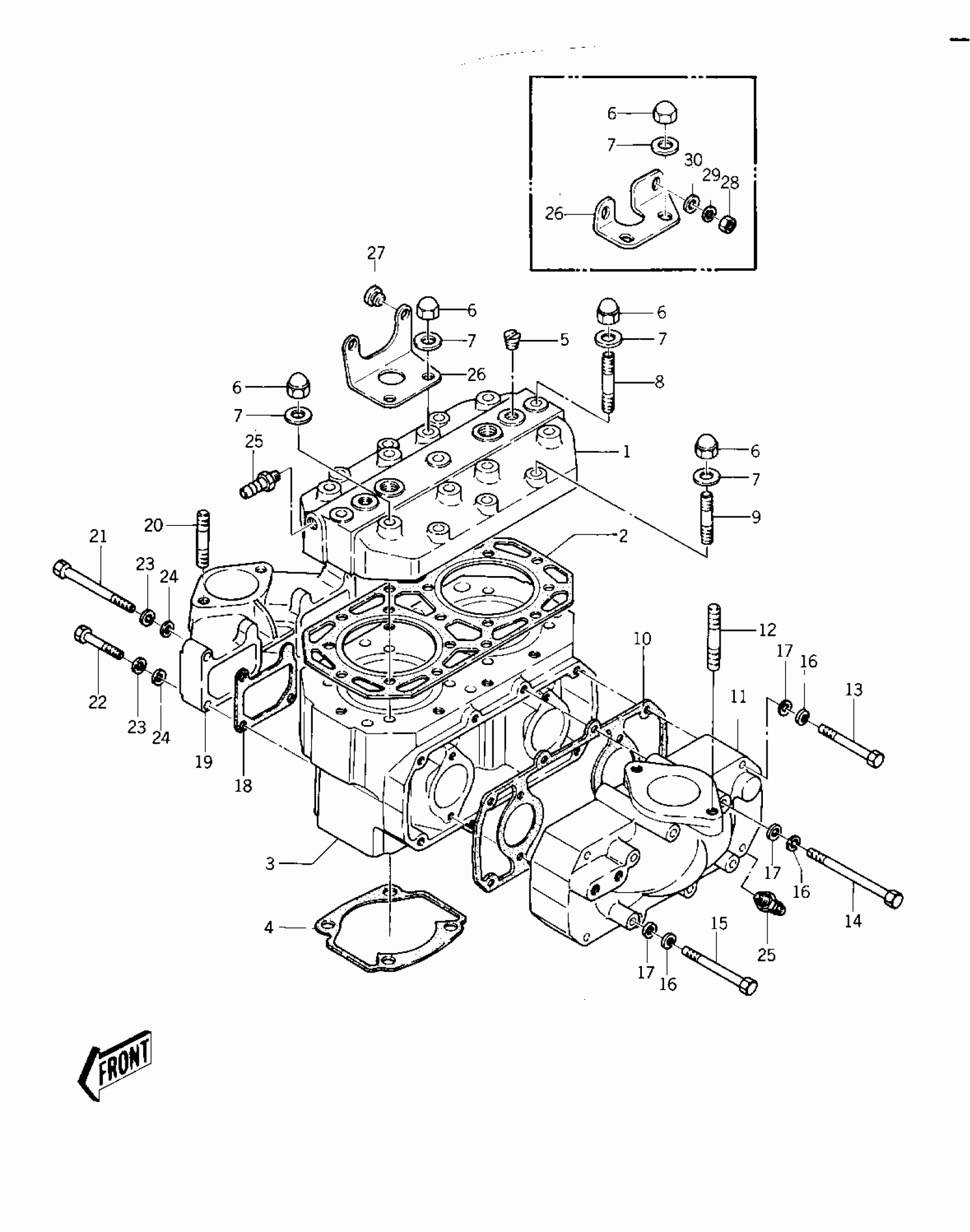

Kawasaki JS440 CYLINDER HEAD/CYLINDER ('77-'78 A1/A1A/A Diagram
#
1
HEAD ASSY,CYLINDER
49086-3001
Unavailable
2
GASKET-HEAD
11004-3711
Unavailable
3
CYLINDER ASSY
11005-3033
Unavailable
4
GASKET-CYLINDER
11009-505
Unavailable
5
PLUG,CYLINDER HEAD
92066-3001
Unavailable
5
PLUG,CYLINDER HEAD
92066-3001
Unavailable
6
NUT-CAP,8MM
92015-3003
Unavailable
7
WASHER-PLAIN,8MM
411S0800
Unavailable
8
STUD,8X50
92004-3010
Unavailable
9
STUD,8X42
92004-3009
Unavailable
10
GASKET,EXHAUST MANIFOLD
11009-3779
Unavailable
11
MANIFOLD-EXHAUST
59081-504-YR
Unavailable
12
STUD
172R0834
Unavailable
13
BOLT 6X55
110R0655
Unavailable
14
BOLT 6X90
110R0690
Unavailable
15
BOLT 6X75
110R0675
Unavailable
16
WASHER-SPRING,6MM
461S0600
Unavailable
17
WASHER-PLAIN-SMALL,6MM
410S0600
Unavailable
18
GASKET,INTAKE
11009-3785
Unavailable
19
MANIFOLD,INTAKE
59076-508
Unavailable
19
MANIFOLD-INTAKE
59076-505-YR
Unavailable
20
STUD
172R0822
Unavailable
20
STUD
172R0834
Unavailable
21
BOLT,6X70
110R0670
Unavailable
22
BOLT 6X35
110R0635
Unavailable
23
WASHER-SPRING,6MM
461S0600
Unavailable
24
WASHER-PLAIN-SMALL,6MM
410S0600
Unavailable
25
FITTING,HOSE
92005-3001
Unavailable
25
FITTING,HOSE
92005-3001
Unavailable
26
BRACKET,CARBURETOR
59016-559
Unavailable
26
BRACKET,CARBURETOR
11034-3002
Unavailable
27
DAMPER
92075-523
Unavailable
28
NUT-HEX,6MM
311R0600
Unavailable
29
WASHER-SPRING,6MM
461S0600
Unavailable
30
WASHER,PLAIN,6M/M
92022-3018
Unavailable
