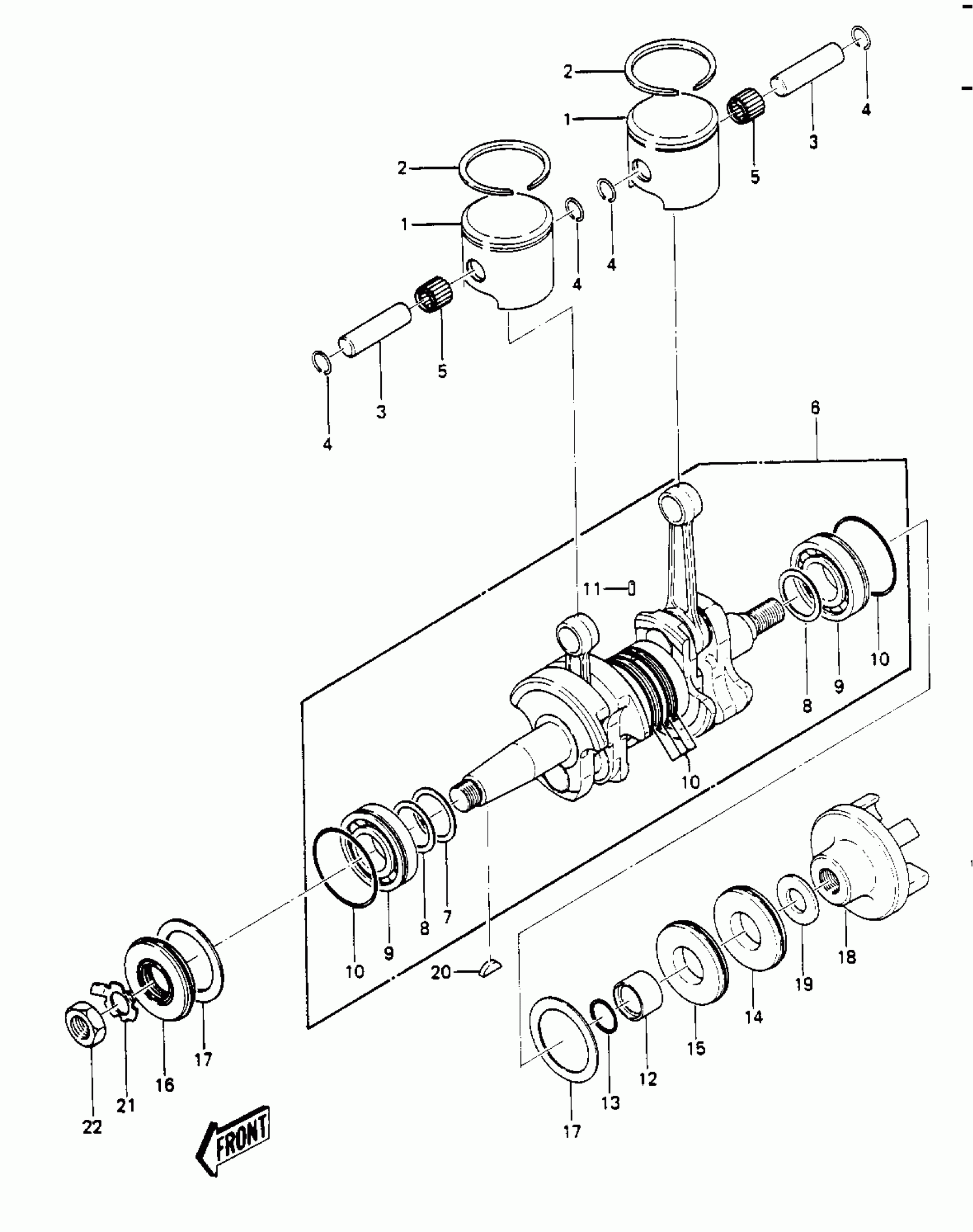

Kawasaki JS440 CRANKSHAFT/PISTONS ('84-'86 JS440-A8/A9/ Diagram

#

Description
Price

1

PISTON-ENGINE

13001-3017

$134.78

1

PISTON-ENGINE L,O/S 0.50MM

13029-3001

Unavailable

2

RING-PISTON TOP

13003-3014

Unavailable

2

RING-PISTON TOP,O/S 0.50MM

13003-3015

Unavailable

3

PIN-PISTON

13002-504

$13.02

4

CIRCLIP PISTON PIN

92036-004

$0.65

5

BEARING-NEEDLE,KBK16X20X22.8X6

13033-3005

$21.61

6

CRANKSHAFT-COMP

13031-3011

Unavailable

7

SHIM,T=1.0MM

92025-532

$2.47

8

SHIM,T=0.1

92025-513

Unavailable

8

SHIM,T=0.2

92025-518

Unavailable

8

SHIM,T=0.3

92025-523

Unavailable

8

SHIM,T=0.4

92025-527

Unavailable

8

SHIM,T=0.5

92025-530

Unavailable

8

SHIM,T=0.6

92025-533

Unavailable

9

BEARING-BALL,6206NC3

92045-505

Unavailable

10

RING-O

92055-504

Unavailable

11

PIN-DOWEL,4X10

551A0410

$0.65

12

SLEEVE,CRANKSHAFT OUT

42036-3007

Unavailable

13

RING-O,22MM

92055-3009

Unavailable

14

SEAL-OIL,OIL,TCY306210

92049-3005

$72.79

15

SEAL-OIL,OIL,DCY30629

92049-3006

$19.39

16

SEAL-OIL,TCY306210

92050-507

Unavailable

17

WASHER,CRANK,RH

92022-3021

$5.68

18

COUPLING

42034-3706

Unavailable

19

WASHER,18.5X38X4

92022-3028

Unavailable

20

WOODRUFF KEY

510A5200

$2.82

21

WASHER,LOCK,20MM

92022-569

$4.50

22

NUT,20MM

92015-535

$7.64
