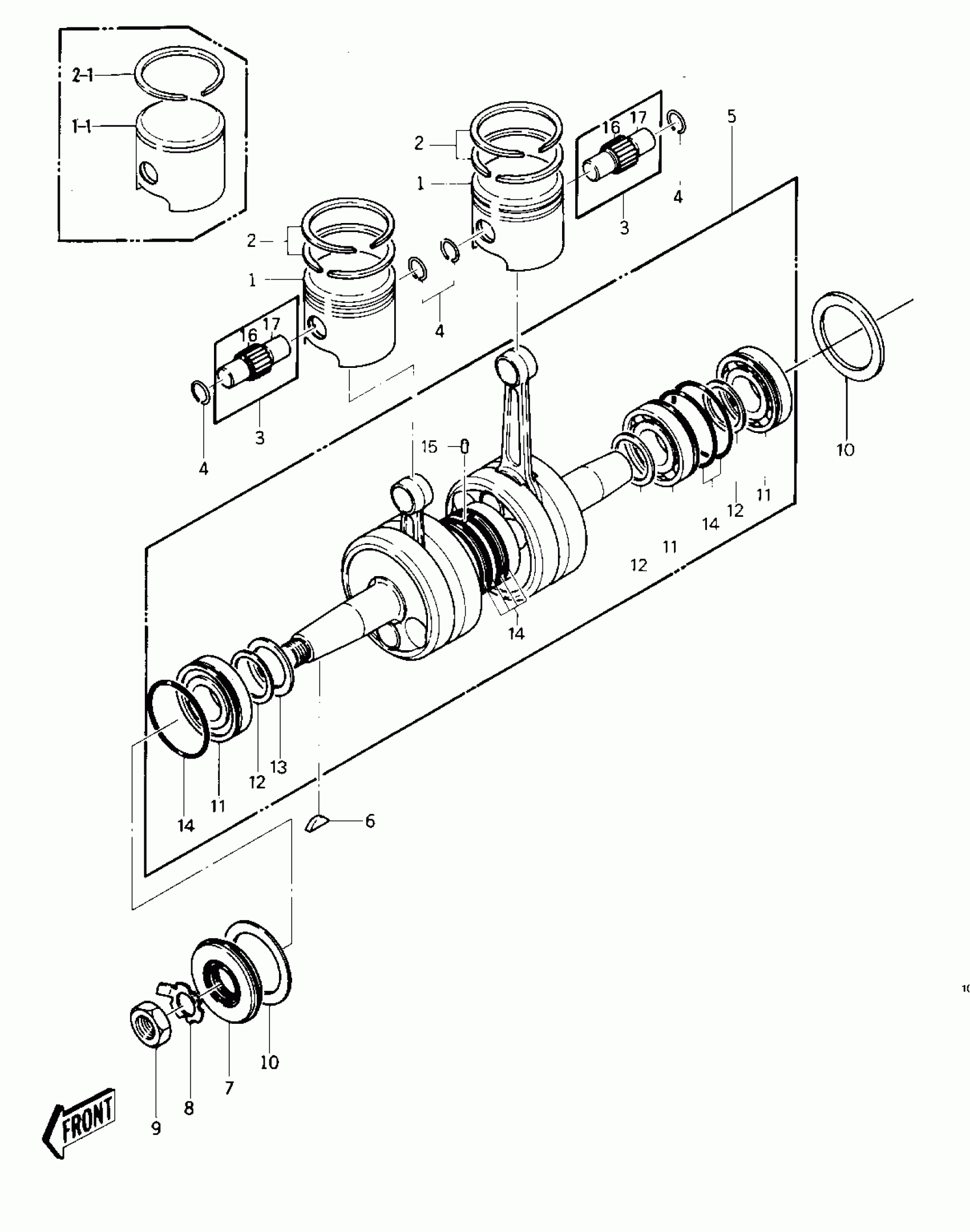

Kawasaki JS440 CRANKSHAFT/PISTONS ('77-'78 A1/A1A/A2) Diagram
#
Description
Price
1
PISTON-ENGINE,STD
13001-6001
Unavailable
1
PISTON,0.25,O.S.
13030-502
Unavailable
1-1
PISTON-ENGINE
13001-3017
Unavailable
1-1
PISTON-ENGINE L,O/S 0.50MM
13029-3001
Unavailable
2
PISTON RING SET
13008-530
Unavailable
2
PISTON RING SET,0.25
13026-502
Unavailable
2-1
RING-PISTON TOP
13003-3014
Unavailable
2-1
RING-PISTON TOP,O/S 0.50MM
13003-3015
Unavailable
3
PISTON PIN SET
59146-503
Unavailable
4
CIRCLIP PISTON PIN
92036-004
Unavailable
4
CIRCLIP PISTON PIN
92036-004
Unavailable
5
CRANKSHAFT ASSY
13036-523
Unavailable
6
WOODRUFF KEY
510A5200
Unavailable
7
SEAL-OIL,TCY306210
92050-507
Unavailable
8
WASHER,LOCK,20MM
92022-569
Unavailable
9
NUT,20MM
92015-535
Unavailable
10
WASHER,CRANK,RH
92022-3021
Unavailable
11
BEARING-BALL,6206NC3
92045-505
Unavailable
12
SHIM,T=0.1
92025-513
Unavailable
12
SHIM,T=0.2
92025-518
Unavailable
12
SHIM,T=0.3
92025-523
Unavailable
12
SHIM,T=0.4
92025-527
Unavailable
12
SHIM,T=0.5
92025-530
Unavailable
12
SHIM,T=0.6
92025-533
Unavailable
13
SHIM,T=1.0MM
92025-532
Unavailable
14
RING-O
92055-504
Unavailable
15
PIN-DOWEL,4X10
551A0410
Unavailable
16
BEARING-NEEDLE,KBK16X20X22.8X6
13033-3005
Unavailable
16
BEARING-NEEDLE,KBK16X20X22.8X6
13033-3005
Unavailable
17
PIN-PISTON
13002-504
Unavailable
