Description

Price

1

SET-CRANKCASE

14001-5265

Unavailable

1

SET-CRANKCASE

14001-5265

Unavailable

2

BOLT,8X60

92001-3033

Unavailable

3

WASHER-PLAIN-SMALL,8MM

410S0800

$2.58

4

PIN,DOWEL,6.3X8X14

92042-007

$5.70

5

STUD,8X167

92004-507

$11.39

6

BOLT 6X40

110R0640

$5.78

7

WASHER-PLAIN-SMALL,6MM

410S0600

$0.78

8

WASHER-SPRING,6MM

461S0600

$1.07

9

JOINT

59071-516

Unavailable

10

O RING,16MM

670B2016

$1.36

11

SHIM,STARTER,T=0.4

92025-3012

Unavailable

11

SHIM,STARTER,T=0.6

92025-3013

Unavailable

11

SHIM,STARTER,T=0.8

92025-3014

Unavailable

12

BOLT,6X20

110R0620

$5.31

13

WASHER-PLAIN-SMALL,6MM

410S0600

$0.78

14

WASHER-SPRING,6MM

461S0600

$1.07

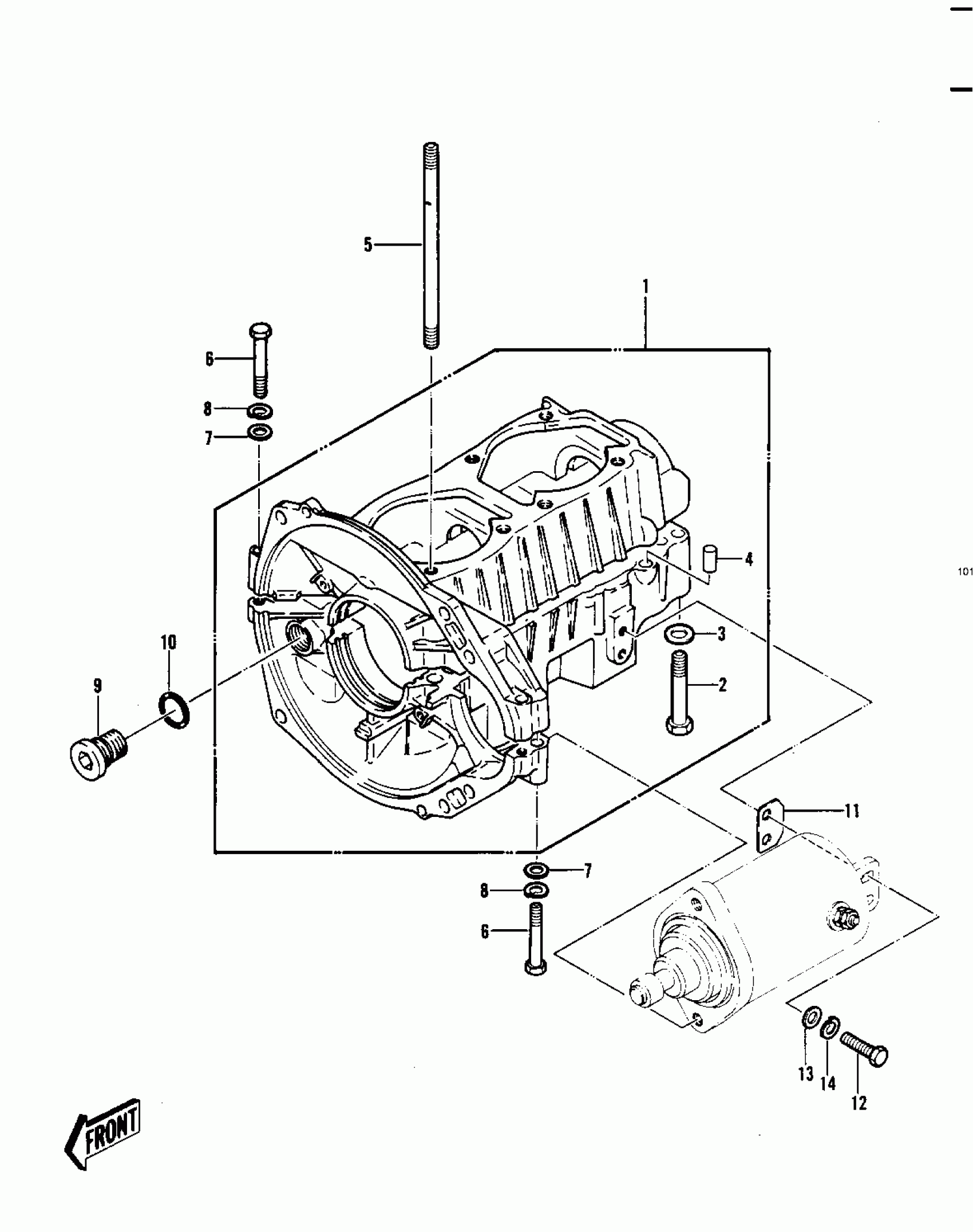

Kawasaki JS440 CRANKCASE ('82-'83 JS440-A6/A7) Diagram

SET-CRANKCASE

SET-CRANKCASE

BOLT,8X60

WASHER-PLAIN-SMALL,8MM

PIN,DOWEL,6.3X8X14

STUD,8X167

BOLT 6X40

WASHER-PLAIN-SMALL,6MM

WASHER-SPRING,6MM

JOINT

O RING,16MM

SHIM,STARTER,T=0.4

SHIM,STARTER,T=0.6

SHIM,STARTER,T=0.8

BOLT,6X20

WASHER-PLAIN-SMALL,6MM

WASHER-SPRING,6MM
