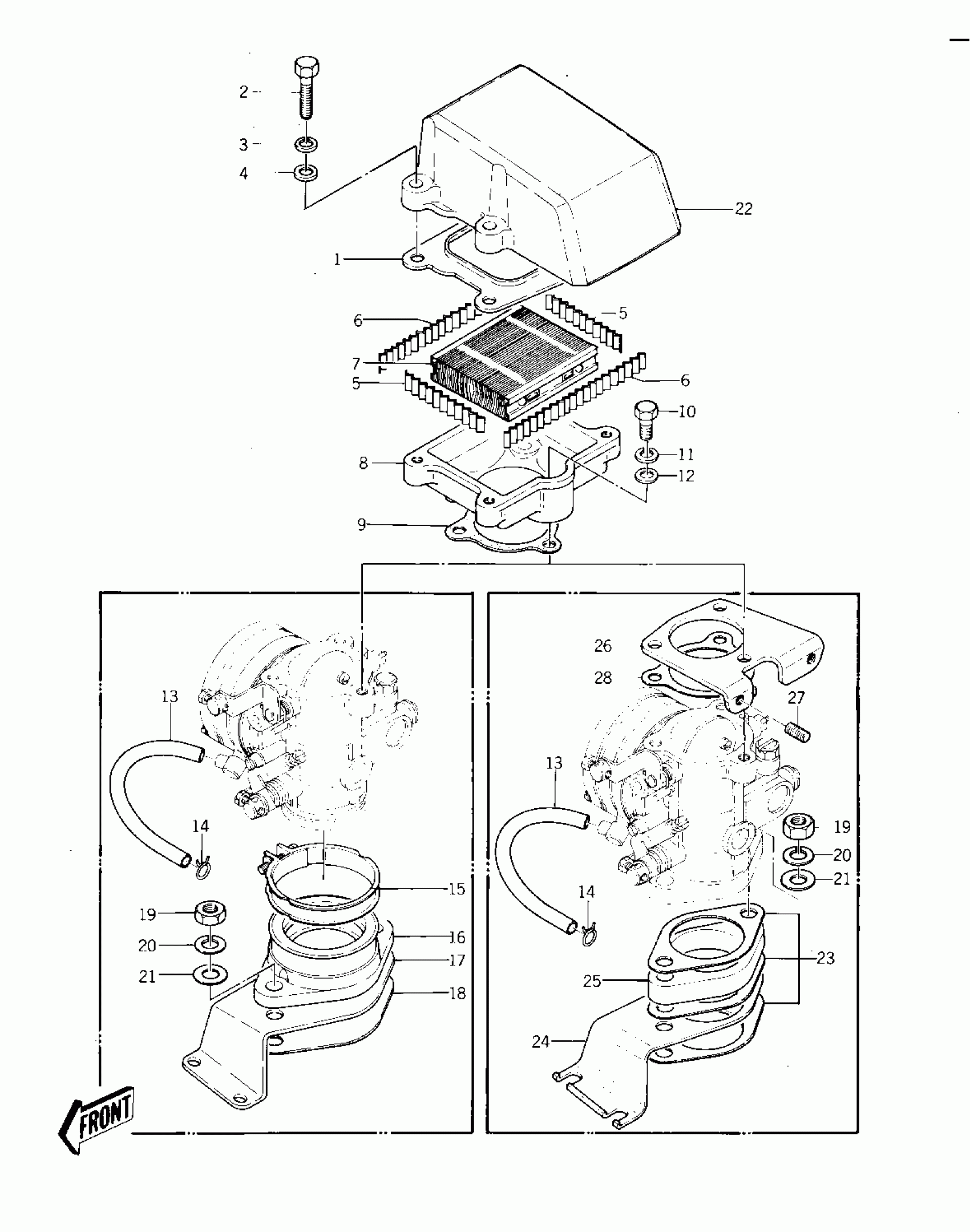

Kawasaki JS440 CARBURETOR BRACKETS/FLAME ARRESTER ('77- Diagram
#
Description
Price
1
PLATE,FLAME ARRESTER
59086-540
Unavailable
2
BOLT,6X28
110R0628
Unavailable
3
WASHER-SPRING,6MM
461S0600
Unavailable
4
WASHER-PLAIN-SMALL,6MM
410S0600
Unavailable
5
SPRING
92081-544
Unavailable
6
SPRING
92081-545
Unavailable
7
ARRESTER,FLAME
59006-502
Unavailable
8
CASE,FLAME ARRESTER
59021-527-9G
Unavailable
9
GASKET,ARRESTER CASE
11060-3702
Unavailable
10
BOLT,6X20
110R0620
Unavailable
10
BOLT,6X25
110R0625
Unavailable
11
WASHER-SPRING,6MM
461S0600
Unavailable
12
WASHER-PLAIN-SMALL,6MM
410S0600
Unavailable
13
TUBE,PULS
92059-518
Unavailable
14
CLAMP
92037-1173
Unavailable
15
CLAMP
92037-550
Unavailable
15
CLAMP
92037-550
Unavailable
16
HOLDER-CARBURETOR
16065-516
Unavailable
17
BRACKET,CONTROL
59016-558
Unavailable
17
BRACKET,CONTROL
59016-558
Unavailable
18
GASKET,INTAKE
16062-521
Unavailable
19
NUT-HEX,8MM
312R0800
Unavailable
20
WASHER SPRING 8MM
461S0800
Unavailable
21
WASHER-PLAIN-SMALL,8MM
410S0800
Unavailable
22
COVER,AIR INTAKE
59036-563
Unavailable
23
GASKET,INSULATOR
11009-3786
Unavailable
24
BRACKET,CONTROL
11034-3004
Unavailable
25
INSULATOR
16061-511
Unavailable
26
BRACKET,CARBURETOR
11034-3003
Unavailable
27
STUD,6X12
171R0612
Unavailable
28
GASKET,ARRESTER CASE
11060-3702
Unavailable
