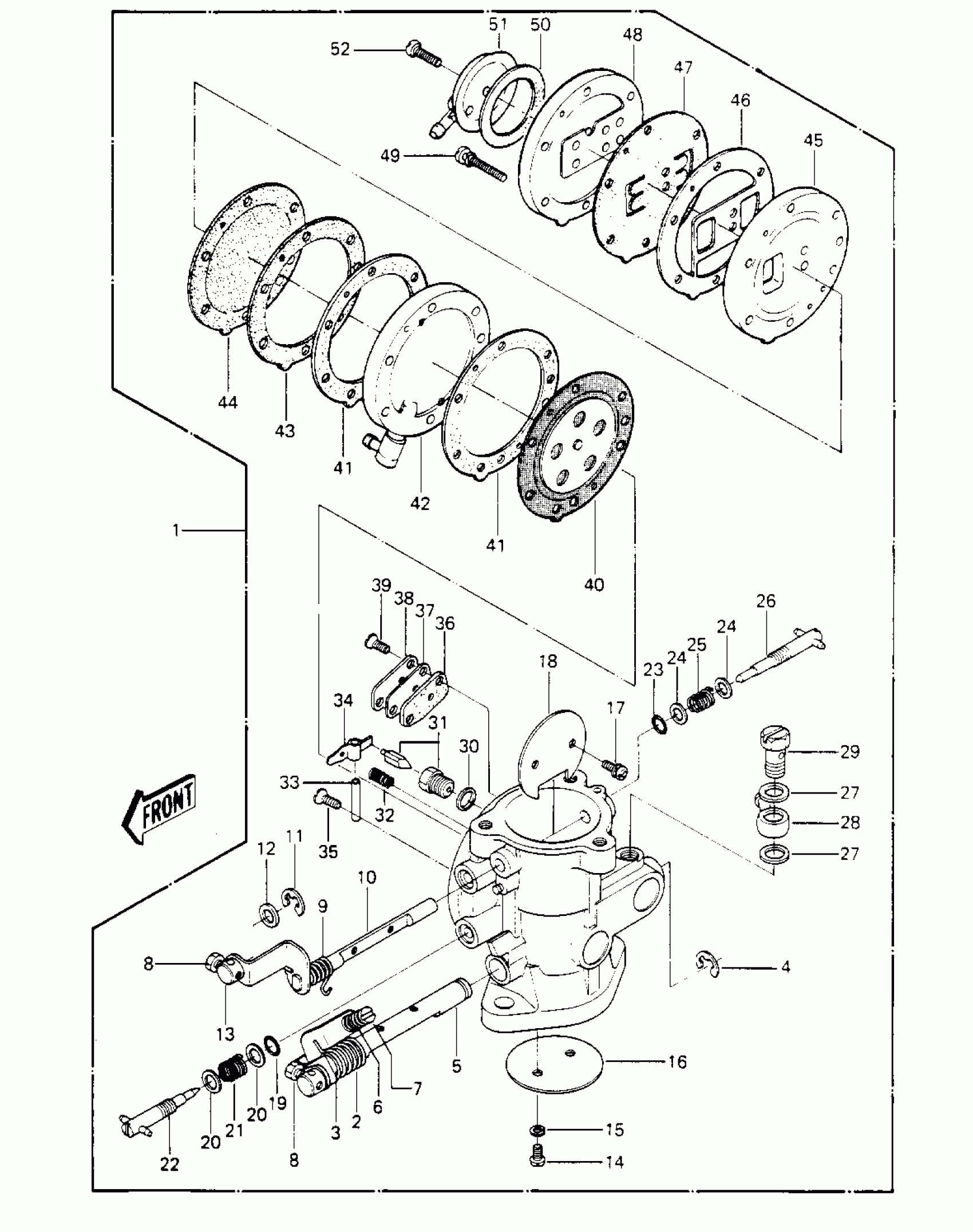

Kawasaki JS440 CARBURETOR ('84-'86 JS440-A8/A9/A1 Diagram

#

Description
Price

1

CARBURETOR

16001-3003-YR

$383.00

2

SPRING,THROTTLE SHAFT

92081-547

$6.59

3

BUSHING,THRTLE SHAFT

92028-514

$26.24

4

CIRCLIP,5M/M,SUS304

92033-3004

Unavailable

5

THROTTLE SHAFT ASSY

16041-3001

$95.70

6

SPRING,CABLE PULLY

16040-022

Unavailable

7

SCREW,4X20

92009-3009

$6.64

8

BOLT,4X8

92001-3026

Unavailable

9

SPRING

92081-525

Unavailable

10

CHOKE SHAFT ASS'Y

59111-513

$27.90

11

CIRCLIP,5M/M,SUS304

92033-3004

Unavailable

12

WASHER,PLAIN,6NYLON

92022-3020

Unavailable

13

TERMINAL,CHOKE SHAFT

21169-3008

Unavailable

14

SCREW-PAN-CROS,3X6

220B0306

$0.63

15

WASHER SPRING 3MM

461F0300

$0.46

16

VALVE,THROTTLE

16025-503

$43.92

17

SCREW 3X5

92011-517

Unavailable

18

VALVE,CHOKE

16126-3001

Unavailable

19

"0" RING

92055-510

Unavailable

20

WASHER

92022-537

Unavailable

21

SPRING

92081-528

Unavailable

22

SCREW,LOW SPEED

16009-3001

Unavailable

23

"0" RING,DRAIN PLUG

92055-1093

$7.29

24

WASHER

92065-528

Unavailable

25

SPRING

92081-534

Unavailable

26

NEEDLE-JET,HIGH SPEED

16009-3002

Unavailable

27

GASKET-BANJO BOLT

92065-078

Unavailable

28

BANJO-CARB

59071-505

$29.91

29

BOLT,BANJO

92003-521

Unavailable

30

WASHER FLOAT VLV SEAT

16029-004

$3.89

31

VALVE-SEAT

16030-503

Unavailable

32

SPRING

92081-536

Unavailable

33

FLOAT PIN

16032-006

$7.29

34

ARM

59001-506

Unavailable

35

SCREW 3X7

92011-516

Unavailable

36

GASKET

11060-3706

Unavailable

37

DIAPHRAGM,CHECK SEAT

51069-501

Unavailable

38

PLATE-CARB. SIDE

59086-541

$14.92

39

SCREW 3X7

92011-516

Unavailable

40

DIAPHRAGM,MAIN

51069-502

$8.87

41

GASKET

11060-3704

Unavailable

42

BODY,DIAPHRAGM(1)

59021-514

$140.05

43

GASKET

11009-3036

Unavailable

44

DIAPHRAGM,PUMP

43028-3002

Unavailable

45

BODY,DIAPHRAGM(2)

59336-3002

Unavailable

46

GASKET

11060-3705

Unavailable

47

DIAPHRAGM,PUMP

43028-3001

Unavailable

48

BODY,DIAPHRAGM(3)

59336-3003

$77.43

49

SCREW 4X30

92011-515

Unavailable

50

GASKET

92065-526

$15.19

51

COVER-CARB. SIDE

59036-530

$14.79

52

SCREW 4X12

92011-510

$7.65
