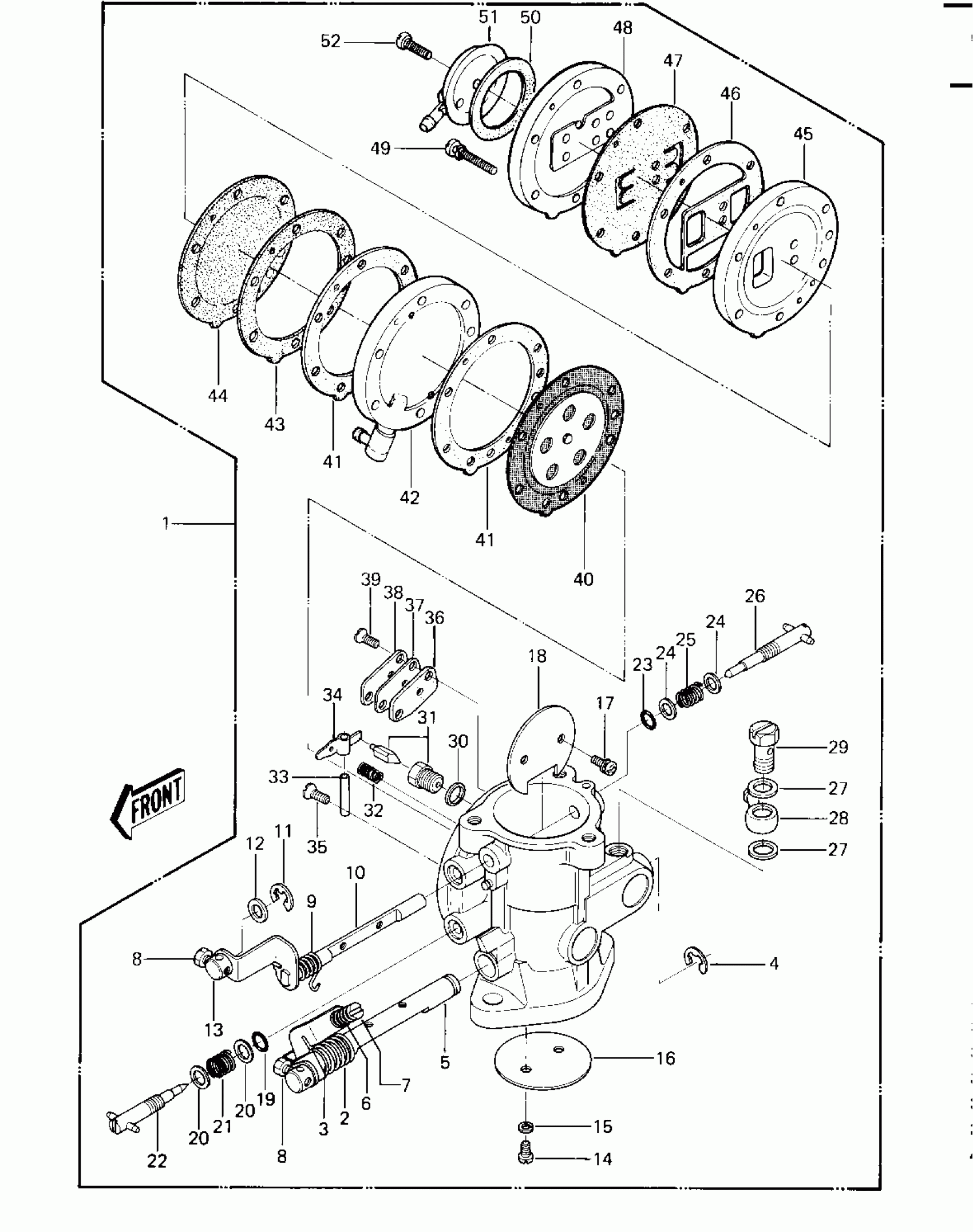

Kawasaki JS440 CARBURETOR ('82-'83 JS440-A6/A7) Diagram
#
1
CARBURETOR
16001-3003-YR
$383.00
2
SPRING,THROTTLE SHAFT
92081-547
$6.59
3
BUSHING,THRTLE SHAFT
92028-514
$26.24
4
CIRCLIP,5M/M,SUS304
92033-3004
Unavailable
5
THROTTLE SHAFT ASSY
16041-3001
$95.70
6
SPRING,CABLE PULLY
16040-022
Unavailable
7
SCREW,4X20
92009-3009
$6.64
8
BOLT,4X8
92001-3026
Unavailable
9
SPRING
92081-525
Unavailable
10
CHOKE SHAFT ASS'Y
59111-513
$27.90
11
CIRCLIP,5M/M,SUS304
92033-3004
Unavailable
12
WASHER,PLAIN,6NYLON
92022-3020
Unavailable
13
TERMINAL,CHOKE SHAFT
21169-3008
Unavailable
14
SCREW-PAN-CROS,3X6
220B0306
$0.63
15
WASHER SPRING 3MM
461F0300
$0.46
16
VALVE,THROTTLE
16025-503
$43.92
17
SCREW 3X5
92011-517
Unavailable
18
VALVE,CHOKE
16126-3001
Unavailable
19
"0" RING
92055-510
Unavailable
20
WASHER
92022-537
Unavailable
21
SPRING
92081-528
Unavailable
22
SCREW,LOW SPEED
16009-3001
Unavailable
23
"0" RING,DRAIN PLUG
92055-1093
$7.29
24
WASHER
92065-528
Unavailable
25
SPRING
92081-534
Unavailable
26
NEEDLE-JET,HIGH SPEED
16009-3002
Unavailable
27
GASKET-BANJO BOLT
92065-078
Unavailable
28
BANJO-CARB
59071-505
$29.91
29
BOLT,BANJO
92003-521
Unavailable
30
WASHER FLOAT VLV SEAT
16029-004
$3.89
31
VALVE-SEAT
16030-503
Unavailable
32
SPRING
92081-536
Unavailable
33
FLOAT PIN
16032-006
$7.29
34
ARM
59001-506
Unavailable
35
SCREW 3X7
92011-516
Unavailable
36
GASKET
11060-3706
Unavailable
37
UNAVAILABLE IN PRICE BOOK
51069-544
Unavailable
38
PLATE-CARB. SIDE
59086-541
$14.92
39
SCREW 3X7
92011-516
Unavailable
40
DIAPHRAGM,MAIN
51069-502
$8.87
41
GASKET
11060-3704
Unavailable
42
BODY,DIAPHRAGM(1)
59021-514
$140.05
43
GASKET
11009-3036
Unavailable
44
DIAPHRAGM,PUMP
43028-3002
Unavailable
45
BODY,DIAPHRAGM(2)
59336-3002
Unavailable
46
GASKET
11060-3705
Unavailable
47
DIAPHRAGM,PUMP
43028-3001
Unavailable
48
BODY,DIAPHRAGM(3)
59336-3003
$77.43
49
SCREW 4X30
92011-515
Unavailable
50
GASKET
92065-526
$15.19
51
COVER-CARB. SIDE
59036-530
$14.79
52
SCREW 4X12
92011-510
$7.65
