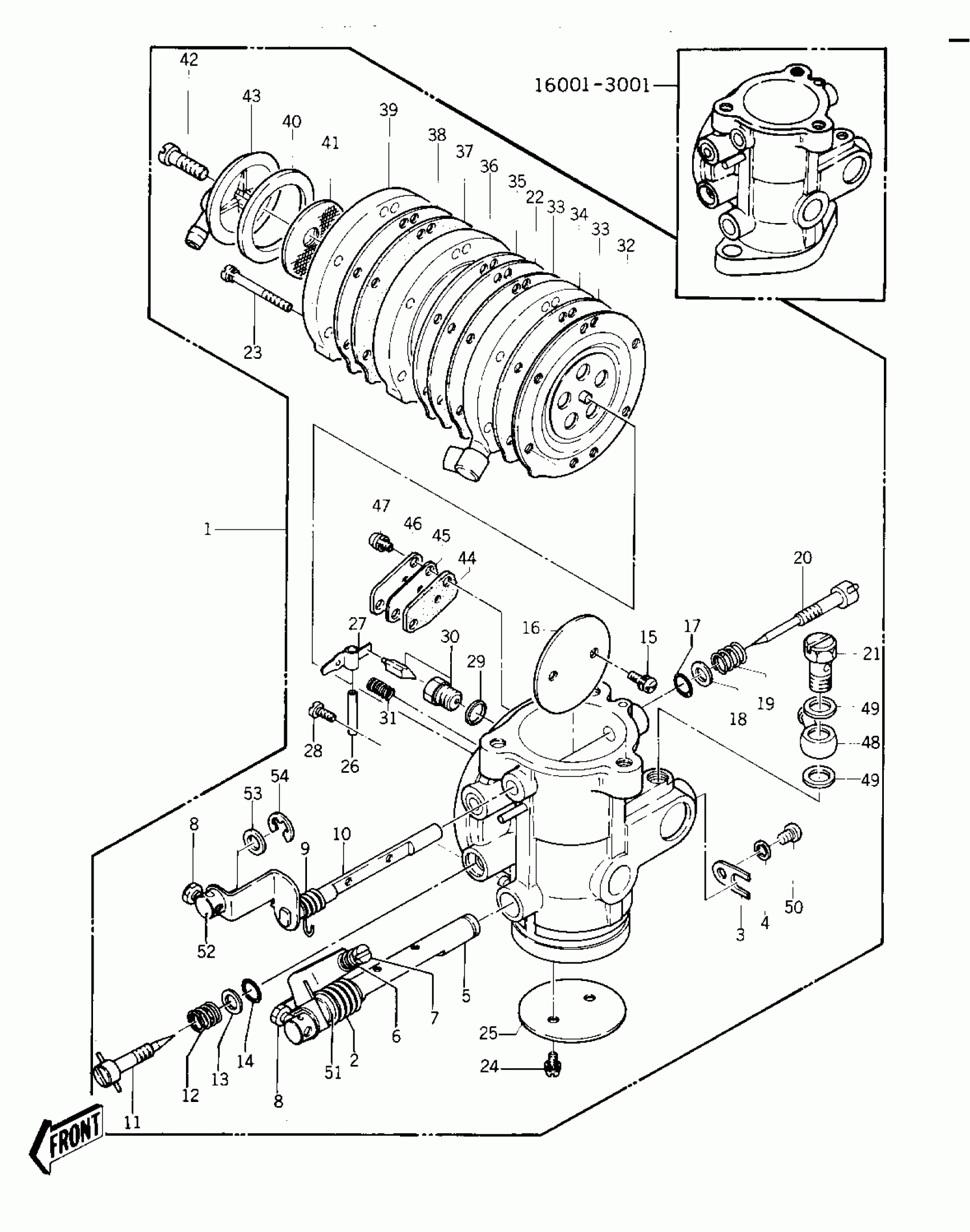

Kawasaki JS440 CARBURETOR ('77-'78 A1/A1A/A2) Diagram
#
1
CARBURETOR ASSY
16001-512
Unavailable
1
CARBURETOR
16001-3003-YR
Unavailable
2
SPRING,THROTTLE SHAFT
92081-547
Unavailable
3
PLATE,THROTTLE SHAFT
59086-543
Unavailable
4
WASHER SPRING 4MM
461F0400
Unavailable
5
THROTTLE SHAFT ASSY
59111-520
Unavailable
6
SPRING,CABLE PULLY
16040-022
Unavailable
7
SCREW,4X20
92009-3009
Unavailable
8
BOLT,4X8
92001-3026
Unavailable
9
SPRING
92081-525
Unavailable
10
CHOKE SHAFT ASS'Y
59111-513
Unavailable
11
SCREW,LOW SPEED
59271-506
Unavailable
12
SPRING
92081-528
Unavailable
13
WASHER
92022-537
Unavailable
14
"0" RING
92055-510
Unavailable
15
SCREW 3X5
92011-517
Unavailable
16
VALVE,CHOKE
16126-3001
Unavailable
17
"0" RING,DRAIN PLUG
92055-1093
Unavailable
18
WASHER
92065-528
Unavailable
19
SPRING
92081-534
Unavailable
20
SCREW,HIGH SPEED
59271-507
Unavailable
21
BOLT,BANJO
92003-521
Unavailable
22
GASKET
11009-3036
Unavailable
23
SCREW 4X30
92011-515
Unavailable
24
SCREW 3X7
92011-516
Unavailable
25
VALVE,THROTTLE
16025-503
Unavailable
26
FLOAT PIN
16032-006
Unavailable
27
ARM
59001-506
Unavailable
28
SCREW 3X7
92011-516
Unavailable
29
WASHER FLOAT VLV SEAT
16029-004
Unavailable
30
VALVE-SEAT
16030-503
Unavailable
31
SPRING
92081-536
Unavailable
32
DIAPHRAGM,MAIN
51069-502
Unavailable
33
GASKET
11060-3704
Unavailable
34
BODY,DIAPHRAGM(1)
59021-514
Unavailable
35
DIAPHRAGM,PUMP
43028-3002
Unavailable
36
BODY,DIAPHRAGM(2)
59336-3002
Unavailable
37
GASKET
11060-3705
Unavailable
38
DIAPHRAGM,PUMP
43028-3001
Unavailable
39
BODY,DIAPHRAGM(3)
59336-3003
Unavailable
40
GASKET
92065-526
Unavailable
41
FILTER
14037-504
Unavailable
42
SCREW 4X12
92011-510
Unavailable
43
COVER-CARB. SIDE
59036-530
Unavailable
44
GASKET
11060-3706
Unavailable
45
DIAPHRAGM,CHECK SEAT
51069-501
Unavailable
46
PLATE-CARB. SIDE
59086-541
Unavailable
47
SCREW 3X7
92011-516
Unavailable
48
BANJO-CARB
59071-505
Unavailable
49
GASKET-BANJO BOLT
92065-078
Unavailable
50
SCREW PAN HEAD 4X6
220B0406
Unavailable
51
BUSHING,THRTLE SHAFT
92028-514
Unavailable
52
TERMINAL,CHOKE SHAFT
21169-3008
Unavailable
53
WASHER,PLAIN,6NYLON
92022-3020
Unavailable
54
CIRCLIP,5M/M,SUS304
92033-3004
Unavailable
