Description

Price

1

CABLE,STEERING

59406-3001

$350.44

2

NUT,20MM

92015-526

$29.72

3

WASHER

92022-535

$7.34

4

RING-SNAP

92036-501

Unavailable

5

O RING,11MM

670B2011

$1.28

6

CABLE,THROTTLE

54012-3001

$147.64

7

LEVER,THROTTLE

59126-509

Unavailable

8

PIN,THROTTLE

92043-3003

Unavailable

9

RING,SNAP

92036-518

$1.56

10

WASHER-PLAIN-SMALL,6MM

410S0600

$0.78

11

BAND,L=123

92072-030

$5.00

12

BRACKET,THROTTLE LEV

11034-3009

Unavailable

13

SCREW,PAN HEAD,6X25

220R0625

$3.53

14

WASHER-PLAIN-SMALL,6MM

410S0600

$0.78

15

CABLE,CHOKE

59401-3001

Unavailable

16

GASKET

92065-538

Unavailable

17

CLAMP,CHOKE CABLE

92037-544

Unavailable

18

WASHER-SPRING,6MM

461S0600

$1.07

19

WASHER-PLAIN,6MM

411S0600

$2.06

20

BOLT 6X12

110R0612

$1.75

21

BAND,L=123

92072-030

$5.00

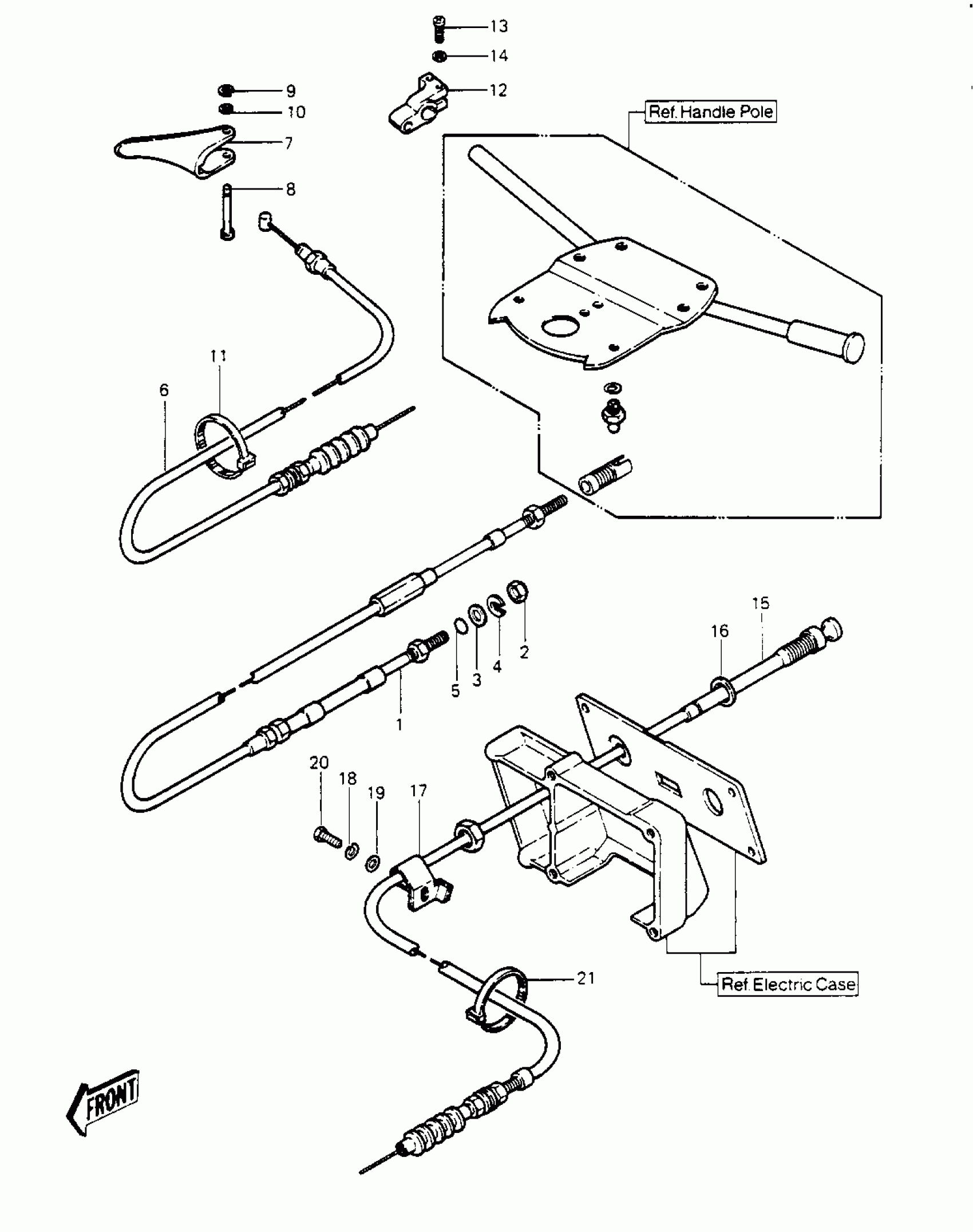

Kawasaki JS440 CABLES ('84-'86 JS440-A8/A9/A10) Diagram

CABLE,STEERING

NUT,20MM

WASHER

RING-SNAP

O RING,11MM

CABLE,THROTTLE

LEVER,THROTTLE

PIN,THROTTLE

RING,SNAP

WASHER-PLAIN-SMALL,6MM

BAND,L=123

BRACKET,THROTTLE LEV

SCREW,PAN HEAD,6X25

WASHER-PLAIN-SMALL,6MM

CABLE,CHOKE

GASKET

CLAMP,CHOKE CABLE

WASHER-SPRING,6MM

WASHER-PLAIN,6MM

BOLT 6X12

BAND,L=123
