Description

Price

10

GASKET

92065-538

Unavailable

11

CLAMP,CHOKE CABLE

92037-544

Unavailable

15

BAND,L=123

92072-030

$5.00

16

BOLT,6X12

92150-3709

Unavailable

1A

CABLE-STRG

59406-3709

$350.44

2

NUT,20MM

92015-526

$29.72

3

WASHER

92022-535

$7.34

4

RING-SNAP

92036-501

Unavailable

5

O RING,11MM

670B2011

$1.28

6A

CABLE-THROTTLE

54012-3721

$162.91

7

W-PLAIN-S,10MM

410S1000

$3.12

8

BAND,L=123

92072-030

$5.00

9A

CABLE-CHOKE

59401-3704

Unavailable

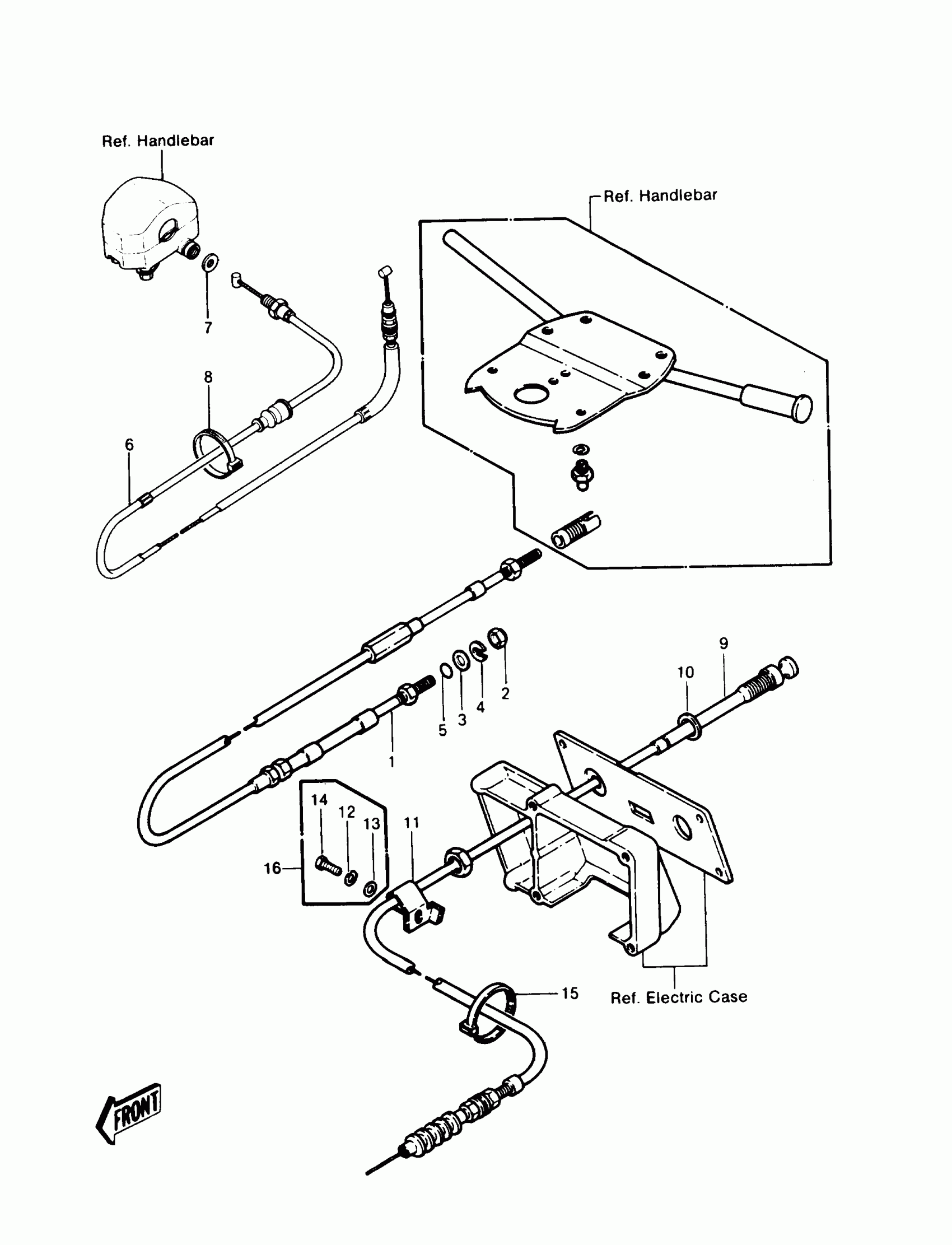

Kawasaki JS440 CABLES Diagram

GASKET

CLAMP,CHOKE CABLE

BAND,L=123

BOLT,6X12

CABLE-STRG

NUT,20MM

WASHER

RING-SNAP

O RING,11MM

CABLE-THROTTLE

W-PLAIN-S,10MM

BAND,L=123

CABLE-CHOKE
