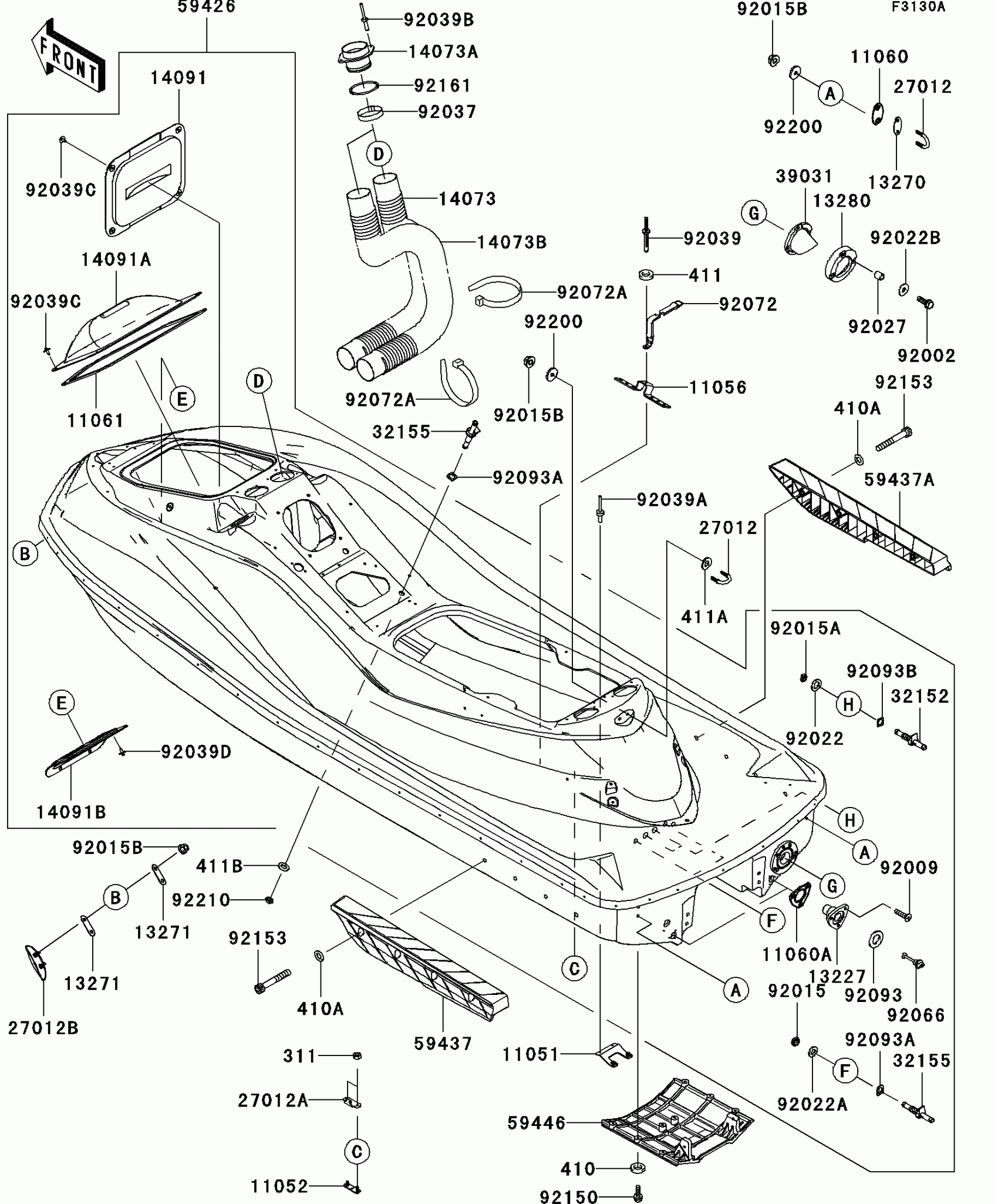

Kawasaki JET SKI® Ultra® LX Hull(GBF) Diagram

#

Description
Price

11051

BRACKET,BREATHER-BILGE

11051-3802

$11.76

11052

BRACKET,RR DUCT

11052-3712

$9.05

11056

BRACKET,WATER MUFFLER

11056-3722

$12.65

11060

GASKET,U HOOK,RR

11060-3800

$6.20

11060A

GASKET,DRAIN PLUG

11060-3801

$6.61

11061

GASKET,BATTERY COVER

11061-3754

$37.51

13227

HOUSING,DRAIN PLUG,F.BLACK

13227-3721-6Z

$7.98

13270

PLATE

13270-3860

$8.38

13271

PLATE

13271-3724

$4.31

13280

HOLDER,EXHAUST VALVE

13280-3718

$27.61

14073

DUCT,L=800

14073-3804

$22.96

14073A

DUCT

14073-3805

$6.67

14073B

DUCT,L=1000

14073-3836

$28.77

14091

COVER,ECU

14091-3786

$15.89

14091A

COVER,BATTERY

14091-3809

$26.37

14091B

COVER,STORAGE CASE

14091-3819

$10.58

27012

HOOK

27012-3797

$32.29

27012A

HOOK

27012-3816

$9.19

27012B

HOOK,BOW,F.BLACK

27012-3822-6Z

$36.98

32152

PIPE

32152-3749

$7.09

32155

PIPE,COOLING

32155-3702

$7.09

39031

CAP-END

39031-3704

$40.86

59426

HULL-COMP,J.WHITE

59426-3976-8C

Unavailable

59437

STABILIZER,LH,F.BLACK

59437-3741-6Z

Unavailable

59437A

STABILIZER,RH,F.BLACK

59437-3742-6Z

Unavailable

59446

COVER-JET PUMP

59446-3759

$181.95

92002

BOLT,6X20

92002-3755

$4.69

92009

SCREW,TAPPING,4X16

92009-3849

$1.59

92015

NUT,16MM

92015-1477

$8.10

92015A

NUT,20MM

92015-1589

$7.39

92015B

NUT,FLANGED,8MM

92015-1933

$3.92

92022

WASHER,20.3X36X2.3

92022-1116

$8.58

92022A

WASHER,17.3X30X2.3

92022-1903

$6.40

92022B

WASHER

92022-567

$2.67

92027

COLLAR,6.2X10X10

92027-3705

$8.86

92037

CLAMP

92037-3738

$6.89

92039

RIVET

92039-3741

$1.63

92039A

RIVET

92039-3755

$6.57

92039B

RIVET

92039-3775

$1.70

92039C

RIVET

92039-3785

$4.65

92039D

RIVET

92039-3788

$3.39

92066

PLUG,RR,DRAIN,F.BLACK

92066-3783-6Z

$17.50

92072

BAND,314X18

92072-3814

$17.91

92072A

BAND,L=608.22

92072-3884

$3.35

92093

SEAL

92093-3720

$3.62

92093A

SEAL

92093-3783

$3.87

92093B

SEAL

92093-3784

$3.89

92150

BOLT,SOCKET,6X18

92150-3775

$4.69

92153

BOLT,SOCKET,8X55

92153-3746

$11.00

92161

DAMPER

92161-3769

$3.87

92200

WASHER

92200-3779

$5.30

92210

NUT

92210-3707

$4.92

311

NUT-HEX,6MM

311R0600

$0.70

410

WASHER-PLAIN-SMALL,6MM

410S0600

$0.78

410A

WASHER-PLAIN-SMALL,8MM

410S0800

$2.58

411

WASHER-PLAIN,5MM

411S0500

$0.94

411A

WASHER-PLAIN,8MM

411S0800

$3.09

411B

WASHER-PLAIN

411S1600

$5.65
