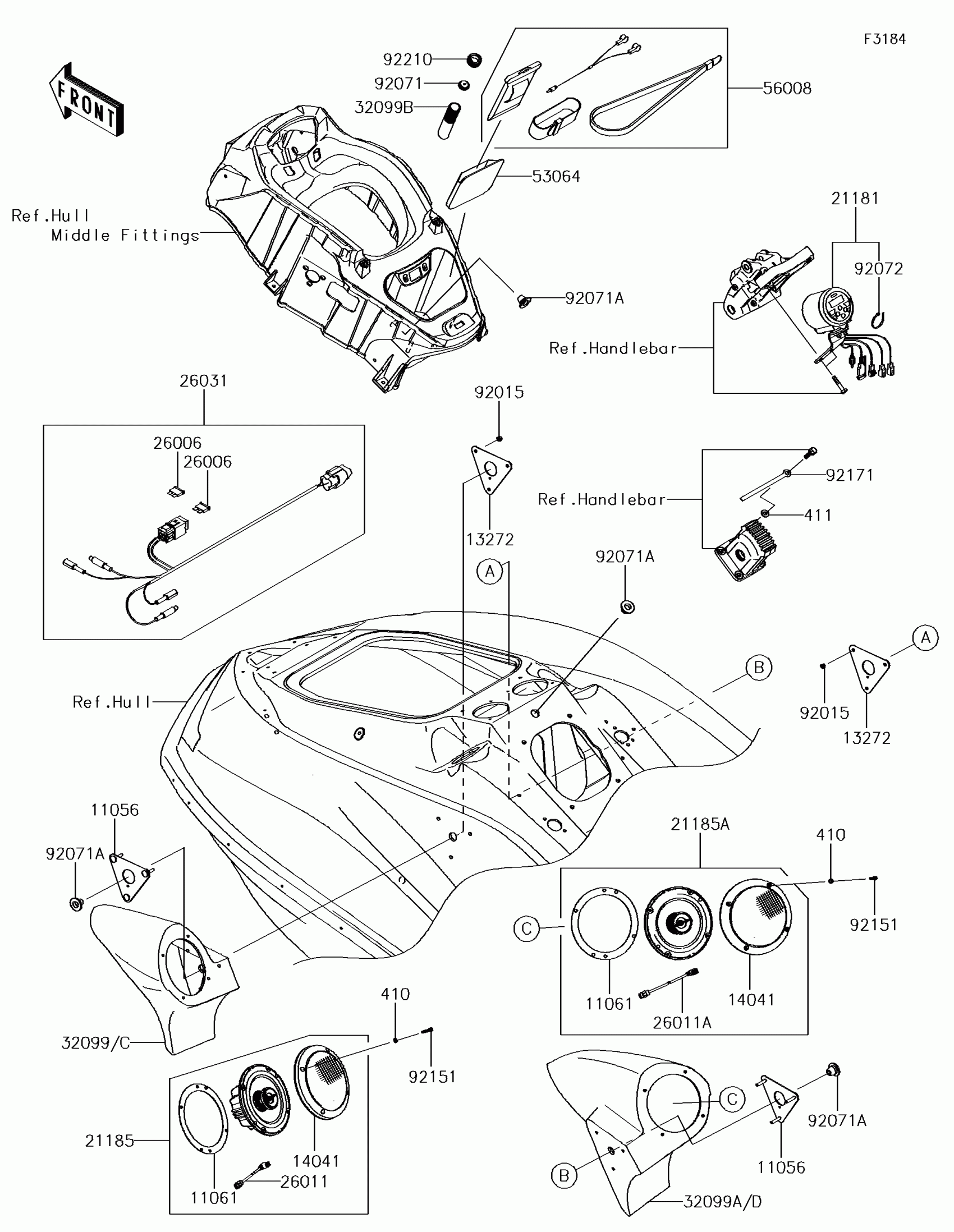

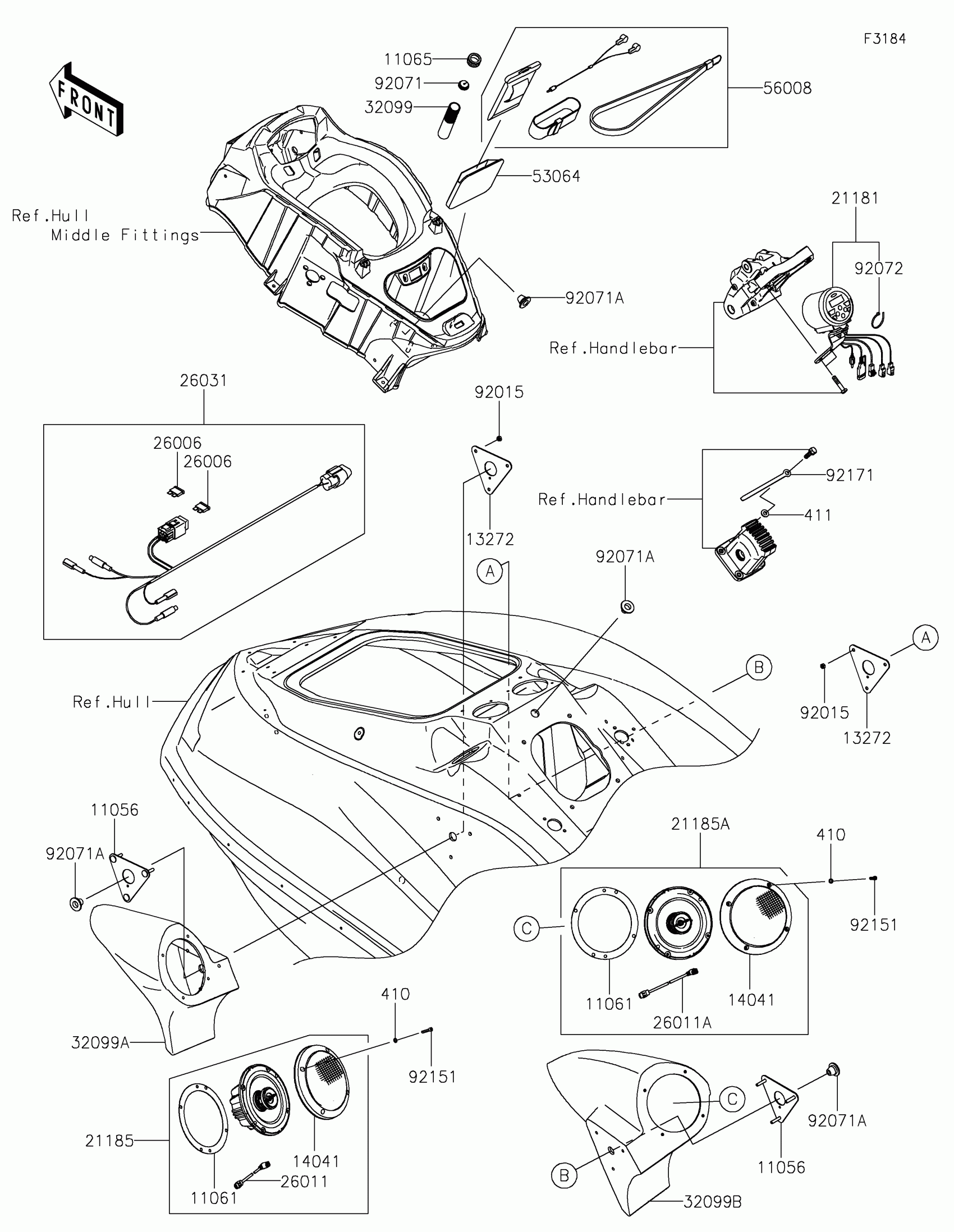

Kawasaki JET SKI® ULTRA® 310LX Other(Speaker) Diagram

Description

Price

11056

BRACKET,SPEAKER

11056-2493

$41.43

11061

GASKET

11061-0901

$14.76

11065

CAP

11065-1292

$7.10

13272

PLATE,SPEAKER

13272-1703

$31.77

14041

COVER-COMP

14041-0582

$203.19

21181

AMPLIFIER,WATERPROOF

21181-0011

$647.35

21185

SPEAKER,LH

21185-0002

$225.05

21185A

SPEAKER,RH

21185-0003

$225.05

26006

FUSE,MINI BLADE,10A,RED

26006-0009

Unavailable

26011

WIRE-LEAD,YELLOW

26011-0849

$54.58

26011A

WIRE-LEAD,L.GRAY

26011-0850

$54.58

26031

HARNESS,AUDIO

26031-1574

$55.64

32099

CASE,USB

32099-0751

$80.00

32099A

CASE,SPEAKER,LH,EBONY

32099-0796-H8

$910.54

32099B

CASE,SPEAKER,RH,EBONY

32099-0797-H8

$910.54

410

W-PLAIN-S,5MM

410S0500

$1.59

411

WASHER-PLAIN,8MM

411S0800

$3.09

53064

NET-CARGO

53064-0013

$43.17

56008

BAG,WATERPROOF MUSIC

56008-0042

$86.25

92015

NUT,LOCK,6MM

92015-3766

$5.91

92071

GROMMET,USB OUTLET

92071-0734

$11.40

92071A

GROMMET

92071-3826

$3.64

92072

BAND,L=188.85

92072-0105

$1.73

92151

BOLT,SOCKET,5X25

92151-3709

$2.67

92171

CLAMP,L=150

92171-3717

$7.75
