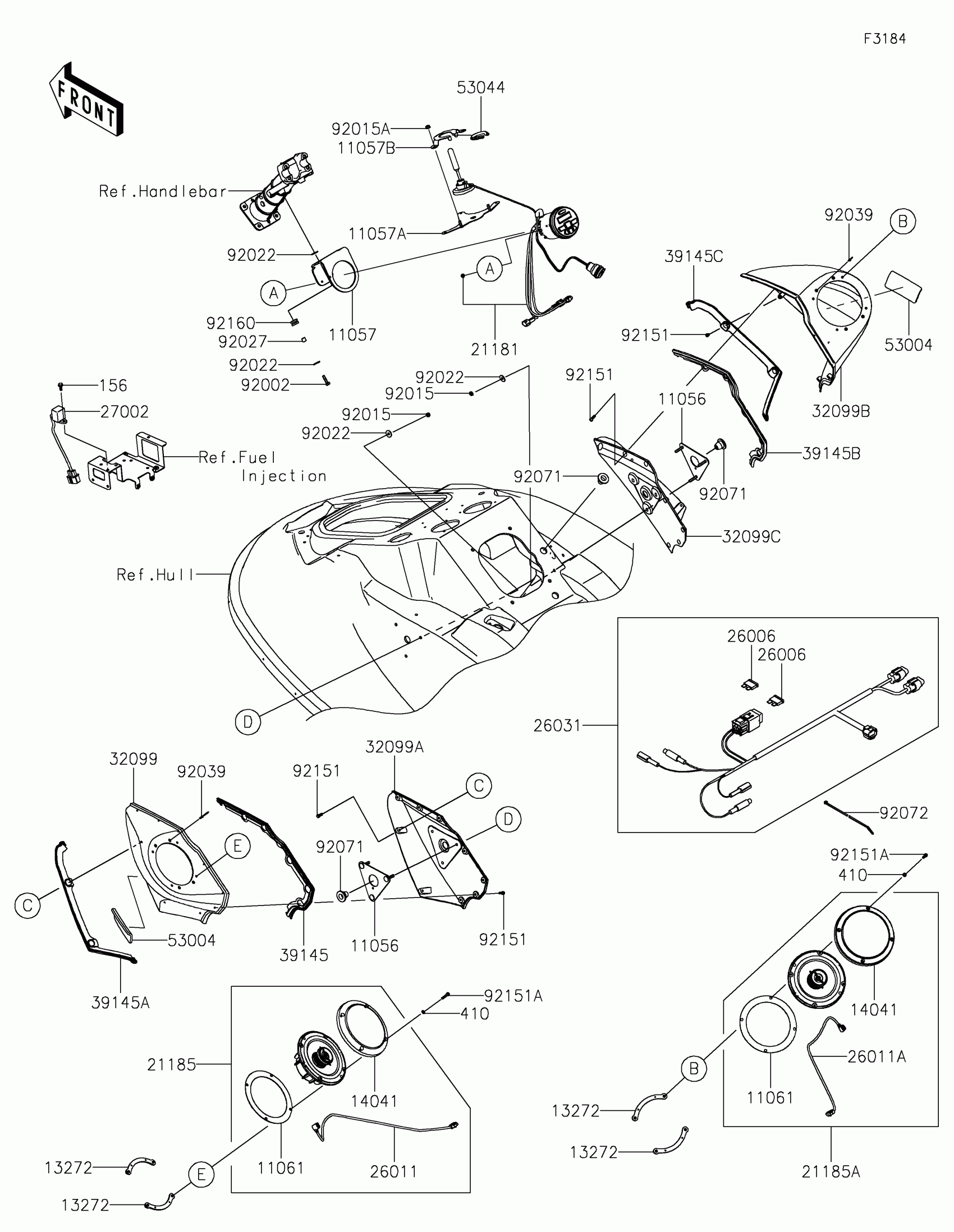

Kawasaki JET SKI® STX®160LX Other(Speaker) Diagram

#

Description
Price

11056

BRACKET,SPEAKER

11056-2493

$41.43

11057

BRACKET,AMP

11057-2591

$43.51

11057A

BRACKET

11057-4154

$48.46

11057B

BRACKET

11057-4155

$20.86

11061

GASKET

11061-0901

$14.76

13272

PLATE,SPEAKER

13272-2961

$13.13

14041

COVER-COMP

14041-0617

$177.34

156

BOLT-WP,6X16

156R0616

$3.65

21181

AMPLIFIER

21181-0017

$653.39

21185

SPEAKER,LH

21185-0012

$199.91

21185A

SPEAKER,RH

21185-0013

$199.91

26006

FUSE,MINI BLADE,10A,RED

26006-0009

Unavailable

26011

WIRE-LEAD,YELLOW

26011-0849

$54.58

26011A

WIRE-LEAD,L.GRAY

26011-0850

$54.58

26031

HARNESS,AUDIO

26031-2617

$69.04

27002

RELAY-ASSY

27002-3703

$51.63

32099

CASE,SPEAKER,OUTER,LH,S.BLACK

32099-0801-839

$83.12

32099A

CASE,SPEAKER,INNER,LH,S.BLACK

32099-0802-839

$24.49

32099B

CASE,SPEAKER,OUTER,RH,S.BLACK

32099-0803-839

$83.12

32099C

CASE,SPEAKER,INNER,RH,S.BLACK

32099-0804-839

$24.49

39145

TRIM-SEAL,UPP

39145-0721

$18.40

39145A

TRIM-SEAL,LWR

39145-0722

$18.03

39145B

TRIM-SEAL,UPP

39145-0723

$18.40

39145C

TRIM-SEAL,LWR

39145-0724

$18.03

410

W-PLAIN-S,5MM

410S0500

$1.59

53004

MAT

53004-0614

$2.46

53044

TRIM,L=120

53044-1171

Unavailable

92002

BOLT,6X25

92002-3714

$5.00

92015

NUT,LOCK,6MM

92015-3766

$5.91

92015A

NUT,6MM

92015-3767

$4.69

92022

WASHER,6.5X20X1.5

92022-3710

$3.65

92027

COLLAR,6.2X10X10

92027-3705

$8.86

92039

RIVET,3.2X8

92039-3763

$1.81

92071

GROMMET

92071-3826

$3.64

92072

BAND,L=188.85

92072-0105

$1.73

92151

BOLT,SOCKET,5X14

92151-1581

$1.83

92151A

BOLT,SOCKET,5X25

92151-3709

$2.67

92160

DAMPER,10X20X12

92160-1167

$4.69
