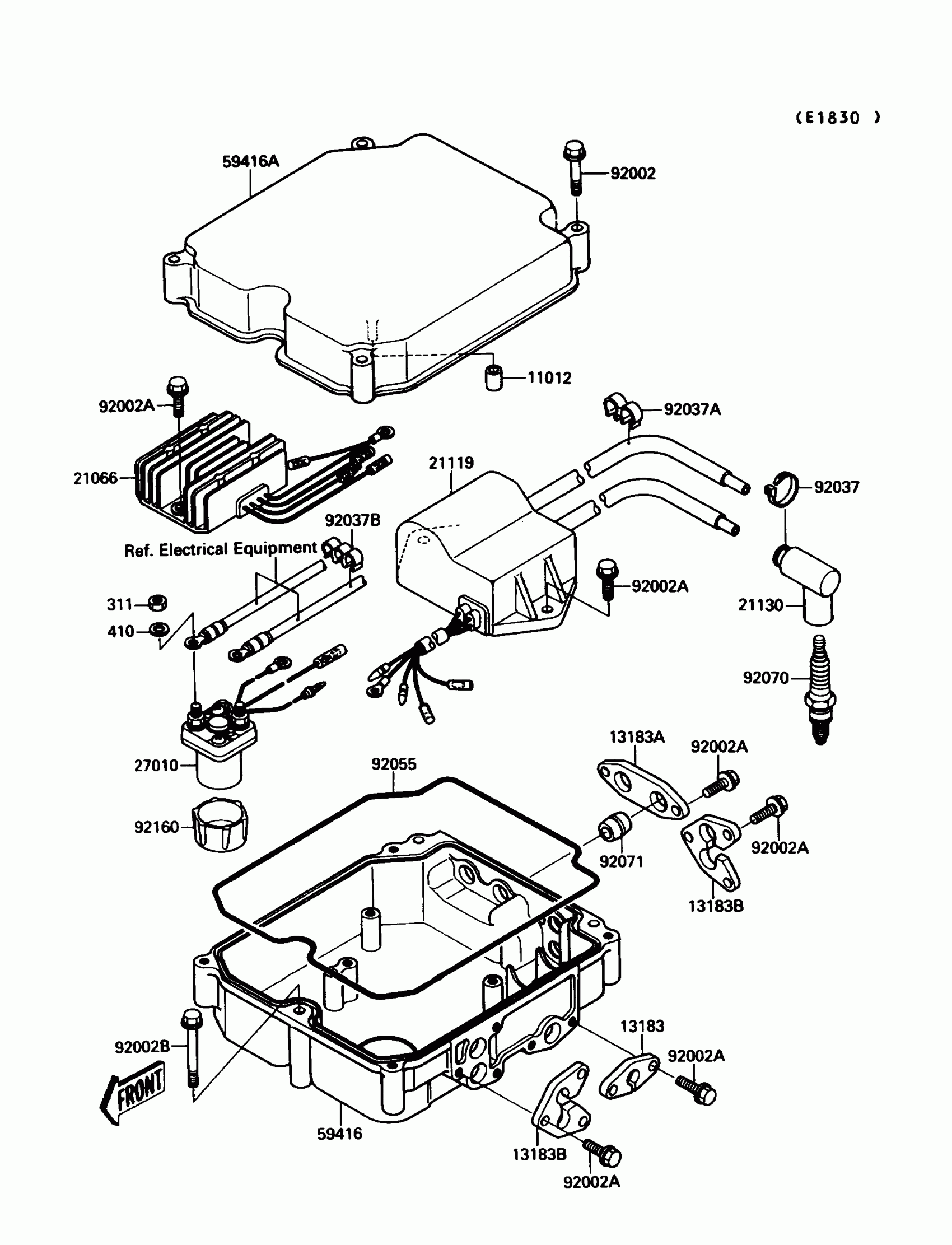

Kawasaki Jet Mate Ignition System Diagram

Description

Price

11012

CAP

11012-3734

Unavailable

13183

PLATE

13183-3712

Unavailable

13183A

PLATE

13183-3730

Unavailable

13183B

PLATE

13183-3737

Unavailable

21066

REGULATOR-VOLTAGE

21066-3706

Unavailable

21119

IGNITER

21119-3710

Unavailable

21130

CAP-SPARK PLUG

21130-1062

$29.85

27010

SWITCH,STARTER RELAY

27010-3714

$157.32

59416

CASE-ELECTRIC

59416-3718

$95.67

59416A

CASE-ELECTRIC

59416-3719

$79.11

92002

BOLT,6X35

92002-3715

$6.61

92002A

BOLT,6X20

92002-3755

$4.69

92002B

BOLT,6X55

92002-3772

Unavailable

92037

CLAMP

92037-1173

$3.49

92037A

CLAMP,HOSE

92037-1603

$5.00

92037B

CLAMP,CABLE

92037-1697

$7.62

92055

RING-O,ELECTRIC CASE

92055-3715

$28.69

92070

PLUG-SPARK,BR7ES(NGK)

92070-3701

Unavailable

92071

GROMMET

92071-3756

$4.46

92160

DAMPER

92160-3729

Unavailable

311

NUT-HEX,6MM

311R0600

$0.70

410

WASHER-PLAIN-SMALL,6MM

410S0600

$0.78
