- Partiron
- OEM Parts
- Sea-doo
- Watercraft
- 2024
- 005 - RXT Series
- 002 - RXT X 325 - International, 2024
- International - RXT X 325 - 10RB - X package - Fiery Red Metallic - Audio,2024
03- Mechanic - Steering

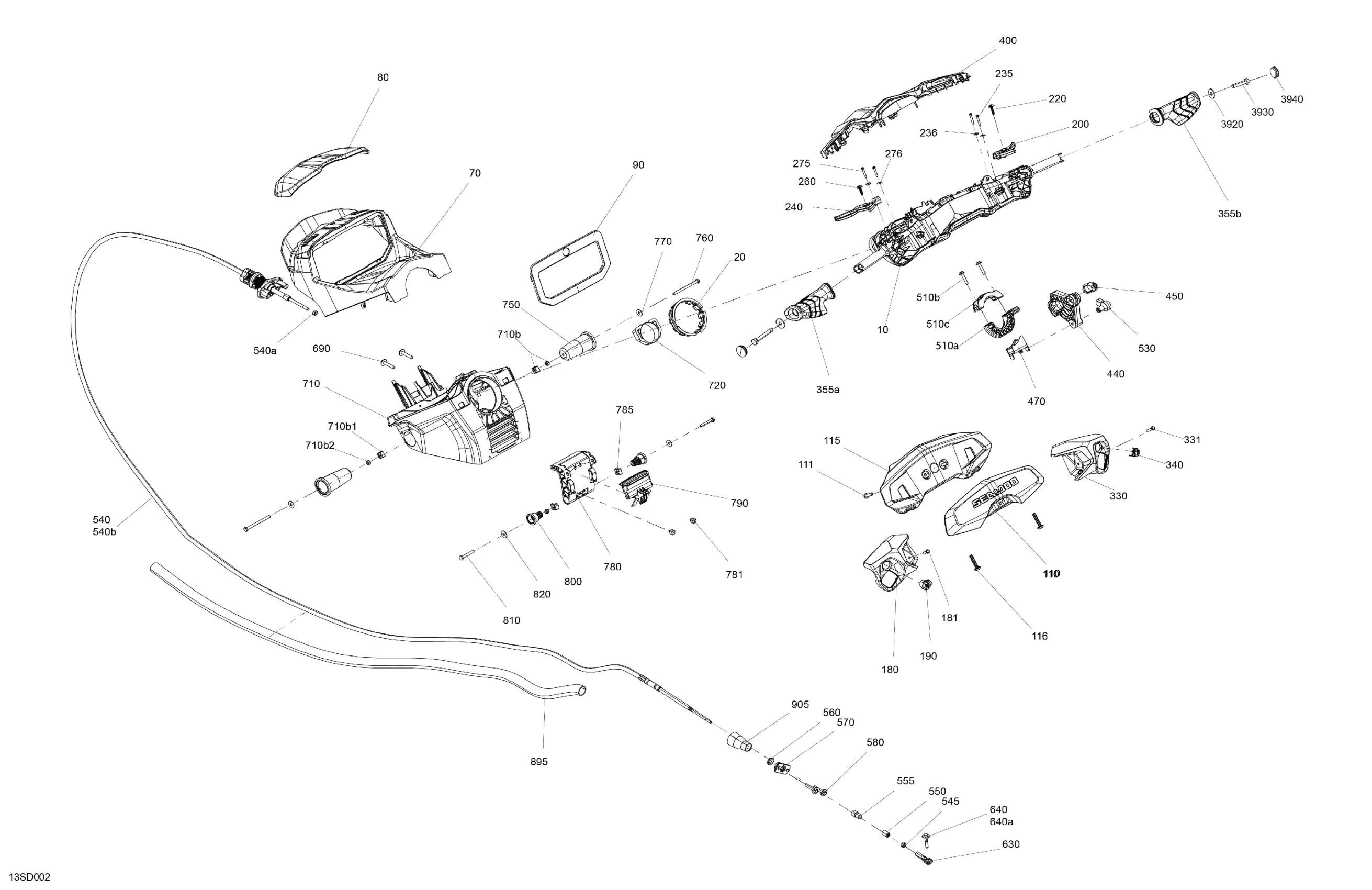

Sea-doo International - RXT X 325 - 10RB - X package - Fiery Red Metallic - Audio,2024 03- Mechanic - Steering Diagram
#
10
Steering Column
277002134
$209.99
20
Wear Ring
277001874
$12.17
70
Gauge Support
277002198
$45.99
80
Cluster Cover
277002160
$28.99
90
Speed Gauge Trim
705015381
$22.49
110
Deep Black, Steering Pad
277002025
$91.99
111
Hex. Screw 10-14 X 7/8”
211000023
$3.59
115
Steering Pad Support
277002317
$20.99
116
Plastite Screw Torx Cone HD.M6.81X3
250001138
$2.30
180
LH Cover
277002233
$18.99
181
Hex. Screw 10-14 X 7/8”
211000023
$3.59
190
Red Button Switch
277002327
$9.21
200
Hand Lever Accelerator
277002138
$38.99
220
Flange Screw Plastite #10, 14 X 7/8"
250001087
$3.49
235
Hex. Flange Screw K40 X 25
241142560
$2.64
236
Flat Washer 4 mm, Stainless
234042600
$1.15
240
Reverse Handle
277001945
$43.99
260
Flange Screw Plastite #10, 14 X 7/8"
250001087
$3.49
275
Hex. Flange Screw K40 X 25
241142560
$2.64
276
Flat Washer 4 mm, Stainless
234042600
$1.15
330
RH Cover
277002234
$17.99
331
Hex. Screw 10-14 X 7/8”
211000023
$3.59
340
Button Switch
277002320
$9.00
355a
Deep Black, LH Handle Grip
277001958
$20.99
355b
Deep Black, RH Handle Grip
277001946
$20.99
400
Steering Cover
277001985
$68.99
440
Steering Arm Kit
295501183
$10.99
450
Steering Arm Kit
295501183
$10.99
470
Spacer
277001654
$15.99
510a
Steering Arm Kit
295501183
$10.99
510b
Hexagonal Cap Screw M6 X35
250000399
$4.44
510c
C Clamp
277002085
$9.19
530
End Fitting Cable
277002119
$20.99
540
Steering Cable | Includes 540 to 540b
277002448
$275.49
540a
Hex. Nut 1/4"-28
211100056
$0.69
540b
Wiper Rod
277001582
$11.11
545
Hex. Nut 1/4"-28
211100056
$0.69
550
Wiper Rod
277001582
$11.11
555
End Piece
277001583
$14.49
560
Rubber Washer
293830063
$1.90
570
Ring Halves
277001856
$12.99
580
Hexagonal Cap Screw M6 X35
250000399
$4.44
630
Ball Joint
277000775
$51.99
640
Hex Sems Screw M6X35
250000970
$2.11
640a
Hex Screw SEMS M6X35, SS
250000969
$2.11
690
Hexagonal Cap Screw M6 X35
250000399
$4.44
710
Steering Column Support Ass'y | Includes 710 to 710b2
277002158
$114.99
710b
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
710b1
M6 Nut Housing Ass'y | Includes 290 to 290b
269500252
$7.86
710b2
Elastic Stop Nut M6, Brass
232561200
$4.23
720
Wear Ring
277002318
$15.99
750
Steering Support Pivot
277001605
$20.99
760
Hex Screw M6 X 80
207168060
$6.77
770
Flat Washer M6, Stainless
234062600
$0.77
780
Adjustment Handle
277001996
$10.38
781
Rubber Bumper
293830005
$8.09
785
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
790
Lock
277002010
$6.49
800
Pivot
277001652
$15.99
810
Hex. Screw M6 X 40
207064060
$1.69
820
Flat Washer M6, Stainless
234062600
$0.77
895
Corrugated Sheath 22MM - 1250MM
276000520
$26.49
905
Rope Guide
277002150
$0.93
3920
Flat Washer M6, Stainless
234062600
$0.77
3930
Hex. Screw M6 x 45, Scotch Grip
207364560
$1.89
3940
Black, Cap
277000203
$9.39
