03- Mechanic - Steering

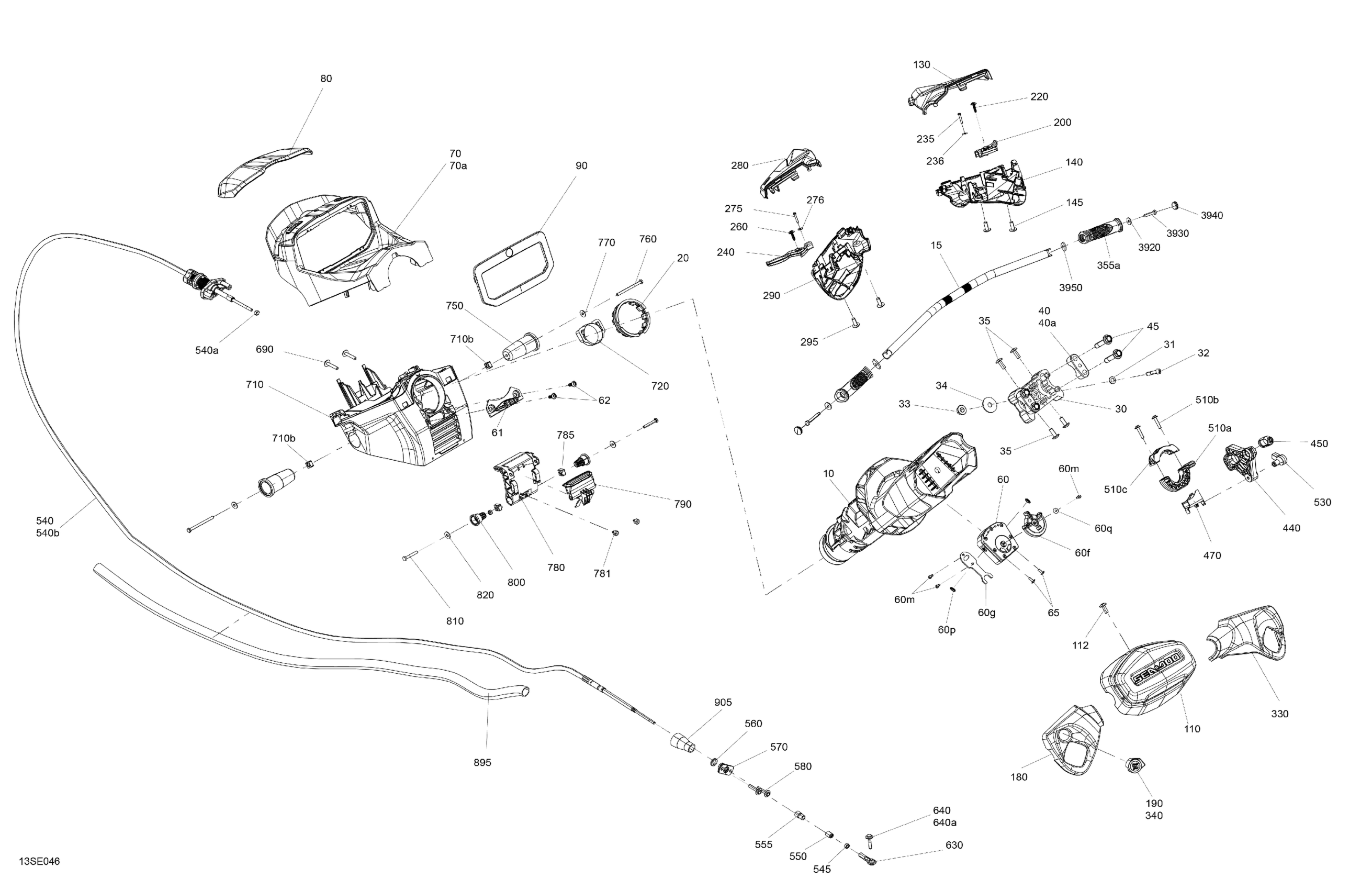

Sea-doo International - RXT - 325 - X - 22SB - Ice Metal - Audio, 2025 03- Mechanic - Steering Diagram
#
10
Steering Column
277002416
$239.99
15
Deep Black, Handlebar
277002180
$103.99
20
Wear Ring
277001874
$12.17
30
Anodized Lower Handlebar Support
277002231
$65.99
31
Flat Washer M8, Stainless
234080600
$1.48
32
Socket Head Screw M8 X 30, Scotch Grip
205583060
$3.79
33
Hex. Flange Nut M8
233181600
$1.05
34
Flat Washer 8 mm, Stainless
250200175
$3.06
35
Torx Truss Screw M6 X 16
250000922
$1.90
40
Steering Support | Includes 40 to 40a
506152751
$13.99
40a
Steering Support | Includes 40 to 40a
506152751
$13.99
45
Hex. Screw Flange DIN.6921 S.Grip
250000834
$3.91
60
Damper | Includes 70 to 70q
506153381
$279.99
60f
Suspension Adjuster
277002226
$18.49
60g
Arm
277002427
$9.19
60m
Socket Head Screw M4 X 16
250001237
$10.49
60p
Sealing Washer
250200114
$4.44
60q
Flat Washer 4 mm, Stainless
234042600
$1.15
61
Damper Support
277002265
$5.09
62
Plastite Torx Screw Cone HD.M6.81X2
250001171
$6.29
65
Torx Truss Screw M6 X 16
250000922
$1.90
70
Gauge Support | Includes 70 to 70a
277002417
$43.99
70a
Gauge Support
277002198
$45.99
80
Cluster Cover
277002160
$28.99
90
Speed Gauge Trim
705015381
$22.49
110
Steering Pad
277002229
$28.99
112
Torx Truss Screw M6 X 16
250000922
$1.90
130
RH Upper Housing
277002040
$109.99
140
RH Lower Housing
277002036
$104.99
145
Torx Truss Screw M6 X 16
250000922
$1.90
180
LH Cover
277002314
$18.99
190
Red Button Switch
277002327
$9.21
200
Hand Lever Accelerator
277002138
$38.99
220
Flange Screw Plastite #10, 14 X 7/8"
250001087
$3.49
235
Hex. Flange Screw K40 X 25
241142560
$2.64
236
Flat Washer 4 mm, Stainless
234042600
$1.15
240
Reverse Handle
277001945
$43.99
260
Flange Screw Plastite #10, 14 X 7/8"
250001087
$3.49
275
Hex. Flange Screw K40 X 25
241142560
$2.64
276
Flat Washer 4 mm, Stainless
234042600
$1.15
280
LH Upper Housing
277002041
$109.99
290
LH Lower Housing
277002035
$104.99
295
Torx Truss Screw M6 X 16
250000922
$1.90
330
RH Cover
277002316
$18.99
340
Button Switch
277002320
$9.00
355a
Handlebar Grip
277002286
$19.99
440
Steering Arm Kit
295501183
$10.99
450
Steering Arm Kit
295501183
$10.99
470
Spacer
277001654
$15.99
510a
Arm
277001987
$10.99
510b
Hexagonal Cap Screw M6 X35
250000399
$4.44
510c
C Clamp
277002085
$9.19
530
End Fitting Cable
277002119
$20.99
540
Steering Cable | Includes 540 to 540b
277002448
$275.49
540a
Hex. Nut 1/4"-28
211100056
$0.69
540b
Wiper Rod
277001582
$11.11
545
Hex. Nut 1/4"-28
211100056
$0.69
550
Wiper Rod
277001582
$11.11
555
End Piece
277001583
$14.49
560
Rubber Washer
293830063
$1.90
570
Ring Halves
277001856
$12.99
580
Hexagonal Cap Screw M6 X35
250000399
$4.44
630
Ball Joint
277000775
$51.99
640
Hex Sems Screw M6X35
250000970
$2.11
640a
Hex Screw SEMS M6X35, SS
250000969
$2.11
690
Hexagonal Cap Screw M6 X35
250000399
$4.44
710
Steering Column Support Ass'y | Includes 710 to 710b
277002307
$114.99
710b
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
720
Wear Ring
277002318
$15.99
750
Steering Support Pivot
277001605
$20.99
760
Hex Screw M6 X 80
207168060
$6.77
770
Flat Washer M6, Stainless
234062600
$0.77
780
Adjustment Handle
277001996
$10.38
781
Rubber Bumper
293830005
$8.09
785
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
790
Lock
277002010
$6.49
800
Pivot
277001652
$15.99
810
Hex. Screw M6 X 40
207064060
$1.69
820
Flat Washer M6, Stainless
234062600
$0.77
895
Corrugated Sheath 22MM - 1250MM
276000520
$26.49
905
Rope Guide
277002150
$0.93
3920
Flat Washer M6, Stainless
234062600
$0.77
3930
Hex. Screw M6 X 30, Scotch Grip
250000002
$0.92
3940
Black, Cap
277000203
$9.39
3950
Insert Grip Handle
277001863
$8.83
