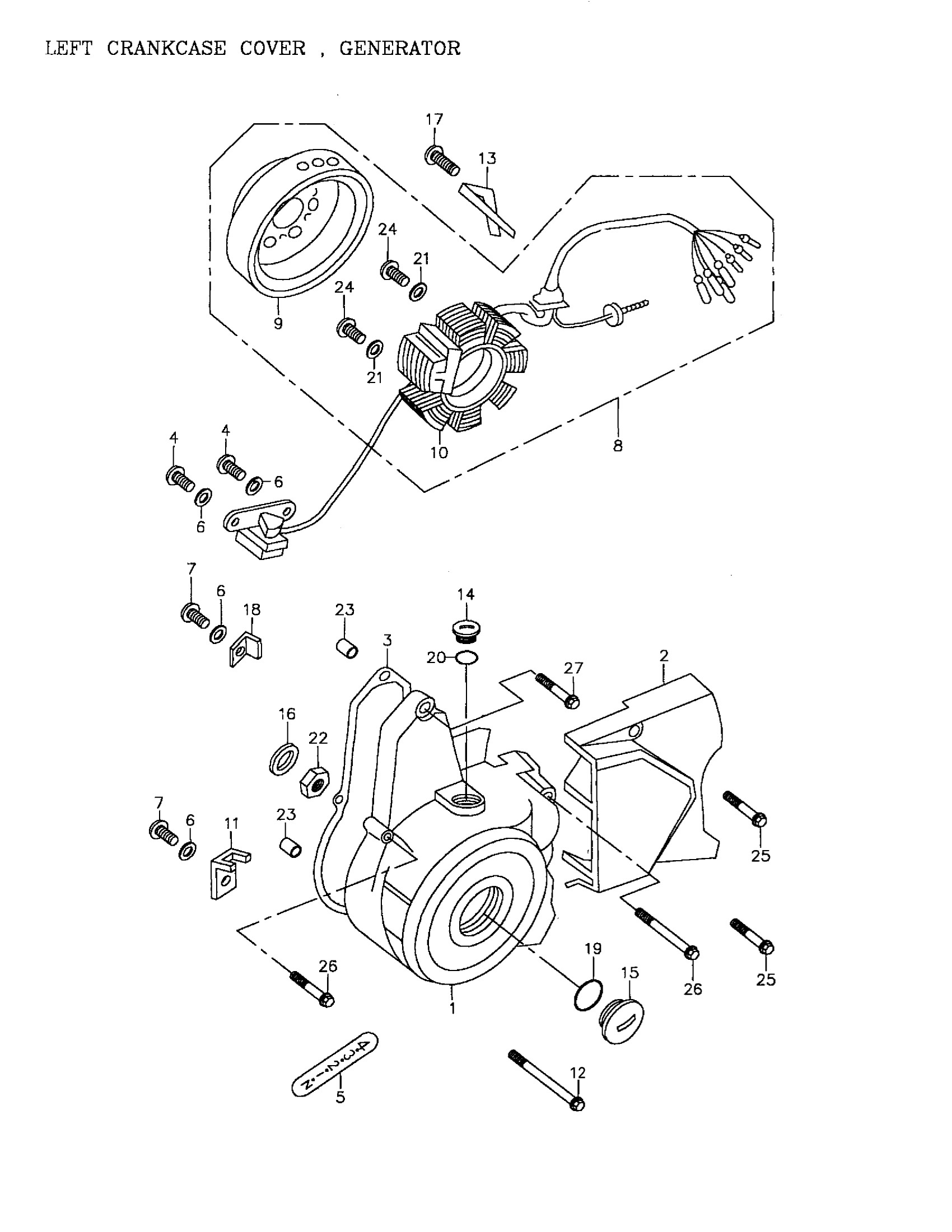

Can-Am Mini DS 90 4-strokes, 2005 01- Left Crankcase Cover, Generator Diagram

#

Description
Price

1

LH Crankcase Cover

A11341152000

Unavailable

2

LH CRANKCASE REAR COVER - Call your local BRP dealership

A11361152000

Unavailable

3

LH COVER GASKET - Call your local BRP dealership

A11359152000

Unavailable

4

Pan Head Phillips Bolt M5 X 10

A9350005010

Unavailable

5

Shaft Sticker

A87710152000

Unavailable

6

Spring Washer, 5 X 8 X 1

A941110508010

Unavailable

7

Pan Head Phillips Bolt M5 X 8

A9350005008

Unavailable

8

A.C. Generator Ass'y

A31100152000

Unavailable

9

Fly Wheel Comp.

A31110152000

Unavailable

10

STATOR COMP - Call your local BRP dealership

A31120152000

Unavailable

11

Wire Bracket 2

A32963152000

Unavailable

12

Pan Head Phillips Bolt M6 X 70

A9100006070

Unavailable

13

A.C. Generator Cord Clamper

A32961152000

Unavailable

14

A.C. Generator Cap, 14 mm

A90084108000

Unavailable

15

A.C. GENERATOR CAP 30MM - Call your local BRP dealership

A90087108000

Unavailable

16

Plain Washer

A941051225023

Unavailable

17

Pan Head Phillips Bolt M6 X 12

A9350006012

Unavailable

18

Wire Bracket 1

A32962152000

Unavailable

19

OIL-RING - Call your local BRP dealership

A91327120000

Unavailable

20

Oil Ring

A91313108000

Unavailable

21

Spring Washer, 6 X 10 X 1.5

A941110610015

Unavailable

22

HEX.FLANGE NUT WITH SERRATION M10 - Call your local BRP dealership

A9405010000

Unavailable

23

DOWEL PIN - Call your local BRP dealership

A9430108120

Unavailable

24

Pan Head Phillips Bolt M6 X 16

A9350006016

Unavailable

25

Hex. Socket Bolt M6 X 28

A9100006028

Unavailable

26

Hex. Socket Bolt M6 X 50

A9100006050

Unavailable

27

Hex. Socket Bolt M6 X 32

A9100006032

Unavailable
